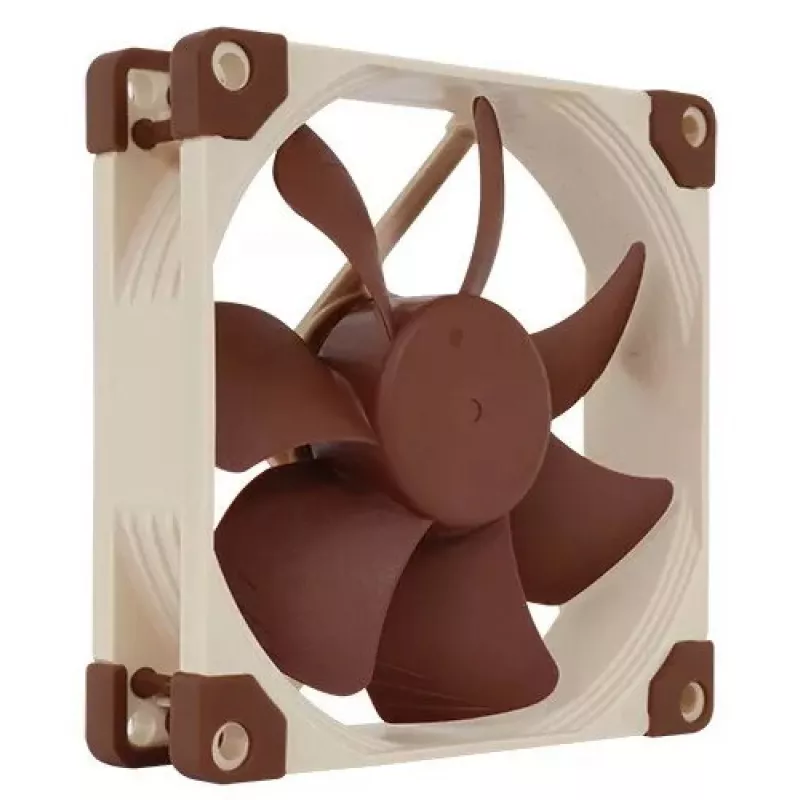

Noctua NF-A9 FLX počítačový chladiaci systém skriňový ventilátor 9,2 cm béžová, hnedá

The Noctua NF-A9 FLX is a premium 92 mm computer case fan engineered for quiet, efficient cooling. It builds on Noctua's aerodynamic expertise with an Advanced Acoustic Optimisation (AAO) frame, Flow Acceleration Channels and other refinements to deliver improved static pressure and a superior airflow-to-noise ratio compared to its predecessor. The FLX version includes Low-Noise and Ultra-Low-Noise adapters that provide three speed settings (1600 / 1250 / 1050 rpm) so the fan can be adjusted for higher ventilation performance or near-silent operation.

Advantages

The NF-A9 FLX combines flow-optimised blade geometry and AAO frame features to reduce vortex and intake noise while increasing efficiency. Integrated extra-soft silicone anti-vibration pads minimise vibration transmission without affecting compatibility with standard mounting systems. The refined SSO2 bearing and Smooth Commutation Drive 2 ensure very smooth rotation, high stability and long service life. Fully sleeved cables and included extension simplify installation and cable management.

Suitable for

• Case cooling in small or compact PC builds
• Cooling for heatsinks or radiators where a 92 mm fan is required
• Quiet workstation or home PC setups where low noise is important
• Systems that require adjustable fan speed for balance between airflow and acoustics

Key specifications

• Size: 92 × 92 × 25 mm
• Rated voltage: 12 V
• Speed settings (via adapters): 1600 / 1250 / 1050 rpm
• Measured static pressure: 1.62 mmH2O
• MTBF: >150,000 hours
• Connector and cabling: short 20 cm sleeved primary cable + 30 cm sleeved extension
• Colour: beige / brown

How to use

Install the NF-A9 FLX into a compatible 92 mm mounting location using the provided screws or standard mounting hardware. Choose the desired acoustics/performance profile by attaching either no adapter (1600 rpm) or the supplied Low-Noise / Ultra-Low-Noise adapters for 1250 rpm or 1050 rpm. Connect the fan to a 3-pin header or voltage-controlled circuit at 12 V; use the supplied extension cable if additional reach is required. Ensure the airflow direction matches your case cooling layout before powering the system.

Recommendations

For best results, position the NF-A9 FLX so it complements case airflow (intake or exhaust) and pair it with appropriate fan curves or a fan controller to fine-tune RPMs for the desired balance between cooling and noise. Regularly check and clean fan blades and anti-vibration pads to maintain performance.
