Obložová doska Rittal VX 8660.032 čierna oceľ hĺbka 500 mm výška 100 mm

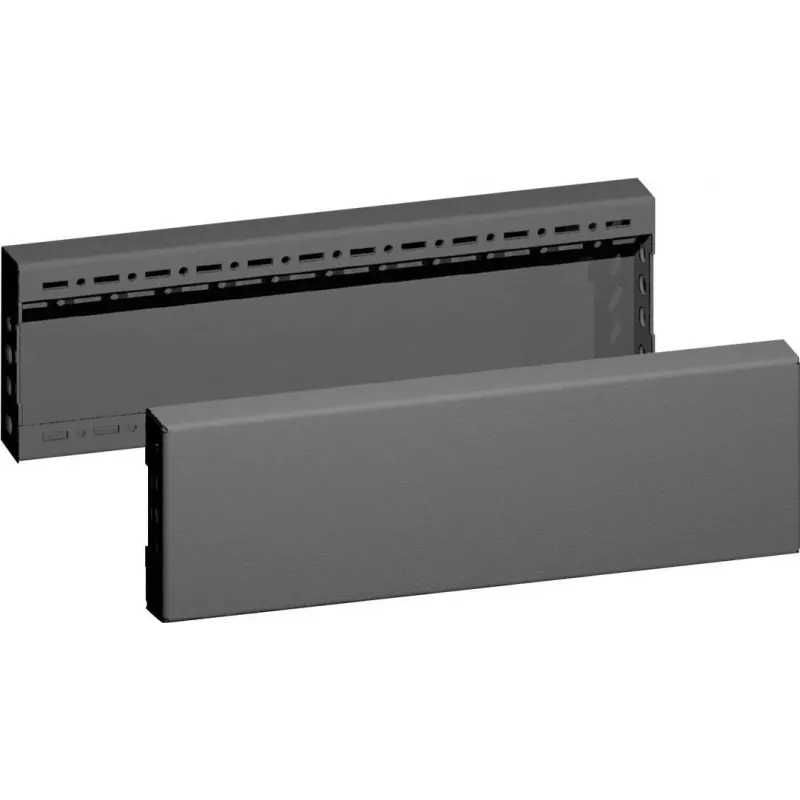

The Rittal VX 8660.032 trim panel is a 100 mm high, 500 mm deep black steel panel designed to finish the side of a base/plinth unit or to add stability and interior configuration options for bayed base/plinths. Sold in packs of two and weighing 1.16 kg per panel, it fits 200 mm high base/plinths where either one 200 mm high or two 100 mm high trim panels can be used.

Advantages

The trim panel provides a durable steel finish that matches Rittal VX base/plinth systems, offers additional mechanical stability for bayed installations, and allows flexible interior layout by permitting use of one or two panels to achieve required heights. Its black finish ensures a consistent appearance with compatible enclosures.

Suitable for

Key specifications

How to use

Fit the trim panel to the side of a 200 mm high Rittal VX base/plinth unit by aligning the panel with the plinth mounting points and securing it according to the Rittal assembly instructions. For a 200 mm finishing height, install either one 200 mm trim panel or stack two 100 mm panels. Ensure fasteners are tightened to the recommended torque and that panels are flush with adjacent units to maintain stability and appearance.

Recommendations

Use panels of the same finish and compatible dimensions when connecting multiple base/plinth units to preserve structural integrity and a uniform external appearance; follow Rittal's mounting guidelines and safety instructions during installation.
