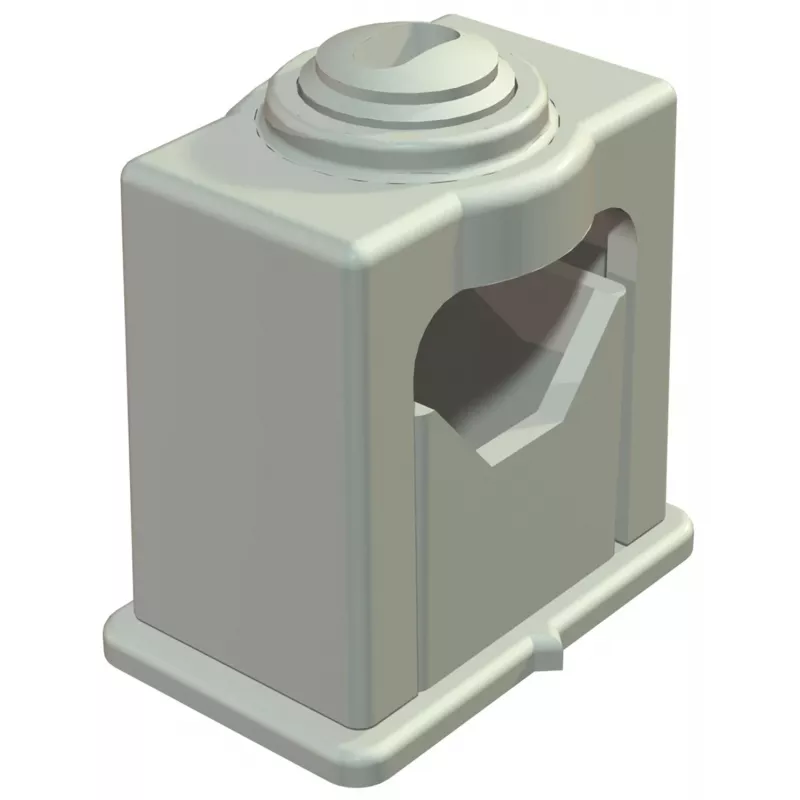

OBO Bettermann 3041 izolačná upínacia svorka 16-24mm svetlosivá 2105039

Securing cables, conduits, and pipes with a firm grip while maintaining electrical insulation can be a challenge in many installations. The OBO Bettermann 3041 insulating grip clamp solves this by providing a reliable, halogen-free and silicone-free clamping solution for diameters from 16 to 24 mm.

Who is it for

Electricians, panel builders, and maintenance technicians who need a durable, UV-stabilised clamp for indoor and outdoor use. It is suitable for fixing single cables, conduits, or pipes to walls, ceilings, or mounting plates.

Main features

• Clamping diameter range: 16 - 24 mm
• Material: Polyamide (PA), halogen-free and silicone-free
• Colour: Light grey (RAL 7035)
• UV-stabilised for outdoor use
• Temperature resistance: -20 to +85 °C
• Mounting via M6 screw (hole diameter 6.5 mm)

Specifications

• Product type: Insulating grip clamp
• Series: 3041
• Material: Polyamide (PA)
• Colour: Light grey
• Clamping diameter range: 16 - 24 mm
• Mounting type: Screw mounting
• Mounting hole diameter: 6.5 mm
• Halogen-free: Yes
• Silicone-free: Yes
• UV-stabilised: Yes
• Temperature resistance: -20 to +85 °C
• Impact resistance: IK07
• Flammability class: V-2 according to UL 94

Tips

For a secure installation, use an M6 screw and ensure the mounting surface is flat. The clamp can be used in both indoor and outdoor environments thanks to its UV stabilisation.
