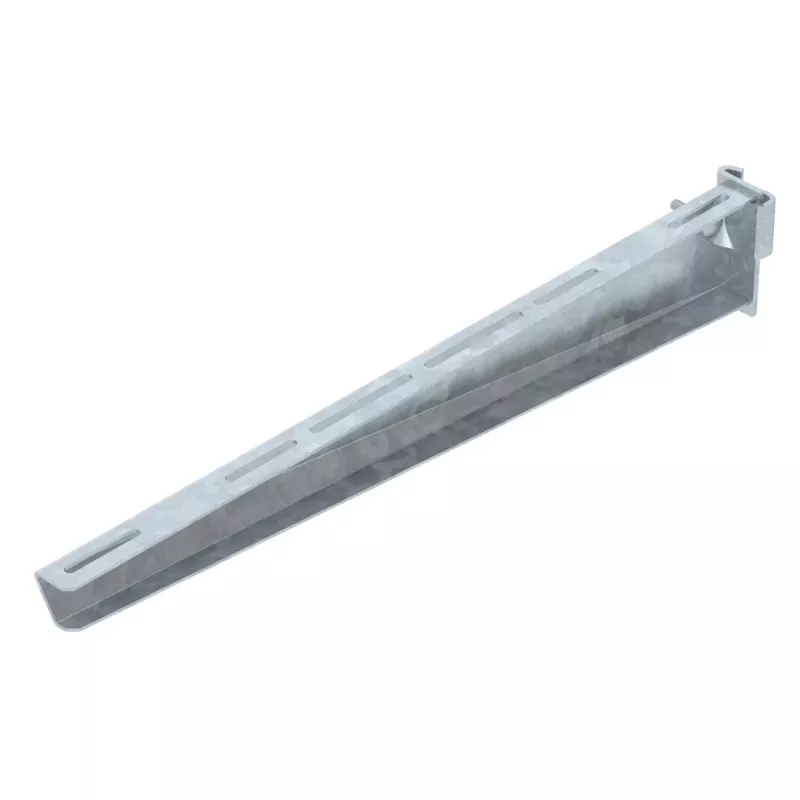

OBO BETTERMANN AS 30 konzolové rameno 610mm žiarovo pozinkovaná oceľ 6419412

With a permissible load of 0.8 kN at the arm end, this 610 mm cantilever arm is built for demanding cable management installations.

Overview

The OBO BETTERMANN AS 30 cantilever arm provides a robust support solution for cable trays, mesh trays, cable ladders, and other installation components. Its 30 x 30 mm steel profile with 2.5 mm wall thickness ensures structural integrity, while the hot-dip galvanized finish delivers high corrosion protection for both indoor and outdoor use.

What stands out

• Hot-dip galvanized steel for long-lasting durability in harsh environments
• Supports up to 0.8 kN (80 kg) at the arm end
• 610 mm projection for versatile mounting
• Wall mounting with two 11 mm holes for secure installation

Technical details

• Series: AS 30
• Material: Steel
• Surface treatment: Hot-dip galvanized
• Profile dimensions: 30 x 30 mm
• Profile wall thickness: 2.5 mm
• Arm length: 610 mm
• Permissible load at arm end: 0.8 kN
• Mounting type: Wall mounting
• Number of mounting holes: 2
• Mounting hole diameter: 11 mm
• Colour: Metallic grey
• Weight: 1.7 kg

Our verdict

A reliable, corrosion-resistant cantilever arm that meets the demands of professional cable management projects.
