OBO Bettermann pripojovacia svorka 2710/25 25mm krížová svorka pre okrúhle a ploché vodiče (5001226)

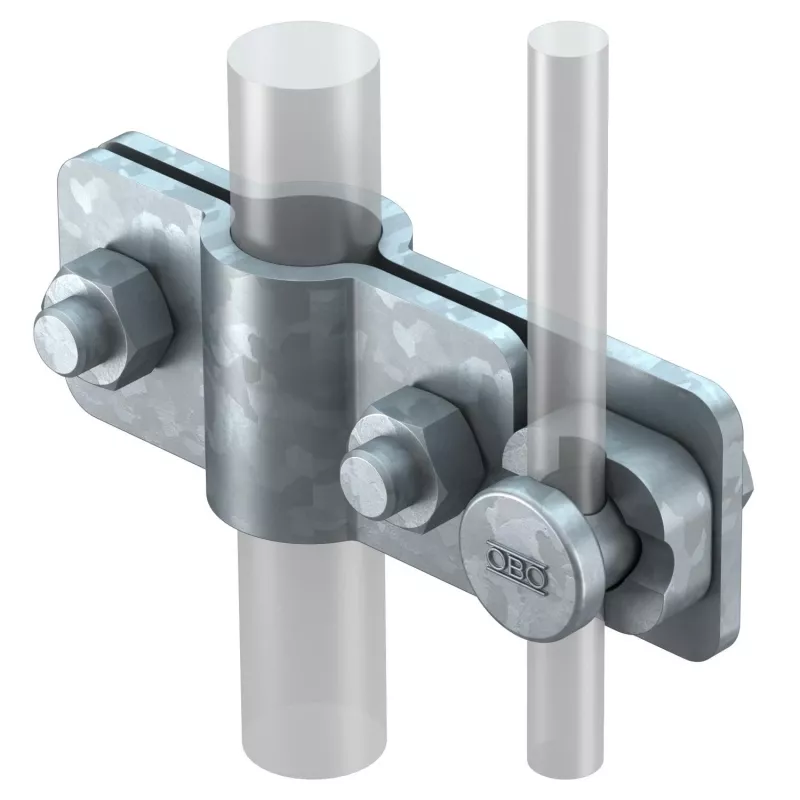

Connecting two conductors at a 90° angle in earthing, lightning protection, or potential equalization systems often requires a clamp that can handle both round and flat conductors without compromising conductivity or corrosion resistance. The OBO Bettermann Connection Clamp 2710/25 solves this by providing a robust cross clamp made of hot-dip galvanized steel, designed to securely join a main conductor (round 8–10 mm or flat up to 30 x 3.5 mm) with a round connecting conductor (8–10 mm).

Who is it for

Electricians and installers working on lightning protection and earthing systems in residential, commercial, or industrial buildings will find this clamp essential for creating reliable cross connections between conductors.

Main features

• Cross clamp design for 90° conductor connections.
• Accepts main conductor: round 8–10 mm or flat up to 30 x 3.5 mm.
• Connecting conductor: round 8–10 mm.
• Material: hot-dip galvanized steel (St/tZn) for high corrosion resistance.
• Hexagon screw M8 for secure fastening.
• Tested for lightning current (10/350 µs): 100 kA.
• Short-circuit current capacity (50 Hz, 1 s): 1.5 kA.
• Complies with DIN EN 62561-1 (VDE 0185-561-1).

Specifications

• Product type: Connection Clamp
• Design: Cross Clamp
• Material: Steel, hot-dip galvanized
• Main conductor type: Round (Rd) / Flat (FL)
• Main conductor diameter (Rd): 8 - 10 mm
• Main conductor dimensions (FL): up to 30 x 3.5 mm
• Connecting conductor type: Round (Rd)
• Connecting conductor diameter: 8 - 10 mm
• Screw type: Hexagon screw M8
• Application: Earthing, Lightning Protection, Potential Equalization
• Standard compliance: DIN EN 62561-1 (VDE 0185-561-1)
• Corrosion resistance: High
• Number of connections: 2
• Mounting method: Clamp-on
• Test current (10/350 µs): 100 kA
• Short-circuit current (50 Hz, 1s): 1.5 kA

Tips

Ensure the conductor surfaces are clean before clamping to achieve optimal electrical contact and corrosion resistance.
