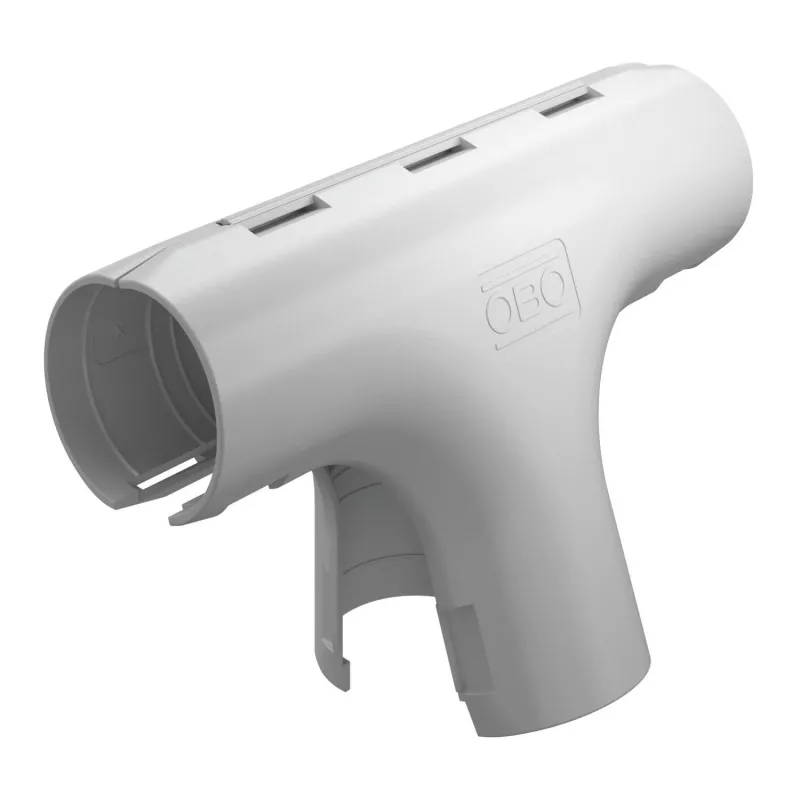

OBO Bettermann Quick-Pipe T-spojka 3000 TMS M32 svetlosivá (2153845)

Electricians and panel builders use the OBO Bettermann Quick-Pipe T-Connector 3000 TMS M32 to branch a run of Quick-Pipe conduit into three directions without cutting or threading. The push-fit design locks onto M32 Quick-Pipe tubes in seconds, creating a secure, tool-free junction in surface-mounted, flush-mounted or concrete installations.

Key specifications

• Product type: T-piece connector
• System compatibility: OBO Quick-Pipe
• Nominal diameter: M32
• Material: Polypropylene (PP)
• Colour: Light grey (RAL 7035)
• Number of connections: 3
• Connection type: Plug-in / push-fit
• Halogen-free
• UV-resistant
• Flame retardant: self-extinguishing
• Temperature range: -25 to +60 °C
• Impact resistance: IK08
• Protection class: IP67 when installed correctly

Why choose it

The connector is halogen-free and UV-resistant, so it stays stable in outdoor and safety-critical areas. Its self-extinguishing polypropylene body reduces fire propagation risk, and the IK08 impact rating means it withstands rough handling on site.

Ideal use cases

• Branching Quick-Pipe conduit in industrial control panels
• Creating T-junctions in surface-mounted cable runs
• Routing cables in concrete pours where a fixed junction is needed
• Outdoor installations exposed to sunlight

Good to know

The T-connector is part of the OBO Quick-Pipe 3000 system and matches M32 conduit dimensions. It carries VDE certification and is suitable for use in installations where halogen-free materials are specified.
