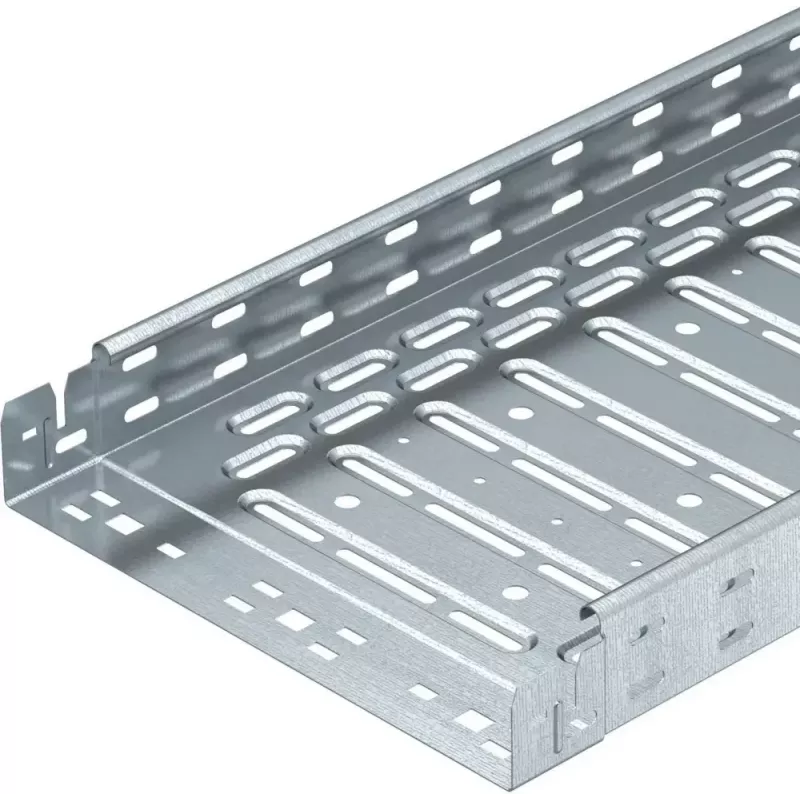

OBO Bettermann RKSM 620 FT Káblový žľab 60x200x3050mm pozinkovaná oceľ 6047639

Routing cables through industrial and commercial spaces demands a support system that can handle heavy loads, resist corrosion, and adapt to complex layouts. The OBO Bettermann RKSM 620 FT cable tray provides a robust, hot-dip galvanized steel pathway for power and data cables, ensuring long-term reliability even in demanding environments.

Who is it for

Electricians, panel builders, and facility managers who need a durable, corrosion-resistant cable management solution for factories, warehouses, infrastructure projects, and large commercial buildings. It is suitable for ceiling, wall, or floor mounting via standard support structures.

Main features

• Hot-dip galvanized steel construction for excellent corrosion protection.
• Bottom perforation with 7 x 20 mm slots for ventilation and cable fixing.
• Side height of 60 mm and width of 200 mm accommodate high cable volumes.
• Length of 3050 mm reduces the number of joints and installation time.
• Complies with DIN EN 61537 for cable tray systems.

Specifications

• Series: RKSM
• Side height: 60 mm
• Width: 200 mm
• Length: 3050 mm
• Material: Steel
• Surface finish: Hot-dip galvanized
• Material thickness: 0.75 mm
• Perforation type: Bottom perforated
• Slot dimensions: 7 x 20 mm
• Usable cross-section: 12000 mm²
• Weight per unit length: 3.44 kg/m
• Standard compliance: DIN EN 61537
• Application area: Industrial, commercial, infrastructure
• Mounting type: Ceiling, wall, floor (via support structures)
• Packaging unit: 1 piece

Tips

Pair this tray with OBO Bettermann connectors and support brackets for a complete, code-compliant installation. For outdoor or highly corrosive environments, the hot-dip galvanized finish provides superior protection compared to pre-galvanized alternatives.
