Ochranný kryt proti dažďu Hikvision DS-KABV8113-RS

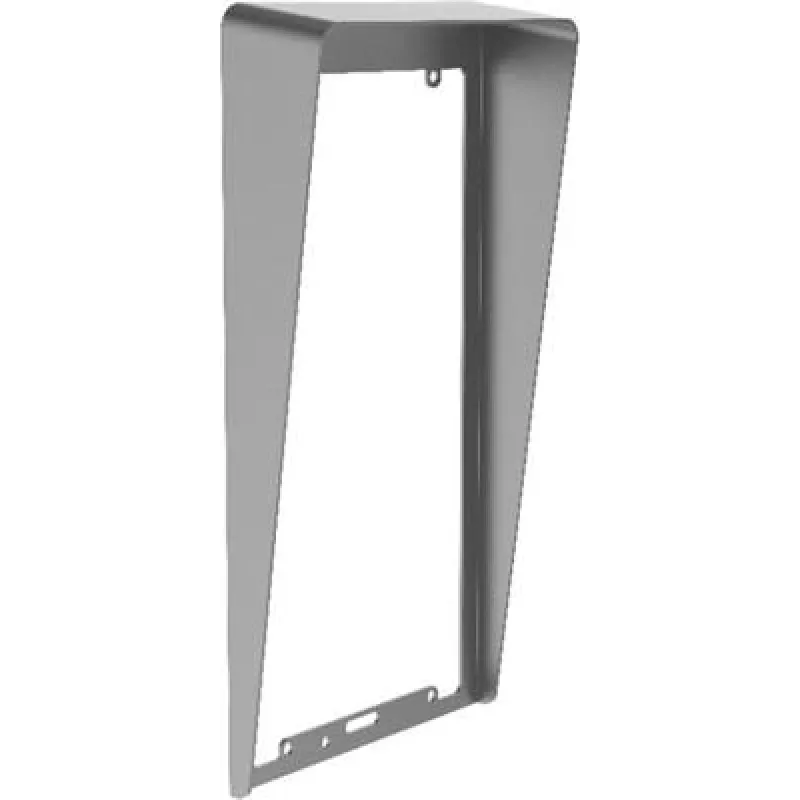

The Hikvision DS-KABV8113-RS rain shield is a flush-mount protective cover designed for KV8113, KV8213 and KV8413 series villa door stations. Manufactured for outdoor use, the grey shield helps protect the door station from rain and moisture while maintaining a low-profile appearance. The product is supplied as a single unit with compact dimensions—186 mm wide, 97 mm deep and 31 mm high—suitable for recessed installation in control and access systems.

Advantages

The rain shield provides reliable protection against water ingress and weather exposure for compatible Hikvision villa door stations. Its flush-mount form factor reduces protrusion from the wall, and the neutral grey finish integrates with common outdoor housings. The unit is lightweight, simple to handle and intended for straightforward installation and maintenance.

Suitable for (tasks / use cases)

• Protection of Hikvision KV8113/8213/8413 series villa door stations from rain and moisture
• Recessed/flush mounting in residential or small commercial entry panels
• Outdoor installations where a low-profile protective cover is required

Key specifications

• Model: DS-KABV8113-RS/Flush
• Compatible with: KV8113, KV8213, KV8413 series villa door stations

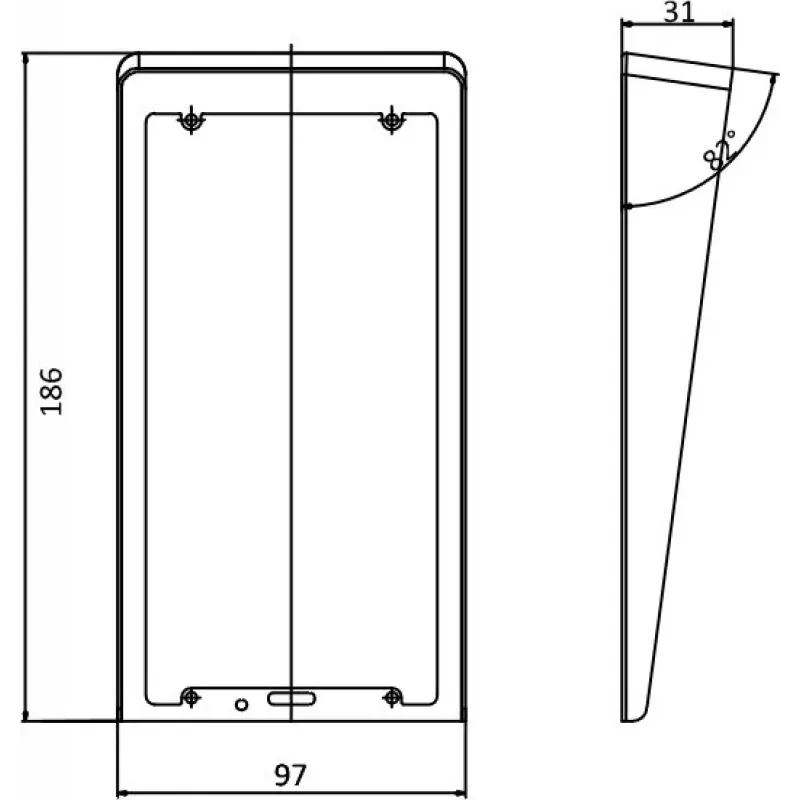

• Dimensions: 186 mm (W) × 97 mm (D) × 31 mm (H)
• Color: Grey
• Package contents: 1 unit
• Brand: Hikvision
• Category: Control systems / Access control accessories

How to use

Prepare the recessed mounting opening according to the door station installation instructions and align the rain shield so it sits flush with the mounting surface. Secure the shield using appropriate screws or fasteners compatible with the installation substrate. After mounting the shield, install the door station and verify that all seals and cable entries remain protected from direct exposure to rainfall.

Recommendations

Use the DS-KABV8113-RS rain shield only with the specified KV8113/8213/8413 series models to ensure proper fit and protection. Inspect seals and fasteners periodically and replace any damaged components to maintain weather resistance.
