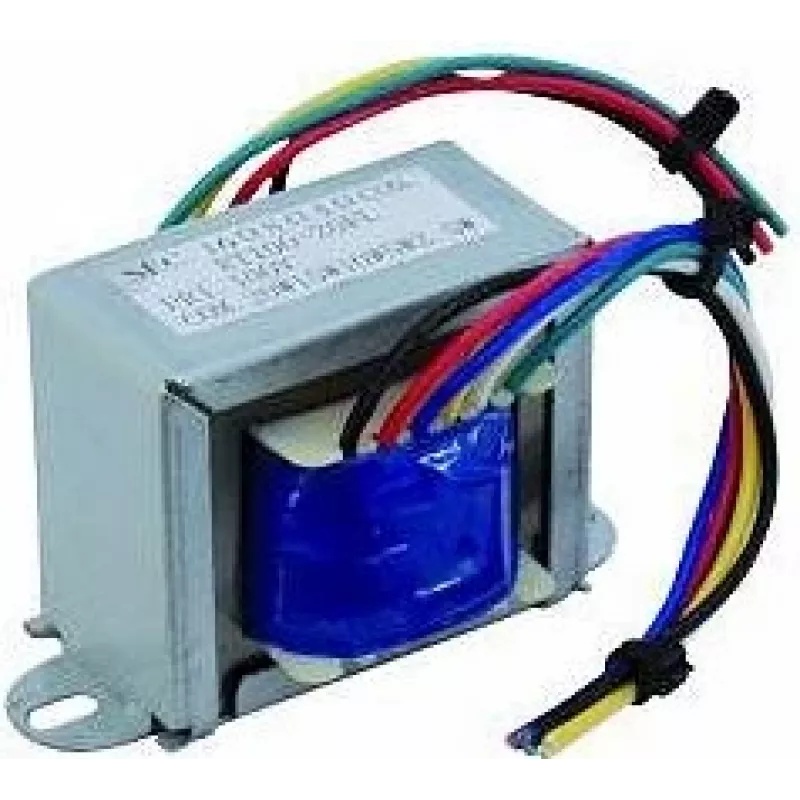

Omnitronic ELA-T20 20W — audio transformátor pre 20 W systémy

Omnitronic ELA-T20 is a compact 20 W audio transformer designed for low-power public address and background music installations. It matches amplifier outputs to distributed speaker lines and provides impedance adaptation required for stable operation of 20 W systems. The transformer supports reliable signal transfer between PA amplifiers and compatible loudspeakers while helping to prevent damage from mismatched loads.

Advantages

The Omnitronic ELA-T20 offers straightforward impedance matching for small PA setups, enabling consistent audio distribution across multiple speakers. Its 20 W power handling is suitable for low-power zones and helps maintain signal integrity. The unit is built for simple integration into existing audio lines and reduces the likelihood of amplifier stress due to improper loading.

Suitable for

Key specifications

How to use

Install the transformer between the amplifier output and the speaker line, observing correct wiring polarity. Select the appropriate tapping or connection on the transformer to match the amplifier’s output impedance and the speaker line configuration. Ensure connections are secure and that the total load does not exceed the transformer's 20 W rating. After installation, verify audio output at low volume before increasing to normal operating levels.

Recommendations

Use the Omnitronic ELA-T20 in low-power zones where a 20 W rating is adequate; avoid exceeding the rated power to prevent distortion or damage. For larger installations or higher-power requirements, consider higher-rated transformers or alternative distribution methods. Regularly inspect connections and mounting to ensure stable long-term operation.
