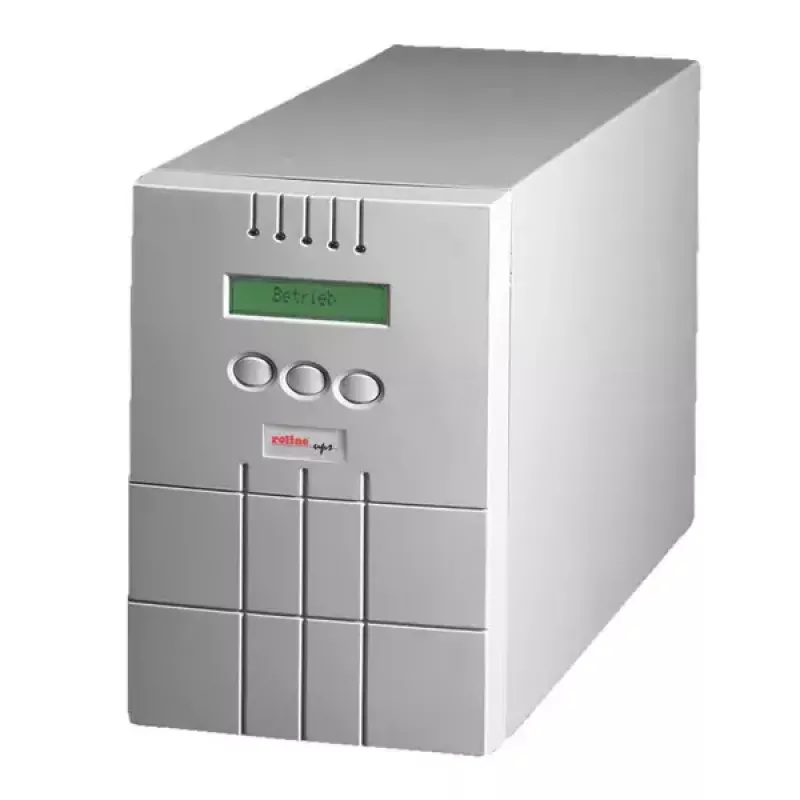

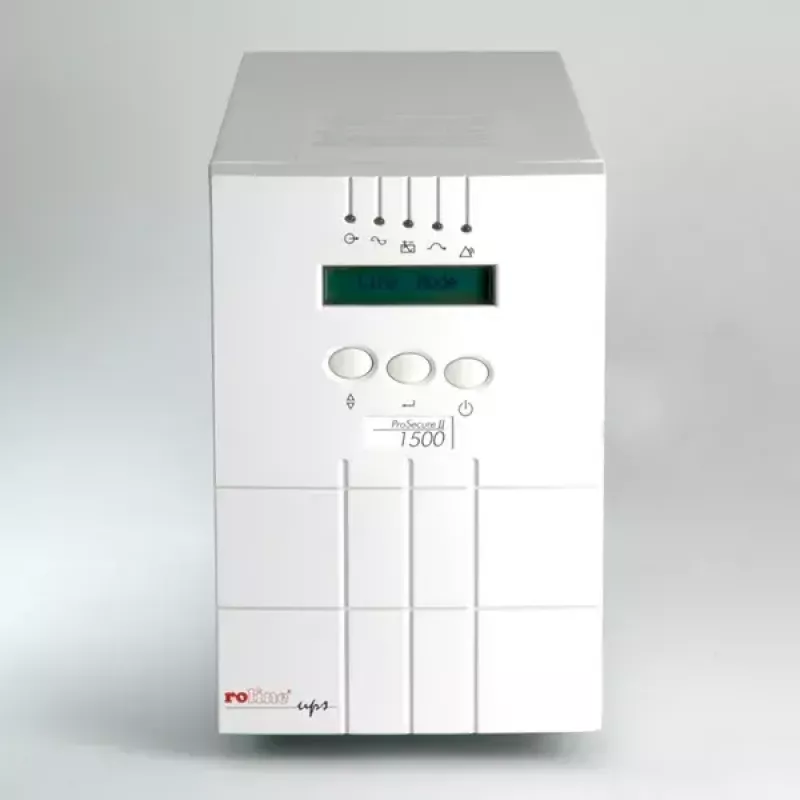

Online UPS ROLINE ProSecure II 1500

The ROLINE ProSecure II 1500 is an online double-conversion UPS designed to deliver continuous, high-quality power for essential computer systems and servers. With nominal output voltage of 230 V, up to 95% efficiency, an LCD front panel for monitoring and a compact footprint (235 x 155 x 410 mm, 20 kg), it protects equipment from power failure, sags, surges, undervoltage, overvoltage, transients, line noise, frequency variations and harmonic distortion.

Advantages

True online double-conversion topology and a pure sine-wave output (THD < 3%) provide stable power for sensitive electronics. The unit includes an LCD display with multiple language support, advanced battery management, hot-swappable batteries and a battery runtime indicator. Built-in surge and lightning protection, automatic diagnostics, automatic charging in UPS-off mode and selectable high-efficiency mode enhance reliability and operational flexibility. Communication ports (USB and RS-232) and compatible management software allow remote monitoring and controlled shutdown.

Suitable for

Key specifications

How to use

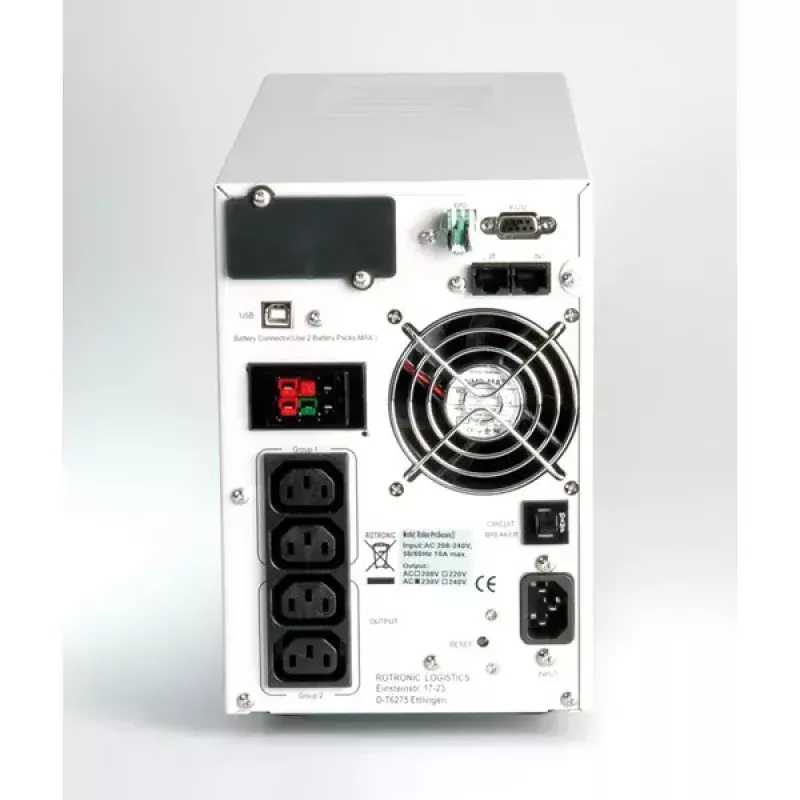

Install the UPS on a stable, level surface and connect the input to a grounded AC supply. Connect protected equipment to the UPS output receptacles. Use the LCD to view status and runtime information. Configure communication by connecting USB or RS-232 to a host and install the supplied management software for monitoring and automated shutdown. Replace batteries when the unit indicates a battery replacement warning; batteries are hot-swappable to minimize downtime.

Recommendations

Place the UPS in a well-ventilated area, avoid exposure to direct heat or moisture, and periodically run diagnostics and battery checks via the LCD or management software. For extended backup time consider adding compatible external battery packs and segment critical loads using controllable receptacles.
