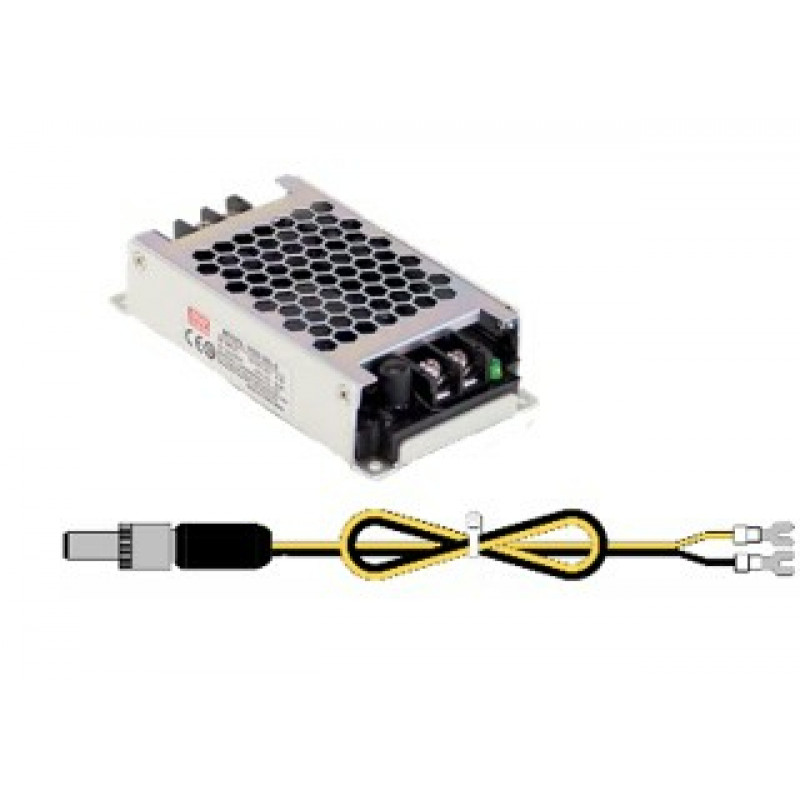

OM1200 externá DC-DC súprava napájacieho konvertora

The Opengear OM1200 External DC-DC Power Converter Kit stands apart from generic converters with its robust 1200W output and wide 18-36V input range, purpose-built for demanding industrial and telecommunications environments. Unlike typical converters that falter under fluctuating DC sources, this unit delivers stable, isolated 24V power with over 92% efficiency, ensuring your critical network equipment remains operational even in harsh conditions.

Highlights

• High power density: 1200W maximum output at 24V DC, adjustable from 22V to 28V.
• Wide input voltage range: 18-36V DC (nominal 24V) accommodates varied DC power sources.
• Full isolation: 1500V DC input-to-output isolation protects sensitive loads from ground loops and surges.
• Comprehensive protection: over-voltage, under-voltage, over-current, short-circuit, and over-temperature safeguards.
• Rugged construction: anodized aluminum alloy enclosure with chassis mount flanges for secure installation.
• Active cooling: integrated forced-air fan ensures reliable operation across -20°C to +60°C.
• Remote control: remote on/off and output voltage trim for flexible system integration.
• Certified: CE and RoHS compliant, meeting international safety and environmental standards.

In daily use

Deploy the OM1200 converter in remote cabinets, base stations, or industrial control panels where 24V DC power must be derived from a fluctuating DC bus. Heavy-duty screw terminals accept large gauge wires for secure, low-resistance connections. The converter's standby current of less than 50 mA minimizes idle power draw, while ripple and noise below 150 mVp-p ensure clean power for sensitive electronics. With an MTBF exceeding 200,000 hours, this unit is engineered for years of maintenance-free service.

Full specifications

• Input voltage range: 18-36 VDC (nominal 24V)
• Output voltage: 24 VDC (adjustable 22-28 VDC)
• Maximum output power: 1200 W
• Maximum output current: 50 A
• Efficiency: >92%
• Isolation voltage: 1500 VDC input to output
• Cooling method: forced air (integrated fan)
• Protection features: over-voltage, under-voltage, over-current, short-circuit, over-temperature
• Operating temperature range: -20°C to +60°C
• Input connection type: heavy-duty screw terminals
• Output connection type: heavy-duty screw terminals
• Enclosure material: anodized aluminum alloy
• Mounting type: chassis mount with mounting flanges
• Control features: remote on/off, output voltage trim
• Standby current: <50 mA
• Ripple & noise: <150 mVp-p
• MTBF: >200,000 hours
• Certifications: CE, RoHS compliant

Final note

For mission-critical DC power conversion, the Opengear OM1200 delivers the reliability, efficiency, and safety features that industrial and telecom professionals demand. Its rugged design and comprehensive protections make it the smart choice for powering your essential infrastructure.
