Optická crimp ochrana zvaru Digitus DN-CSP-015 15 pásikov, telekomunikačne certifikovaná

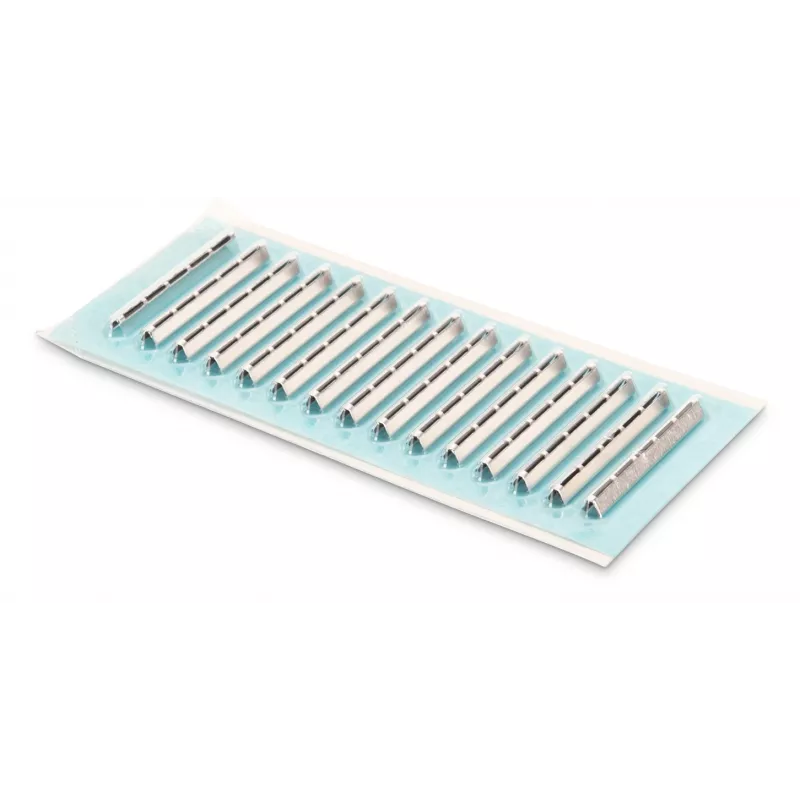

The Digitus Fiber optic crimp splice protection DN-CSP-015 provides mechanical protection for spliced optical fibers. Telecom approved and supplied as 15 strips, each crimp protector measures 30 mm long, 1.2 mm wide and 3.3 mm high. Its compact design fits standard splice cassettes and distributors, offering stable protection for the 900 µm secondary coating against tension, vibration and micromovements while maintaining good thermal and climatic resistance.

Advantages

Crimp-based mechanical fixing ensures reliable, permanent holding of the fiber without the need for adhesives. The compact dimensions make the product suitable for confined splice cassettes and closures. The design provides resistance to crushing, pulling and puncturing and delivers consistent performance in both closed and open environments thanks to favorable thermal properties. Supplied in a pack of 15 strips for multiple field installations.

Suitable for

• FTTH installations
• Building cabling and on-site fiber splicing
• 19" distribution panels and splice cassettes
• Floor-standing and wall-mounted enclosures
• Data centers and splice closures

Key specifications

• Brand: DIGITUS
• Model / MPN: DN-CSP-015
• EAN: 4016032504955
• Quantity: 15 strips
• Dimensions per strip: 30 mm (length) × 1.2 mm (width) × 3.3 mm (height)
• Suitable for 900 µm secondary coating
• Telecom approved

How to use

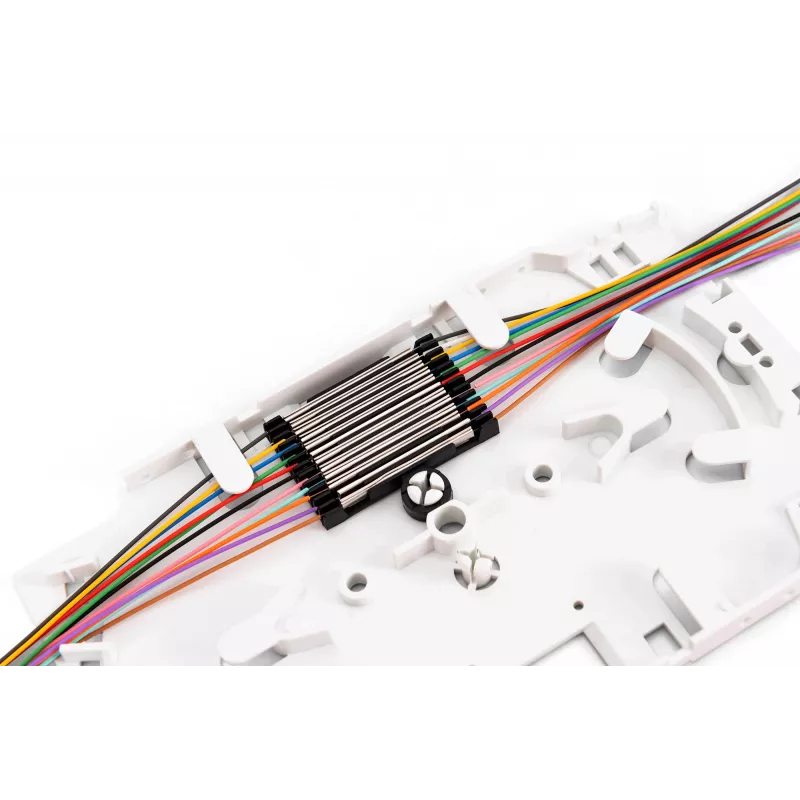

After completing the fiber splice, position the 900 µm coated fiber into the crimp splice protector so the splice is centered inside the strip. Secure the protector by performing a precise crimp with an appropriate crimping tool according to the tool manufacturer's instructions. Place protected splices into splice cassettes, panels or closures and arrange fibers to avoid excess bending. Follow standard on-site safety and handling procedures for fiber optics while working.

Recommendations

Use a compatible, calibrated crimping tool and verify correct seating of the 900 µm coating before crimping. Store strips in a dry environment and avoid exposing assembled splices to sharp edges or excessive mechanical stress.
