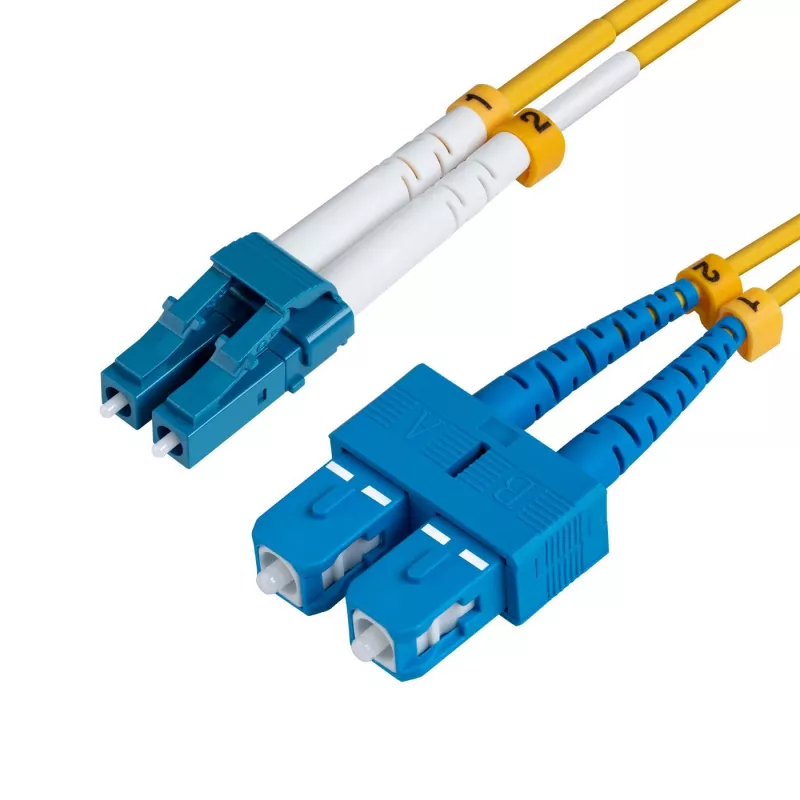

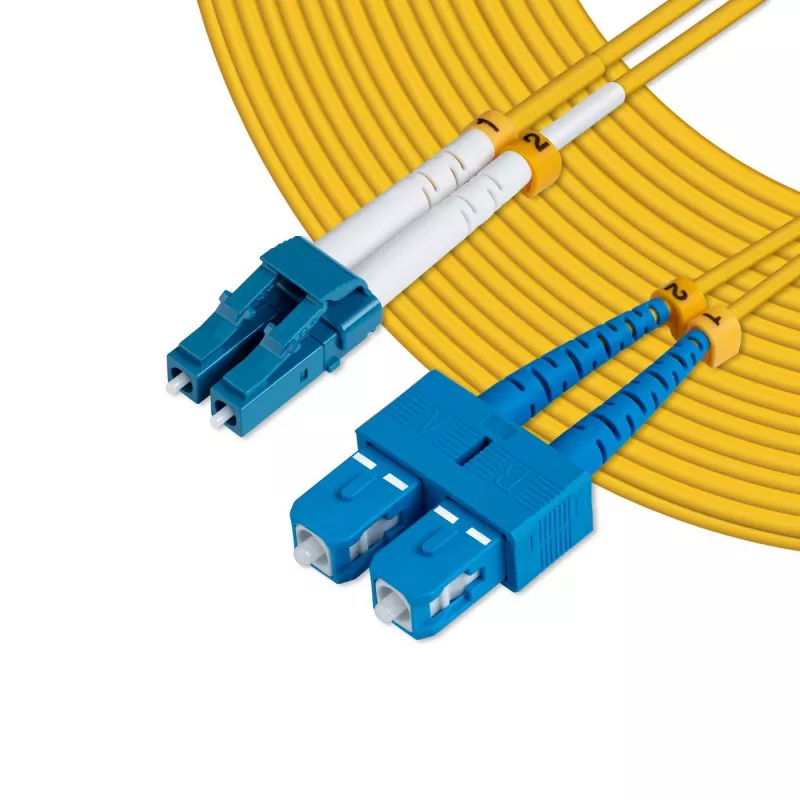

Optické vlákno kábel MicroConnect FIB421004, OS2, 4 m, LC na SC, 9 µm jadro, žltý

MicroConnect FIB421004 is a 4 m OS2 single-mode fibre optic cable with an LC connector on one end and an SC connector on the other. The cable has a 9 µm core diameter and a yellow jacket, and is designed for long-distance single-mode links, enterprise networks, server rooms and cloud storage networks where low-loss fibre jumper cables are required. It supports 1G/10G/40G/100G Ethernet connections and is suitable for use with network equipment and optical transceivers.

Advantages

The OS2 single-mode construction provides low attenuation for long-distance transmission, enabling data transport up to 10 km at 1310 nm and up to 40 km at 1550 nm. The LC-to-SC connector configuration offers compatibility with a wide range of ports and transceivers. The cable uses LSZH jacket materials and conforms to common industry standards (IEC, EIA/TIA, Telcordia) for installation safety and performance.

Suitable for

• Enterprise network backbone links
• Telecom rooms and patch panels
• Server farms and data centre interconnects
• Cloud storage networks and long-distance optical links
• Connecting network equipment and optical transceivers

Key specifications

• Cable type: Single-mode OS2, 9 µm core
• Length: 4 m
• Connectors: LC to SC
• Colour: Yellow
• Weight: 0.04 kg
• Standards: LSZH jacket; conforms to IEC, EIA/TIA or Telcordia standards

How to use

Inspect connectors and ports for contamination before installation and clean with appropriate fibre cleaning tools if necessary. Plug the LC connector into the LC port and the SC connector into the SC port, ensuring secure seating without forcing. Route the cable to avoid sharp bends and mechanical stress; maintain the minimum bend radius recommended for single-mode cable during routing and installation. Verify link integrity with an optical power meter or appropriate network testing equipment after connection.

Recommendations

Use this MicroConnect OS2 single-mode patch cord for long-distance and high-speed Ethernet links. Store and install the cable in clean environments, avoid tight bends, and follow manufacturer and site standards for fibre handling and safety.
