Optický kábel EFB Elektronik O0323FT.1 1 m LC SC I-V(ZN) HH

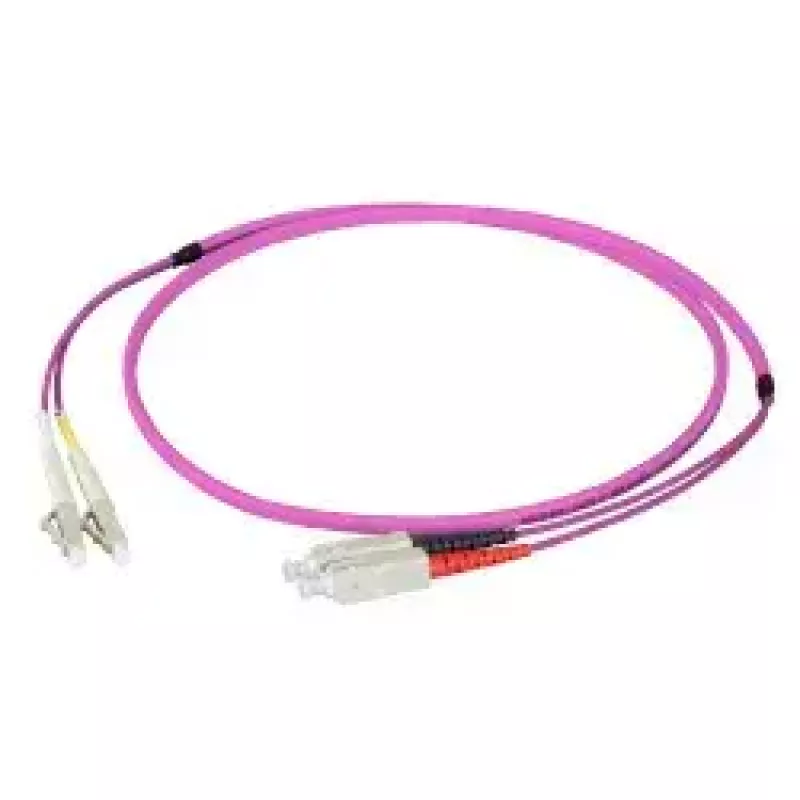

The EFB Elektronik O0323FT.1 Flat Twin Duplex Jumper is a 1 m OM4 fibre optic patch cable with LC and SC connectors. The cable has a 50 µm core diameter and an I-V(ZN) HH jacket construction that includes an additional outer jacket for increased stability. The outer jacket is made of low-smoke, zero-halogen (LSZH) material and the flat twin design simplifies routing and installation compared with standard jumpers.

Advantages

The additional outer jacket provides higher mechanical stability while maintaining flexibility for typical rack and cabinet routing. Using LSZH material reduces toxic and corrosive gas emission in case of fire. The OM4 multimode fibre and LC–SC connector combination support high-speed data transmission in short- and medium-reach network environments.

Suitable for

• Data center patching and interconnects
• Server cabinets and network racks
• Telecommunication and enterprise LAN links
• Environments requiring LSZH jacketed cables

Key specifications

• Brand: EFB Elektronik
• Model / MPN: O0323FT.1
• Length: 1 m
• Fibre type: OM4 multimode
• Core diameter: 50 µm
• Connectors: LC to SC (duplex)
• Cable type: I-V(ZN) HH, flat twin duplex
• Jacket material: LSZH (low-smoke, zero-halogen)
• EAN: 4049759157425

How to use

Connect the LC end to equipment or patch panels with LC ports and the SC end to devices or panels with SC ports. Route the flat twin cable along rack channels or cable management trays, avoiding sharp bends and excessive pulling force. Ensure connector endfaces are clean before mating to maintain signal quality.

Recommendations

For reliable performance, inspect and clean connectors before installation, avoid bending the cable beyond its minimum bend radius, and use appropriate strain relief at connection points. Choose LSZH-jacketed cables in areas with fire safety requirements.
