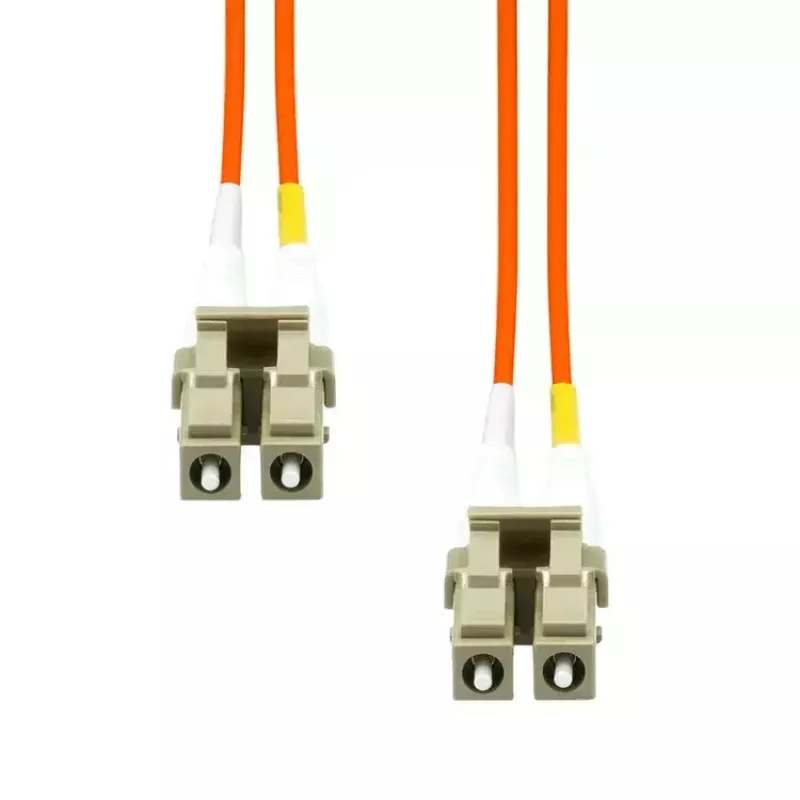

Optický kábel ProXtend LC-LC UPC OM1 Duplex 20M

The ProXtend LC-LC UPC OM1 Duplex 20M is a 20-metre multimode fiber optic patch cable with a 62.5 µm glass core and LC male connectors on both ends, designed for full-duplex data transmission. The cable is jacketed in low-smoke zero-halogen (LSZH) material and rated for operation in temperatures from -20 to 70 °C, making it suitable for indoor installations and infrastructure requiring reliable, high-speed short-range links.

Advantages

This ProXtend OM1 duplex cable provides stable multimode communication with LC-LC UPC terminations to support high-speed LAN connections. The LSZH jacket reduces hazardous fumes in case of fire and increases safety in enclosed spaces. Its 62.5 µm core diameter and duplex configuration ensure compatibility with existing OM1 multimode equipment and allow straightforward full-duplex signalling over 20 metres.

Suitable for

• Local area network (LAN) backbone and horizontal links
• Data centres and server room short-distance connections
• Telecommunications patching and network equipment interconnects
• Multimode LC-terminated optical modules and transceivers

Key specifications

• Brand: ProXtend
• Model / MPN: FO-LCLCOM1D-020
• EAN: 5714590105636
• Type: Multimode (OM1) duplex fiber optic patch cable
• Connector: LC male — LC male (UPC)
• Core diameter: 62.5 µm
• Length: 20 m
• Jacket: LSZH (Low-Smoke Zero-Halogen)
• Operating temperature: -20 °C to 70 °C

How to use

Inspect connectors and ensure they are clean before installation to avoid signal loss. Route the 20 m LC-LC cable between LC ports on patch panels, switches, transceivers or other compatible devices, avoiding tight bends and excessive tension. Connect each LC plug into the corresponding LC duplex port until it clicks into place. For best performance, follow manufacturer guidelines for connector cleanliness and multimode link budgeting.

Recommendations

Use this OM1 duplex cable for short-range multimode links in indoor environments. Keep connectors protected with dust caps when not in use, avoid sharp bends and mechanical stress, and choose LSZH-jacketed cables for installations where low smoke and halogen-free materials are required.
