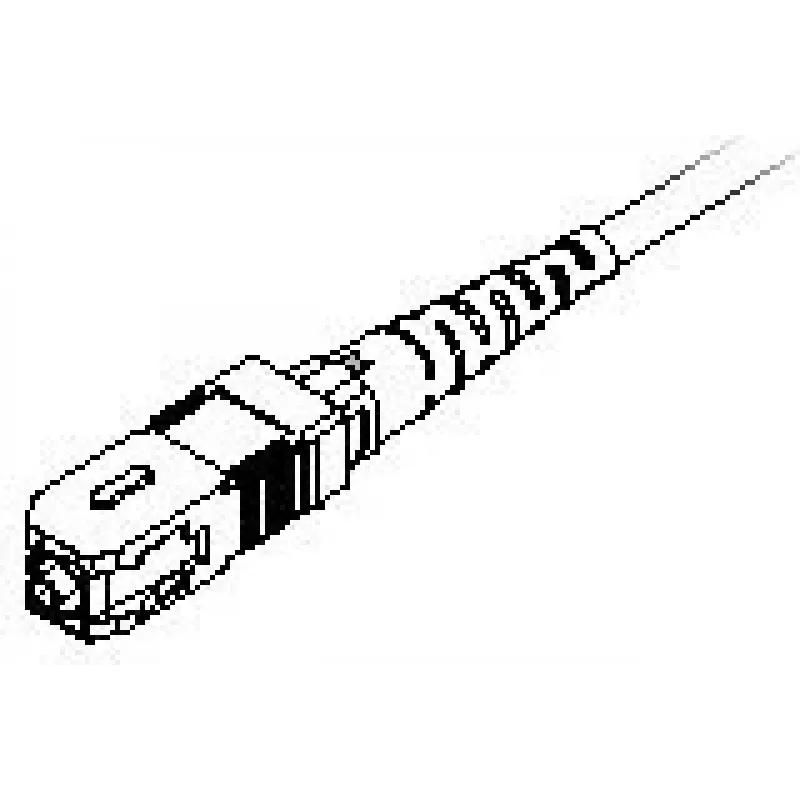

Optický konektor SC samec Corning 95-050-41

The Corning 95-050-41 is an SC male fibre optic connector compatible with OM2 multimode fibre. It uses UniCam® field-termination technology to provide high-precision mechanical splicing for fast, reliable installations in environments where setup and teardown time is critical. The connector is RoHS compliant and designed for quick installation with consistent optical performance when used with the UniCam High-Performance Tool Kit.

Advantages

UniCam® SC connectors enable rapid field termination with high-precision mechanical splice technology that reduces installation variability and ensures consistent terminations. The accompanying lightweight, handheld installation tool and precision cleaver provide repeatable cleaves and immediate go/no-go feedback for correct fiber mating. Typical termination with an LC, SC or ST® compatible UniCam connector can be completed in about 50 seconds to one minute when using the recommended tool kit.

Suitable for

• Field termination of OM2 multimode fibre in office and enterprise deployments
• Fiber-to-the-workstation installations where fast setup and teardown are required
• On-site repairs and network upgrades requiring reliable, repeatable terminations

Key specifications

• Manufacturer: Corning
• Model / MPN: 95-050-41
• Connector type: SC male (UniCam® field-termination)
• Fibre type: OM2 multimode
• Compliance: RoHS
• Typical termination time: ~50 seconds to 1 minute with UniCam High-Performance Tool Kit

How to use

Prepare the fiber by stripping and cleaning the jacket and buffer according to standard fiber handling procedures. Use the UniCam precision cleaver to obtain a high-quality cleave, then insert the field fiber into the UniCam connector and actuate the cam to create the mechanical splice between the field fiber and the factory-installed fiber stub. Complete the process by crimping as required by the connector design. Follow the UniCam High-Performance Tool Kit instructions for tool setup, cleaver use, and the installation sequence: strip, clean, cleave, cam and crimp.

Recommendations

For reliable, specification-compliant terminations, use the UniCam High-Performance Tool Kit (cleaver and installation tool) and verify mating with the tool’s go/no-go feedback. Inspect and test each termination with appropriate optical test equipment after installation.
