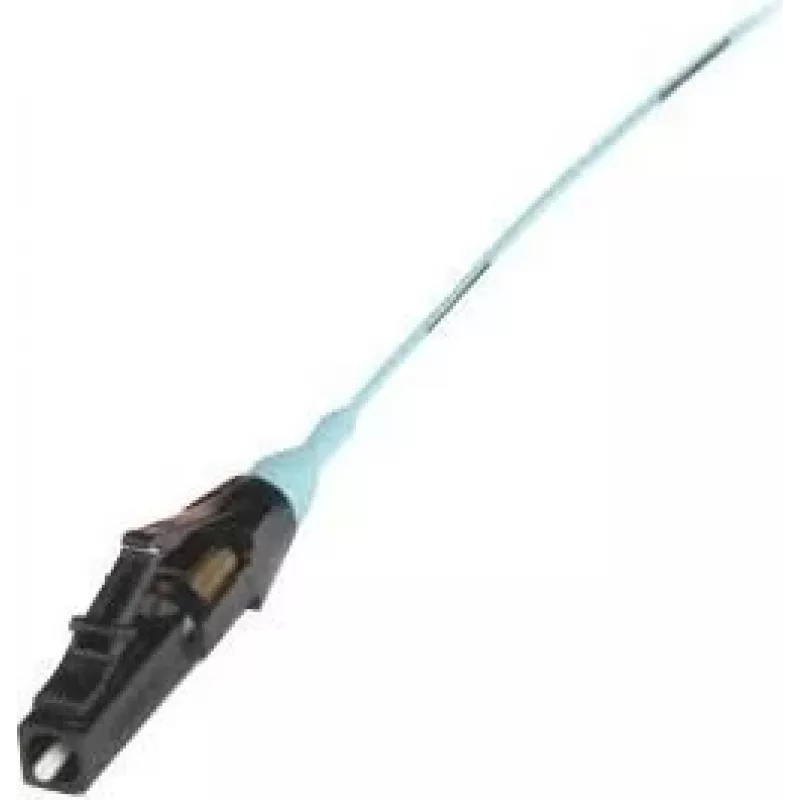

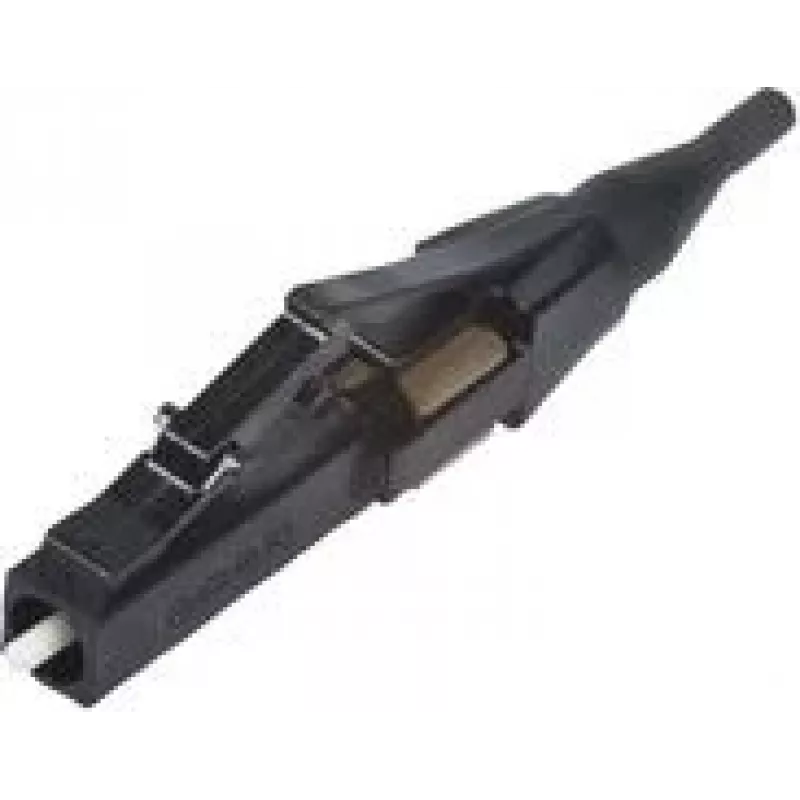

Corning UniCam LC konektor, multimode 50/125 µm, keramická ferula, montáž v teréne, bez leštenia, bez epoxidu 95-050-99

LC fibre connector for 50/125 µm multimode fibre, featuring a ceramic ferrule and field-installable design that requires no polishing or epoxy. The UniCam mechanical splice technology delivers consistent low insertion loss and reliable performance in data centre, LAN, and FTTx applications.

Advantages

Fast, tool-free termination in the field reduces installation time and labour costs. The no-polish, no-epoxy process ensures clean, repeatable connections with minimal training. Ceramic ferrule provides precise fibre alignment for stable optical performance.

Suitable for

• Data centres and enterprise networks
• LAN backbone and horizontal cabling
• FTTx and premises installations
• Field repair and connector replacement

Key specifications

• Connector type: LC
• Fibre mode: Multimode
• Fibre size: 50/125 µm
• Ferrule material: Ceramic
• Installation type: Field-installable
• Polishing requirement: No-polish
• Epoxy requirement: No-epoxy
• Insertion loss (typical): 0.1 dB
• Insertion loss (maximum): 0.3 dB
• Return loss (minimum): >20 dB
• Cable compatibility: 900 µm tight-buffered, 250 µm coated (with fan-out kit)
• Operating temperature: -10°C to 60°C
• Mating cycles: >500
• Standards compliance: TIA/EIA-568-C.3, IEC 61754-20

Recommendations

For best results, use with Corning UniCam installation tooling and follow the manufacturer's termination procedure. Ensure fibre is cleaved to the specified length and cleanliness is maintained to achieve optimal insertion loss.
