Optický patch panel DeLOCK 10" 12 portov SC Simplex aqua 1U sivý

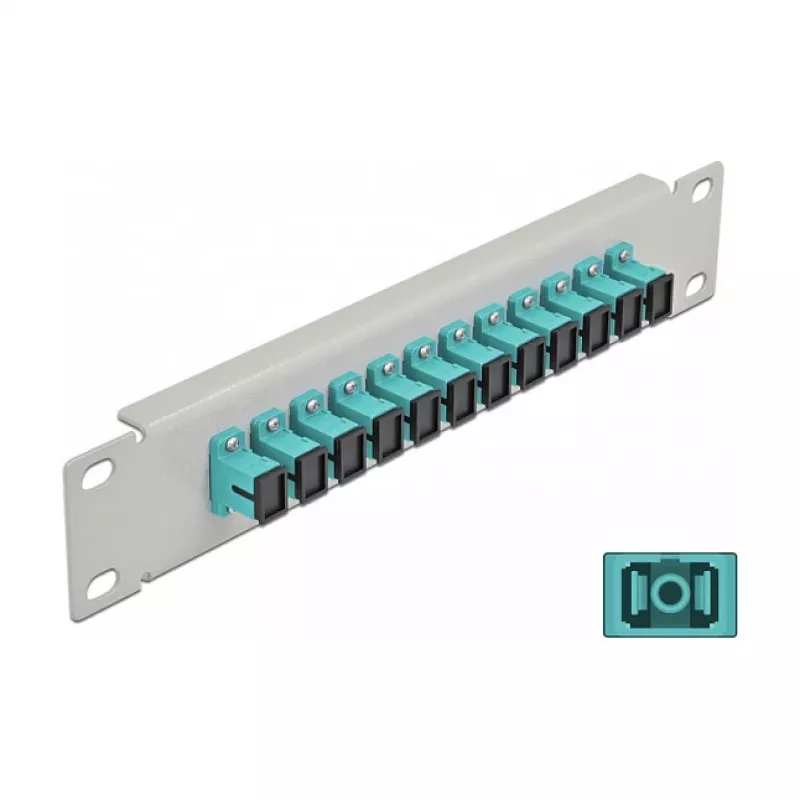

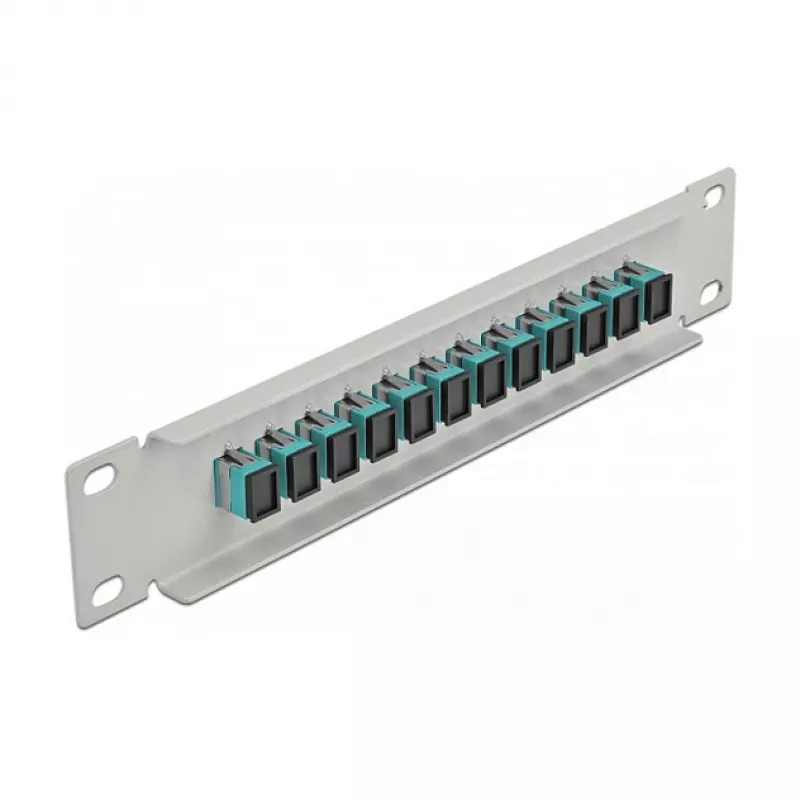

The DeLOCK 10" 12 Port SC Simplex fiber optic patch panel provides twelve SC Simplex couplers in a 1U metal housing for mounting in a 10" network cabinet. It is designed to organize and simplify fiber connections by allowing the simple mating of SC Simplex male connectors. The panel combines aqua and grey finishes and compact rack-friendly dimensions for tidy cable management.

Advantages

The metal construction offers robust support for rack installation and helps protect fiber couplers. Twelve SC Simplex ports enable orderly termination and easy access for connection changes. The 1U form factor and compact depth make the panel suitable for space-constrained racks.

Suitable for

• Data centre fiber distribution
• Telecommunications racks
• Local network (LAN) and server room installations
• Telemetry and control system fiber terminations

Key specifications

• Brand: DELOCK
• Model / MPN: 66784
• EAN: 4043619667840
• Ports: 12 × SC Simplex
• Form factor: 1U, 10" rack mount
• Material: Metal housing
• Colour: Aqua, Grey
• Dimensions (approx.): Width 44 mm, Height 10 mm, Depth 254 mm

How to use

Install the patch panel into a compatible 10" network cabinet using standard rack screws. Route fiber patch cords to the rear or front as required and insert SC Simplex connectors into the panel's couplers until they click into place. For removal, depress the connector latch and withdraw the connector carefully to avoid stressing the fiber.

Recommendations

Use compatible SC Simplex patch cords and observe standard fiber handling practices: avoid bending below the minimum bend radius, keep connectors clean with appropriate cleaning tools, and label ports for straightforward maintenance.
