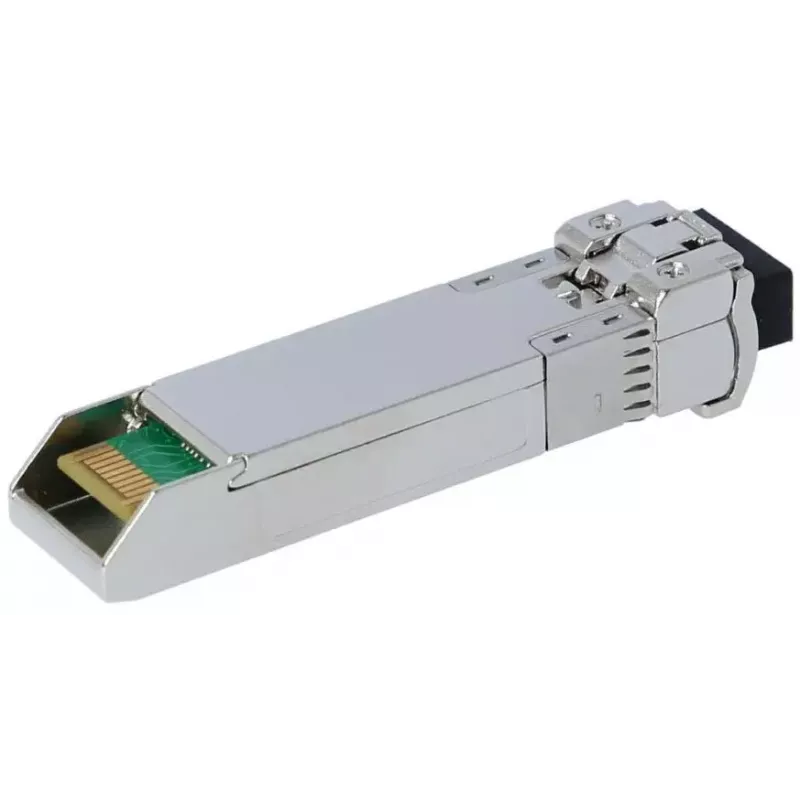

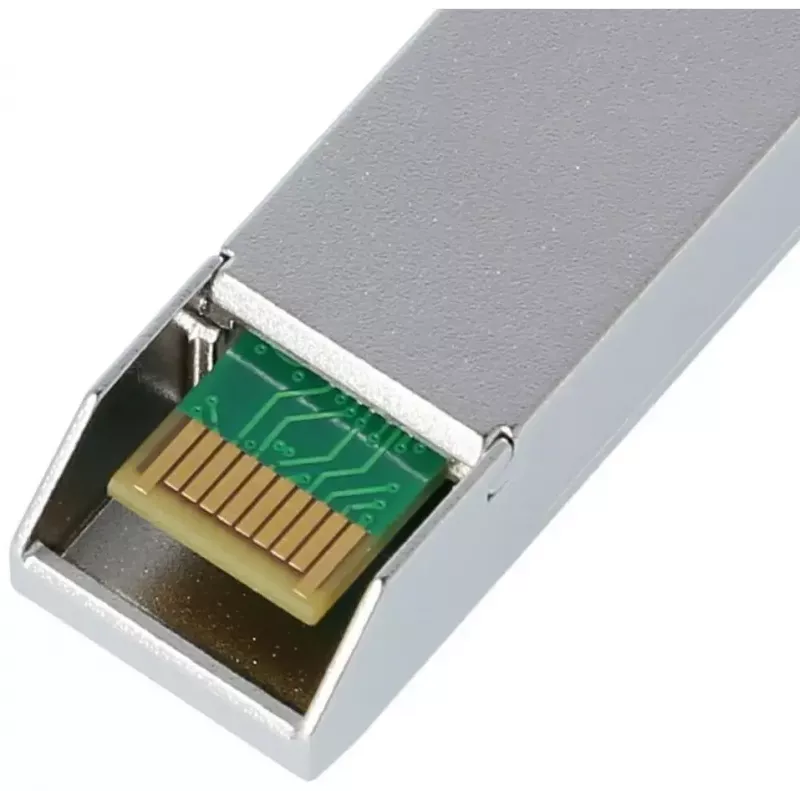

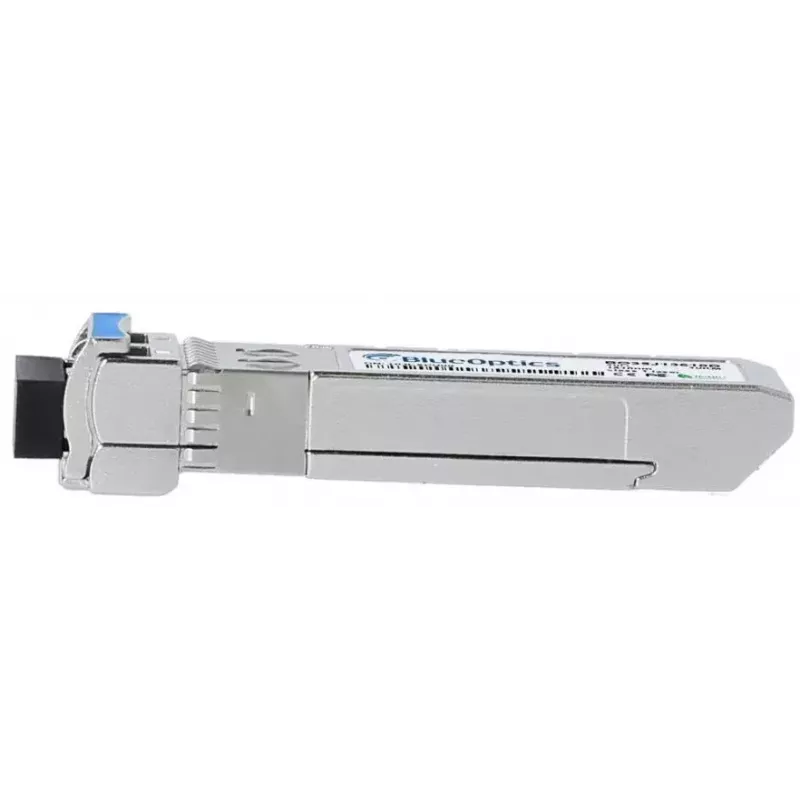

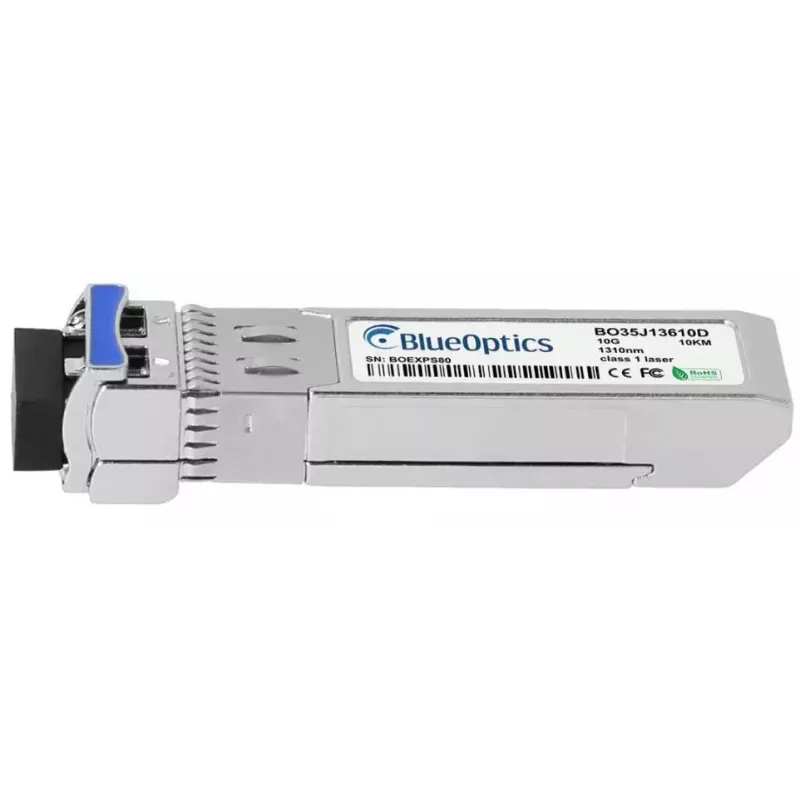

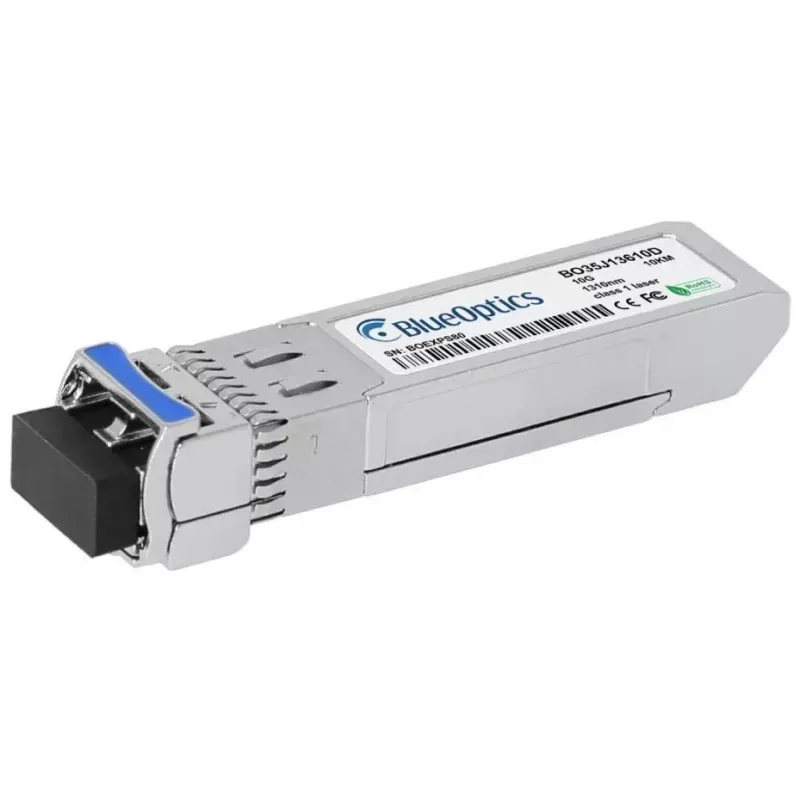

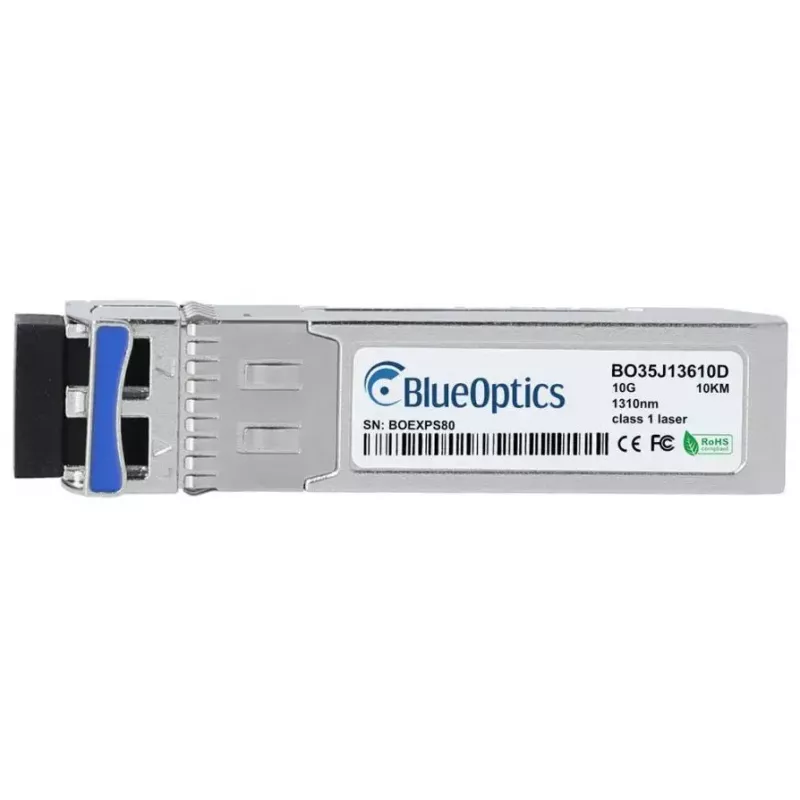

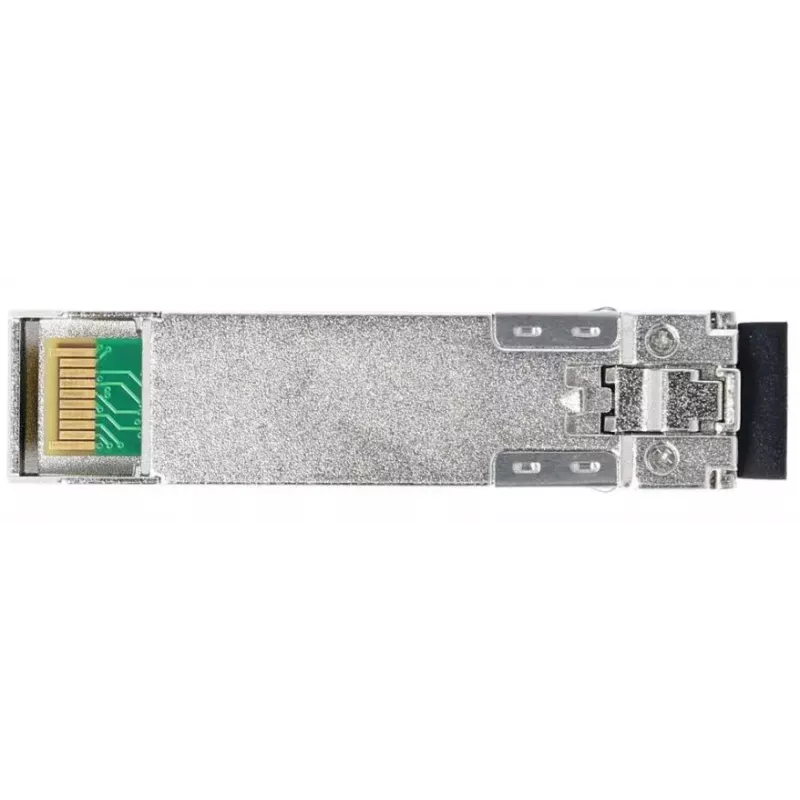

Optický transceiver modul BlueOptics 1AB390930002-BO SFP+ LC hliník

The BlueOptics 1AB390930002-BO SFP+ LC Aluminium is a fiber optic transceiver module designed for high-speed optical data transmission. It implements an SFP+ interface with an LC connector in a lightweight aluminium housing, weighing approximately 20 g. The module supports single-mode fiber links and is intended for use in networking equipment that accepts SFP+ optical transceivers.

Advantages

This BlueOptics SFP+ module offers a compact aluminium enclosure and a standard LC connector for duplex optical connections. Its SFP+ interface supports high data rates typical for 10 Gigabit applications and the lightweight construction simplifies installation and handling. The module is designed to follow MSA-compliant mechanical and electrical specifications, enabling interoperability with compatible networking hardware that supports SFP+ transceivers.

Suitable for

• 10 Gigabit Ethernet uplinks and connections in switches and routers
• Interconnects between network devices over single-mode fiber
• Server and storage system optical interfaces that accept SFP+ modules
• Data center and enterprise backbone links requiring LC duplex connections

Key specifications

• Interface type: SFP+

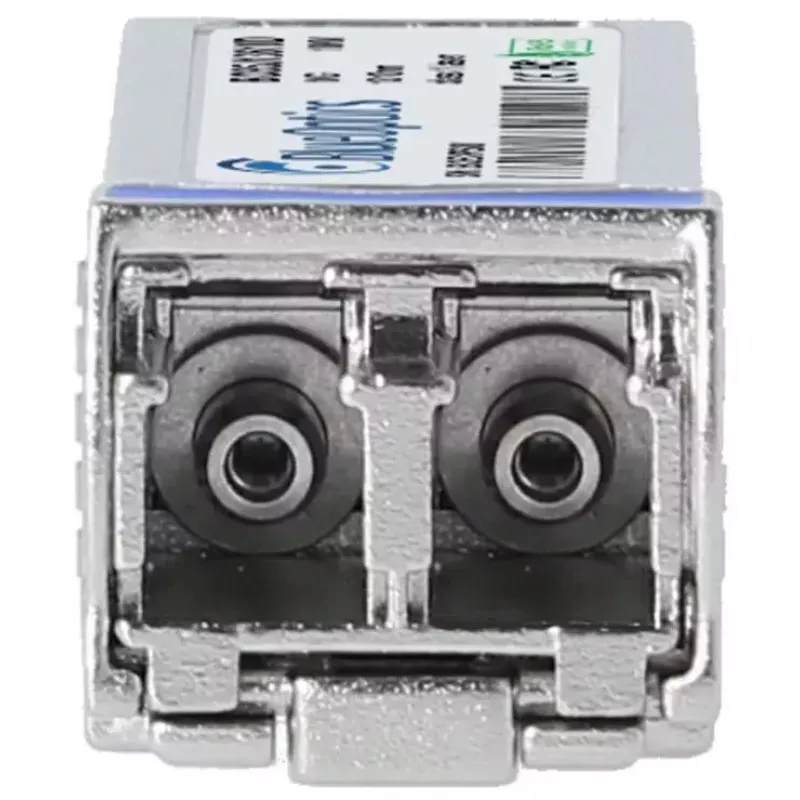

• Connector: LC duplex (single-mode fiber)
• Housing material: Aluminium
• Weight: ~0.02 kg
• Form factor: Hot-pluggable SFP+ transceiver

How to use

Install the BlueOptics SFP+ module into a compatible SFP+ port on a switch, router or server while the host device is powered according to the equipment manufacturer's guidelines. Use an LC duplex single-mode fiber patch cord to connect the transmit and receive channels between devices, ensuring correct polarity. Verify that the host hardware supports the SFP+ module and enable any required software or firmware settings for optical transceivers. When removing or inserting the module, handle it by the housing and avoid touching the fiber endfaces.

Recommendations

Use quality single-mode LC patch cords and, where available, enable digital diagnostics (DDM/DOM) on the host device to monitor optical parameters. Keep fiber endfaces clean and store the transceiver with protective caps when not in use to maintain link performance and longevity.
