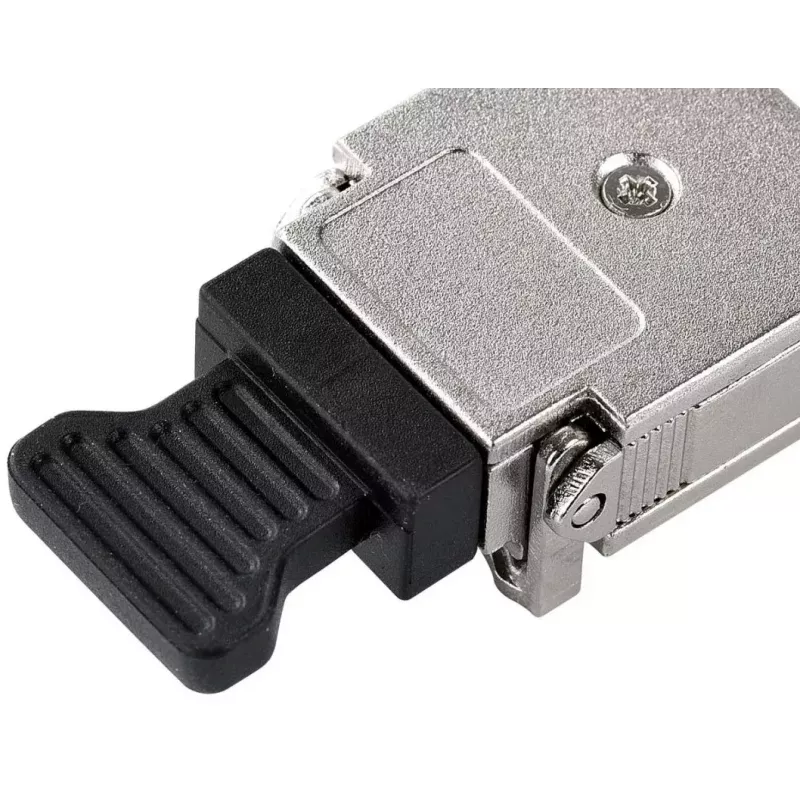

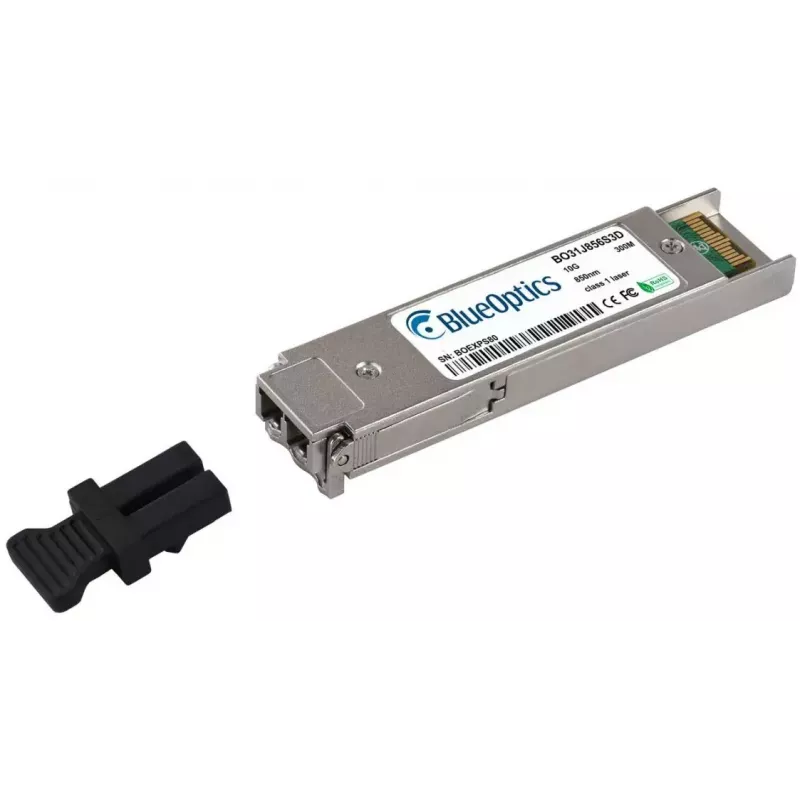

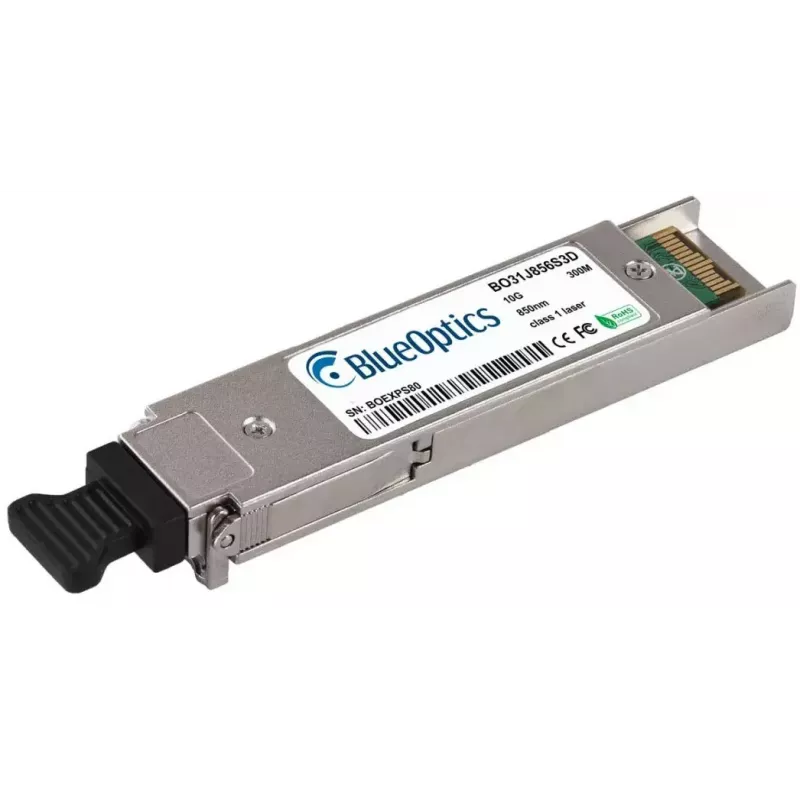

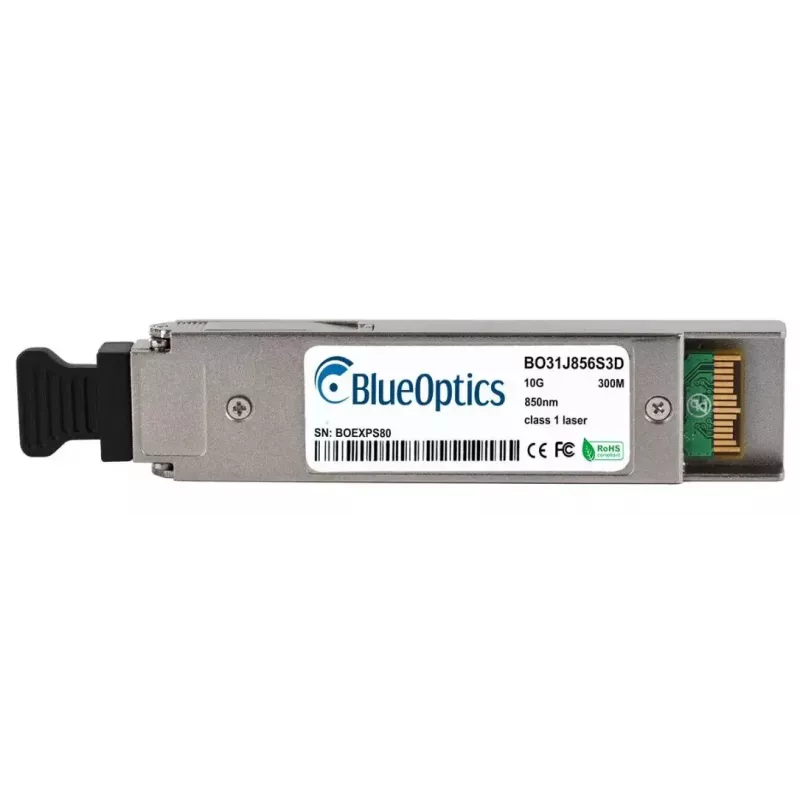

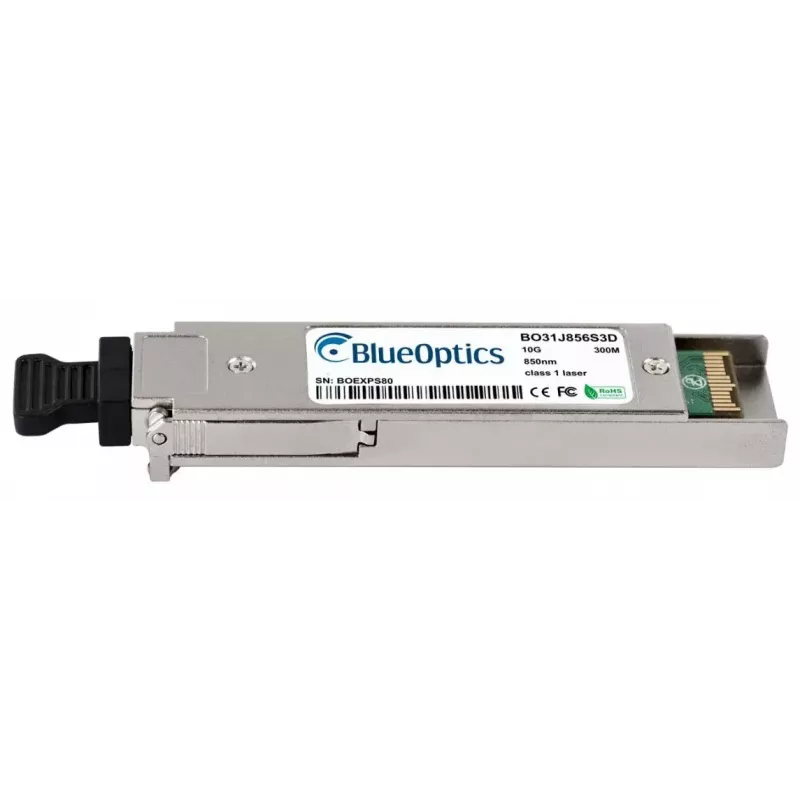

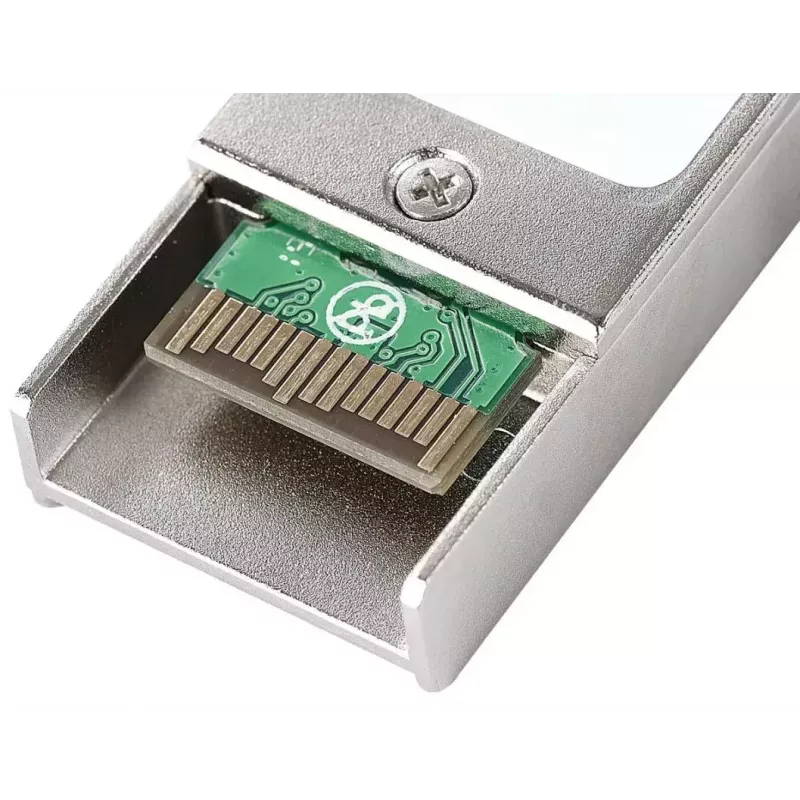

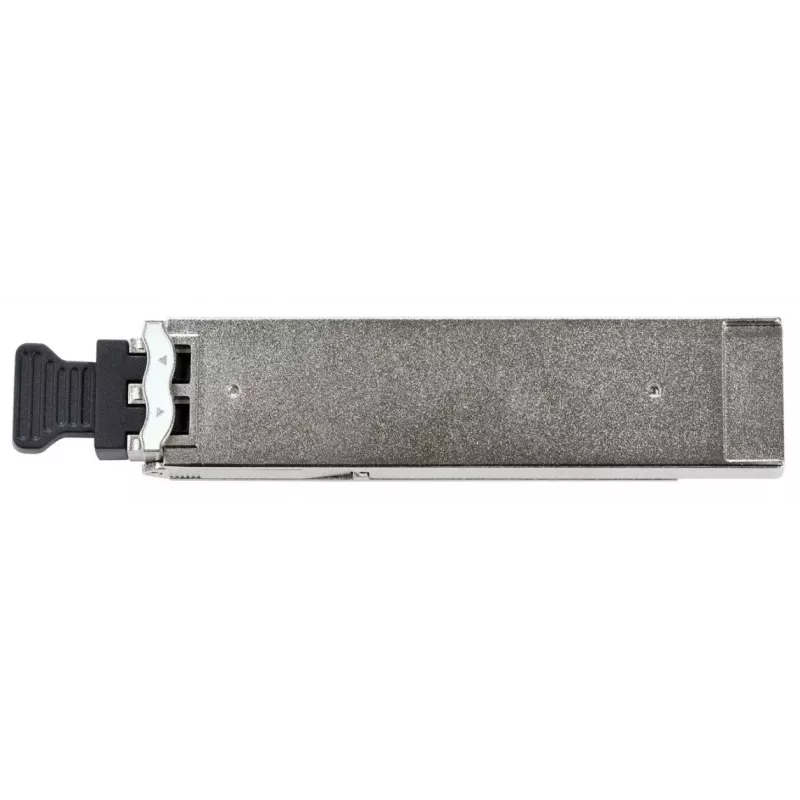

Optický transceiver modul BlueOptics AA1403005-E5-BO XFP 300m

The BlueOptics AA1403005-E5-BO XFP 300m is a fiber optic transceiver module designed for 10G optical links over multimode fiber. Built to MSA XFP form factor and finished in aluminium, the module supports 10GBASE-SR transmission up to 300 metres and uses an LC duplex connector for simultaneous transmit and receive over separate fibers. Weighing approximately 20 grams, this compact transceiver is intended for use in network switches, routers, storage systems and other hardware that accept XFP SR optics.

Advantages

This XFP module provides high-speed 10G data transmission over multimode fiber with immunity to electromagnetic interference typical of optical links. Manufactured to MSA-compatible specifications, it is engineered for interoperability and simplified installation via the LC duplex interface. The aluminium housing offers mechanical robustness and a lightweight design that eases handling and insertion into compatible ports.

Suitable for

• 10 Gigabit Ethernet links over multimode fiber within data centres and campus networks
• Fibre Channel over Ethernet (FCoE) and storage networking applications requiring 10G SR optics
• High-speed uplinks between switches, routers and network appliances that accept XFP SR transceivers

Key specifications

• Form factor: XFP (10G)
• Standard: 10GBASE-SR
• Maximum transmission distance: up to 300 metres over multimode fiber
• Connector type: LC duplex
• Wavelength: 850 nm (multimode)
• Housing material and colour: aluminium, aluminium finish
• Weight: approx. 0.02 kg
• Supports digital diagnostic monitoring (DDM/DOM) when host hardware provides support

How to use

Insert the XFP transceiver into the host device's XFP slot following the device vendor's hot‑swap and handling instructions. Connect LC duplex multimode fiber patch cords to the transmit (TX) and receive (RX) ports, ensuring correct polarity. Configure the host interface for 10G operation if needed and verify link status via the device management interface. If digital diagnostics are required, enable and read DDM/DOM values through the host system, provided the hardware supports that feature.

Recommendations

For optimal performance, use high-quality OM3/OM4 multimode fiber and matched LC duplex patch cords, maintain correct fibre polarity, and avoid tight bends or excessive stress on the fiber. Verify compatibility with your network equipment vendor for XFP SR modules and confirm DDM/DOM support in the host system before deployment.
