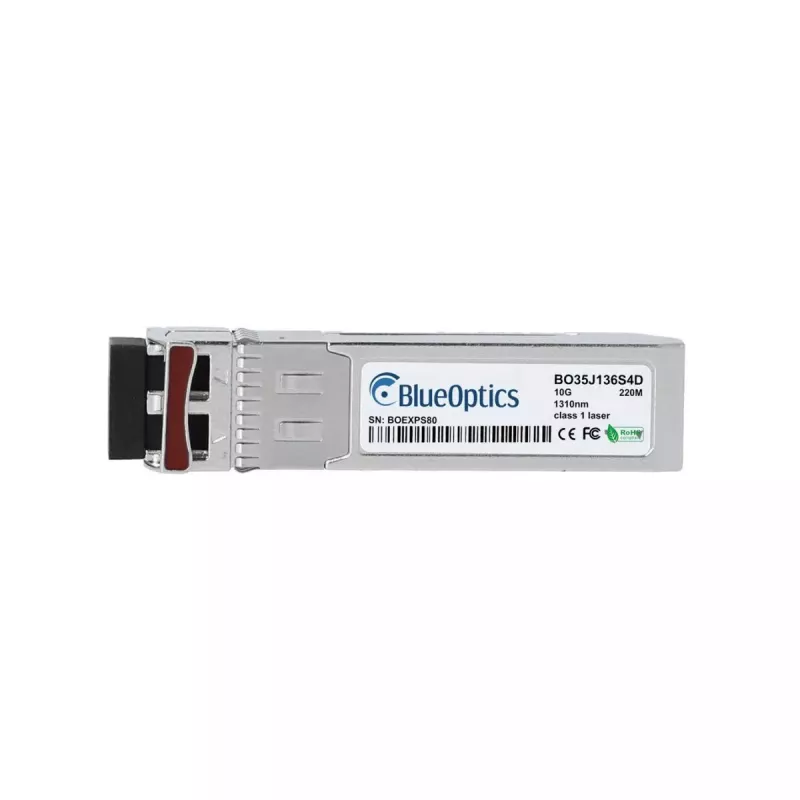

Optický transceiver modul BlueOptics ALL4760-BO SFP+ LC hliník

The BlueOptics ALL4760-BO SFP+ LC Aluminium is a fiber optic transceiver module designed for 10 Gbit/s data transmission over multimode fiber. Constructed with an aluminium housing and an LC duplex connector, this SFP+ module supports 10GBASE-LRM operation and is intended for integration into network equipment that accepts SFP+ MSA-compliant transceivers. The compact module weighs approximately 20 g and provides a robust optical link option where reliable, high-speed fiber connectivity is required.

Advantages

This transceiver offers 10 Gbit/s transmission performance in an SFP+ form factor with an LC duplex interface, combined with a lightweight aluminium housing that aids heat dissipation and mechanical durability. It is manufactured to MSA standards for broad compatibility with SFP+ ports and is built using high-quality optical and electronic components to support extended operational lifetime and stable performance. The module supports multimode fiber links and includes optical transmitter and receiver elements tuned for the 1310 nm wavelength range.

Suitable for

• 10 Gbit/s uplink and aggregation links in switches and routers
• Data center interconnects and server-to-switch connections over multimode fiber
• Storage networking and SAN environments supporting SFP+ optics
• High-speed network equipment requiring MSA-compliant SFP+ transceivers

Key specifications

• Form factor: SFP+
• Optical connector: LC duplex
• Supported standard: 10GBASE-LRM
• Wavelength (transmit/receive): 1310 nm
• Suitable fiber type: multimode fiber
• Typical link distance: up to 220 m on multimode fiber
• Housing material and colour: aluminium, aluminium colour
• Weight: 0.02 kg

How to use

Insert the SFP+ module into a compatible SFP+ port on your switch, router or other network device until it latches. Connect LC duplex multimode fiber patch cords to the module’s LC connector, observing correct Tx/Rx orientation. Ensure the host device supports 10GBASE-LRM optics and, if required, enable or verify Digital Diagnostics Monitoring (DDM/DOM) support in the host to monitor operational parameters. Follow standard electrostatic discharge (ESD) precautions when handling the module and keep protective dust caps on unused connectors.

Recommendations

For optimal performance, use high-quality multimode fiber and LC patch cords, confirm compatibility with the target hardware platform, and validate link settings in the network equipment. If remote monitoring is required, ensure the host device supports DDM/DOM to access supply voltage, laser bias current, transmit/receive power and temperature data.
