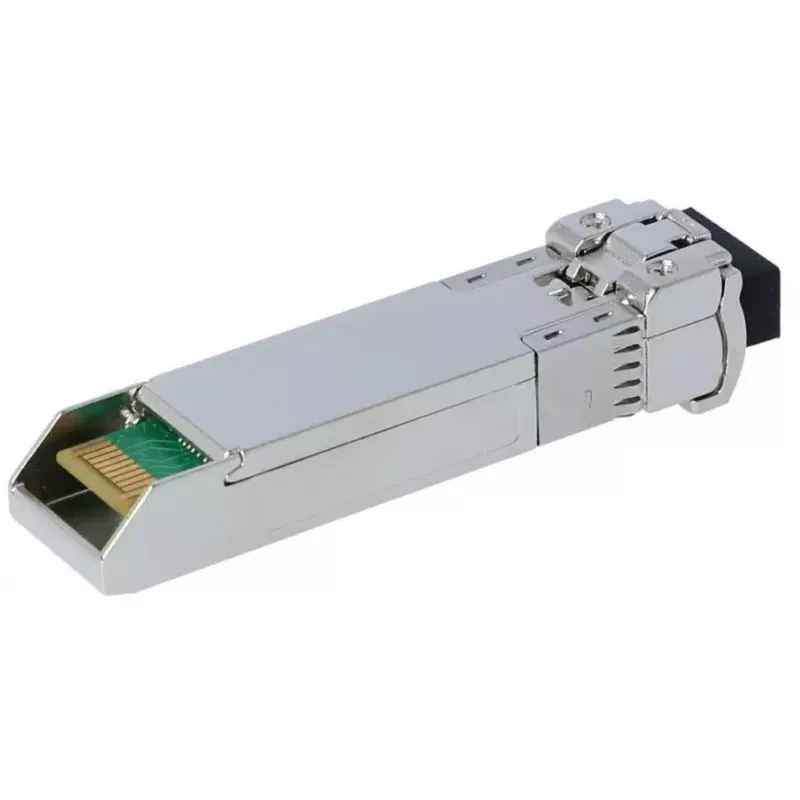

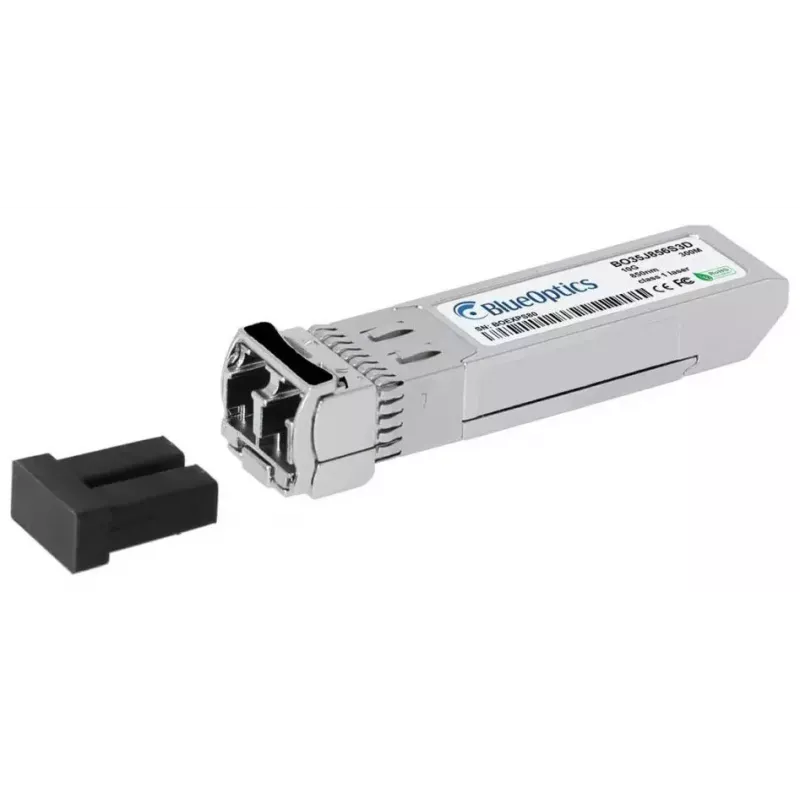

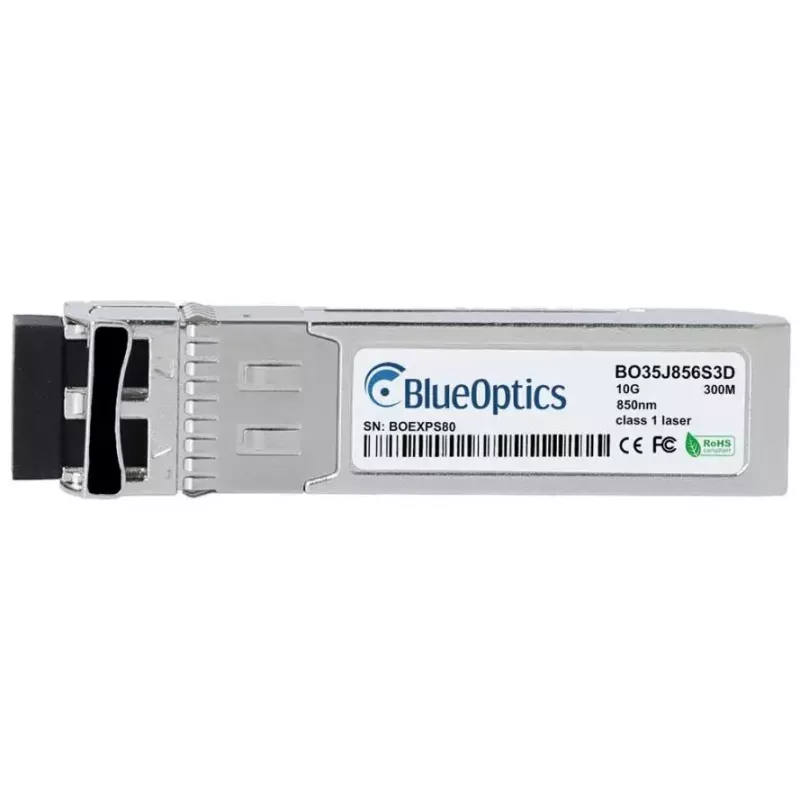

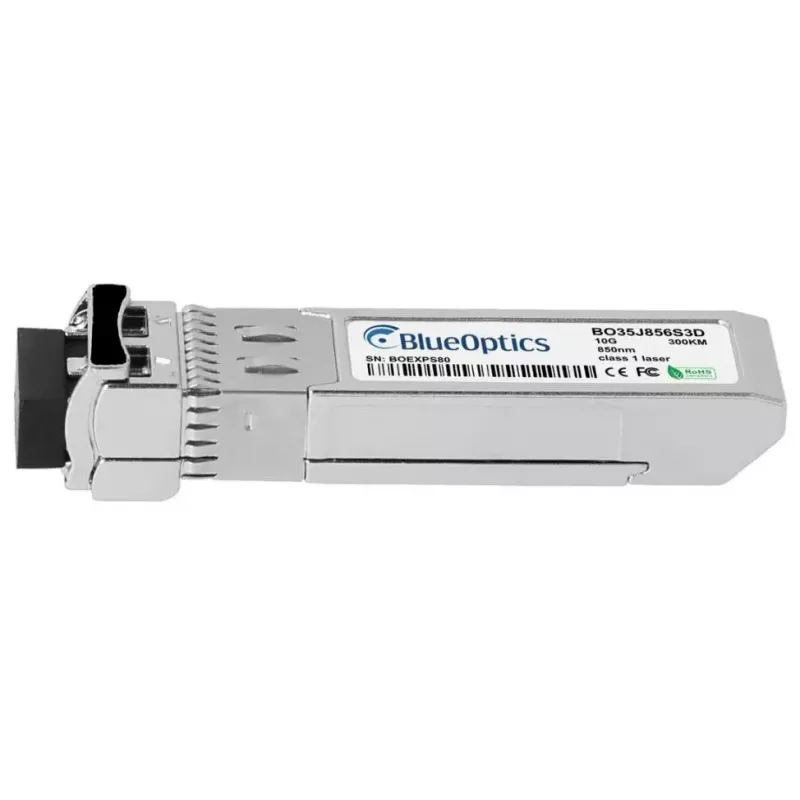

Optický transceiver modul BlueOptics RDH10250/1-BO SFP+ 300m

The BlueOptics RDH10250/1-BO SFP+ 300m is a 10GBASE-SR fiber optic transceiver module in an aluminium housing, designed for short-range high-speed data transmission over multi-mode fiber up to 300 meters. The module uses an LC duplex connector, supports simultaneous transmit and receive with 850 nm wavelength lasers, and follows MSA SFP+ form-factor standards to ensure fit and interoperability with compatible networking hardware. The compact, lightweight design (approximately 20 g) suits installation in switches, routers, storage systems and other 10G-capable devices.

Advantages

The transceiver offers 10 Gbps data rates over multimode fiber with an LC duplex interface and is engineered for compatibility with equipment that accepts SFP+ 10GBASE-SR modules. Manufactured to MSA guidelines with quality optical and electronic components, it provides digital diagnostics monitoring (DDM/DOM) capability for real-time parameters such as supply voltage, laser bias current, output power, received power and temperature where supported by host hardware. The aluminium casing and standardized SFP+ form factor make the module easy to handle, install and replace.

Suitable for

Key specifications

How to use

Install the BlueOptics RDH10250/1-BO into an available SFP+ slot on a compatible switch, router or host adapter, taking care to follow the device manufacturer’s hot-plug and electrostatic discharge (ESD) handling guidelines. Connect an LC duplex multimode patch cable between transceivers on each end of the link and verify link status through the host device. If DDM/DOM is required, enable diagnostic monitoring in the host system and read real-time parameters via the management interface. Ensure fiber polarity and patch panel routing are correct to avoid link issues.

Recommendations

Use OM3/OM4 multimode fiber and high-quality LC duplex patch cords to achieve the specified 300 m reach with minimal attenuation. Verify that the target hardware supports third-party SFP+ modules and DDM/DOM if diagnostics are needed. Handle the module with ESD protection, keep connector endfaces clean, and store unused transceivers with dust caps to maintain optical performance.
