OPTICUM OMS 5/24 PRO-TRQ Multiswitch (Platinium Line) 24 výstupov

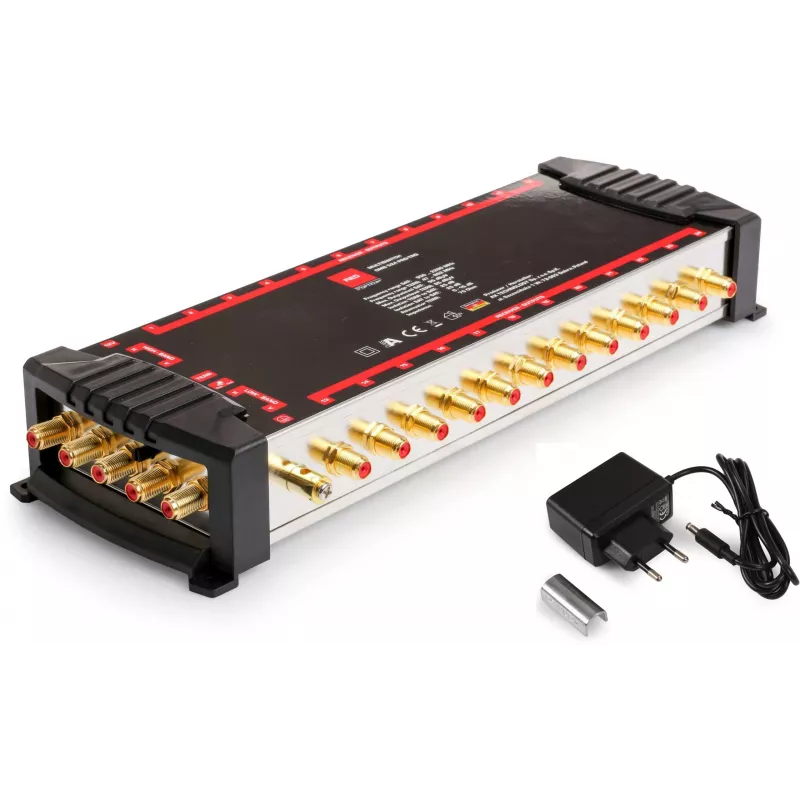

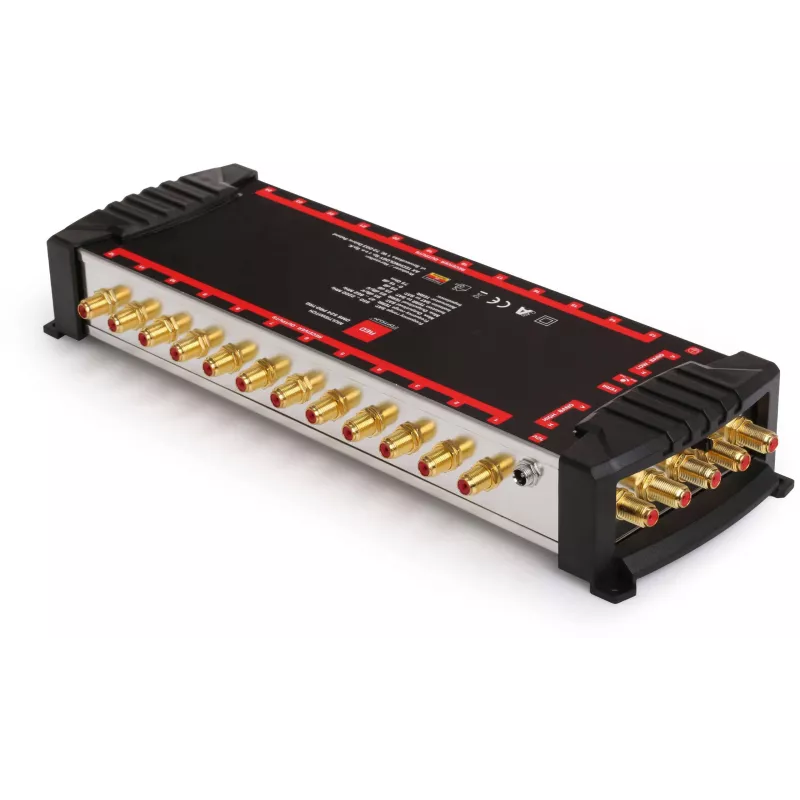

The OPTICUM OMS 5/24 PRO-TRQ is a high-performance multiswitch from the Platinium Line, designed for professional satellite and terrestrial signal distribution. With 4 satellite inputs (H/V, Low/High Band) and 1 terrestrial input, it provides 24 subscriber outputs, making it ideal for multi-dwelling units, hotels, or large residential installations. The unit features an internal power supply (230V AC) and supports DiSEqC 2.0 switching protocol, ensuring reliable signal routing.

Advantages

This multiswitch offers excellent signal isolation (>30 dB between inputs and outputs), minimizing interference. Its passive terrestrial path ensures compatibility with existing terrestrial TV signals. The metal housing provides durability and effective heat dissipation. With a compact design and easy installation, it is a cost-effective solution for distributing satellite and terrestrial TV to multiple users.

Suitable for

• Multi-dwelling units (apartment buildings)
• Hotels and hospitality venues
• Office buildings requiring shared TV distribution
• Large residential homes with multiple rooms

Key specifications

• Number of Satellite Inputs: 4 (H/V, Low/High Band)
• Number of Terrestrial Inputs: 1
• Number of Subscriber Outputs: 24
• Satellite Frequency Range: 950 - 2150 MHz
• Terrestrial Frequency Range: 47 - 862 MHz
• Satellite Path Gain: 0 dB (typical)
• Terrestrial Path Gain: -2 dB (typical)
• Max Output Level (Satellite): 100 dBµV
• Max Output Level (Terrestrial): 90 dBµV
• LNB Power Supply: 18V DC, 500mA max
• Switching Protocol: 13/18V, 0/22kHz, DiSEqC 2.0 (compatible with 1.0/1.1)
• Input Isolation (SAT-SAT): >30 dB
• Input Isolation (SAT-TER): >30 dB
• Output Isolation (Subscriber): >30 dB
• Power Supply: Internal AC 230V, 50/60Hz
• Power Consumption: ~10W (without LNB)
• Operating Temperature: -20°C to +50°C
• Housing Material: Metal
• Line Series: Platinium Line

Recommendations

For optimal performance, use high-quality coaxial cables and ensure proper grounding. The multiswitch is compatible with standard satellite LNBs and terrestrial antennas. Professional installation is recommended to maximize signal quality.
