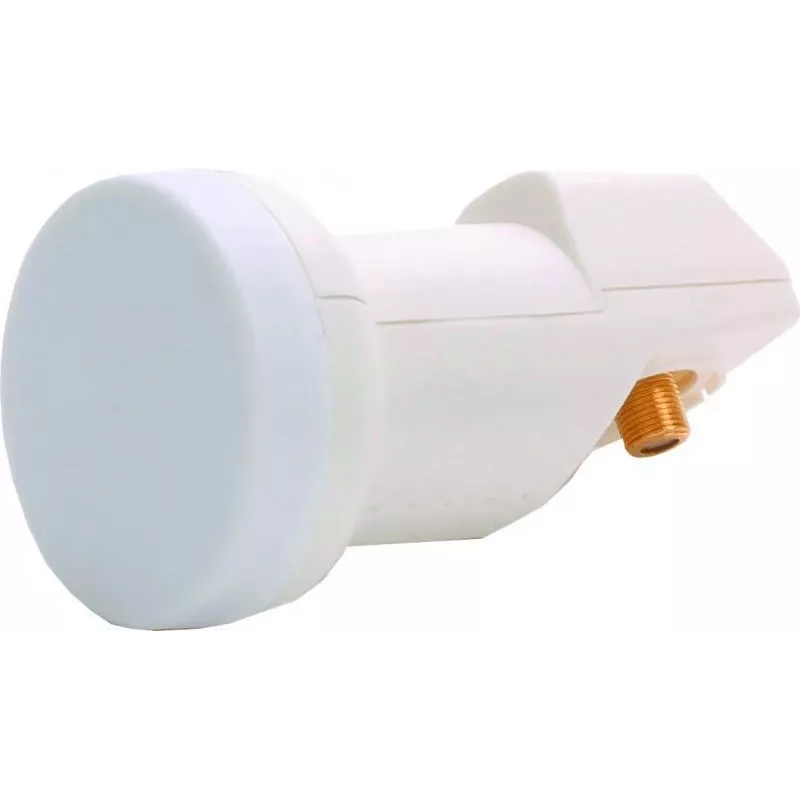

OPTICUM RED ROBUST Single LNB konvertor

Weak satellite signal and weather interference can ruin your TV experience. The OPTICUM RED ROBUST Single LNB Konwerter solves this with a remarkably low 0.1 dB noise figure and fully waterproof construction, ensuring stable reception even in heavy rain or snow. Its high conversion gain of up to 65 dB pulls in weak transponders, while the 40 mm feedhorn fits standard dishes for easy installation.

Who is it for

Perfect for home users and installers who need a dependable single-output LNB for one receiver. Whether you're setting up a new dish or replacing an old, noisy LNB, this model delivers clear, uninterrupted satellite TV.

Main features

• Ultra-low noise figure: 0.1 dB for crystal-clear signal
• Fully waterproof housing for all-weather durability
• High conversion gain: 50–65 dB to boost weak signals
• Wide input range: 10.7–12.75 GHz covers all common Ku-band satellites
• Universal LNB with 9.75/10.6 GHz LO frequencies for low and high band
• F-type output connector for standard coaxial cables

Specifications

• LNB Type: Single
• Noise Figure: 0.1 dB
• Input Frequency Range: 10.7 - 12.75 GHz
• Output Frequency Range: 950 - 2150 MHz
• Low Band LO Frequency: 9.75 GHz
• High Band LO Frequency: 10.6 GHz
• Conversion Gain: 50 - 65 dB
• Feed Horn Diameter: 40 mm
• Output Connector: F-Type
• Number of Outputs: 1
• Polarization: Linear (Horizontal/Vertical)
• Power Consumption: Max. 120 mA
• Operating Voltage: 11.5 - 19 V DC
• Operating Temperature: -30°C to +60°C
• Weather Resistance: Fully Waterproof
• Gain Flatness: ±0.5 dB / 26 MHz
• Cross Polarization Isolation: >20 dB
• Image Rejection: >40 dB

Tips

For best results, align your dish precisely and use high-quality RG6 coaxial cable. The waterproof design allows outdoor mounting without extra protection, but ensure the F-connector is properly sealed with weatherproof tape to prevent moisture ingress.
