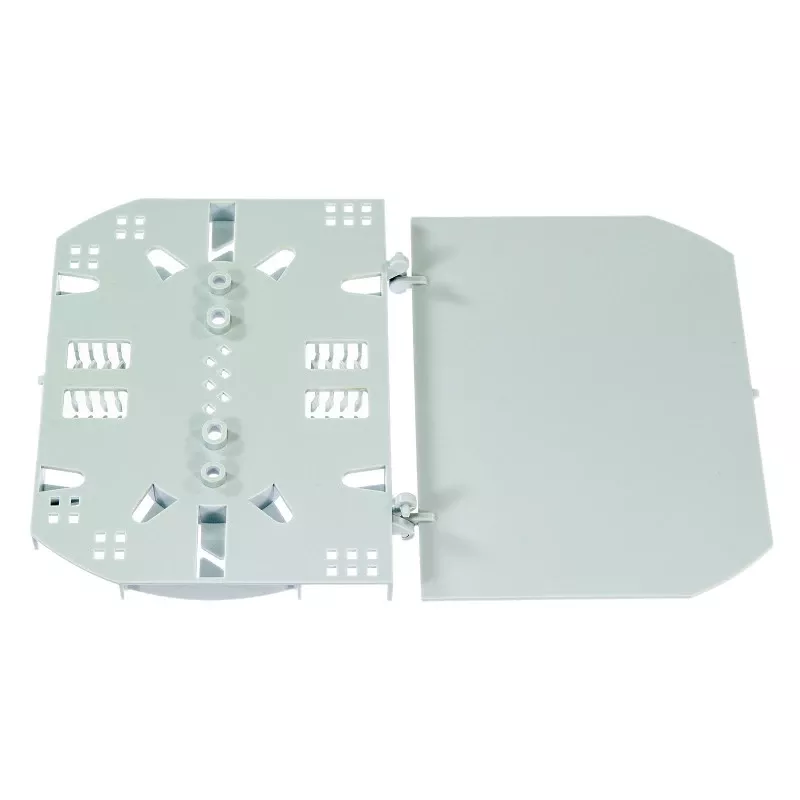

OPTON optická zváracná kazeta 12 zvarov

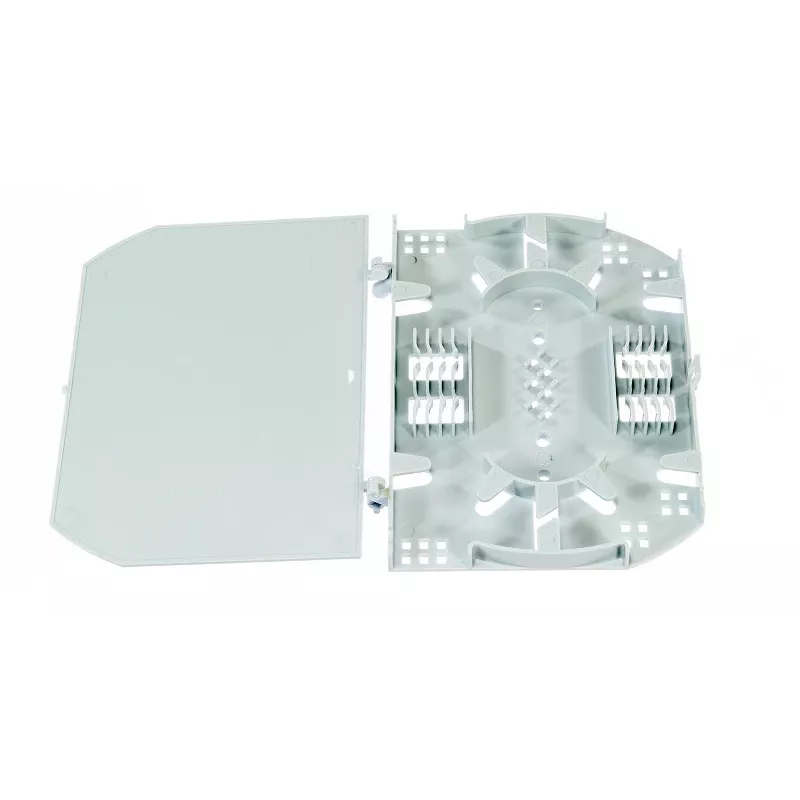

The OPTON Fiber Splice Tray is a high-quality, stackable splice tray designed for organizing and protecting up to 12 fiber splices. Made from impact-resistant ABS plastic, it features integrated fiber routing guides to maintain proper bend radius and a removable transparent cover for easy inspection. Compatible with single-mode and multi-mode fibers, this tray is ideal for use in ODFs, patch panels, and splice closures in both indoor and outdoor environments.

Advantages

This splice tray offers reliable protection for fusion splices with heat shrink sleeves. Its compact design (120 x 90 x 10 mm) saves space in enclosures, while the transparent cover allows quick visual checks without removing the tray. The stackable design enables multiple trays to be used in a single enclosure, maximizing fiber density.

Suitable for

• Fiber optic splice closures
• Optical distribution frames (ODFs)
• Patch panels and termination boxes
• FTTH and indoor/outdoor network installations

Key specifications

• Splice capacity: 12 splices
• Compatible with heat shrink splice protection sleeves
• Material: High-quality ABS plastic, impact-resistant and flame-retardant
• Color: Black
• Mounting: Stackable
• Cover: Removable transparent cover
• Fiber routing: Integrated guides for bend radius control
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Humidity: Up to 95% non-condensing
• Dimensions (L x W x H): 120 mm x 90 mm x 10 mm
• Weight: approx. 0.04 kg
• RoHS compliant

Recommendations

For optimal performance, use with OPTON splice closures and ODF panels. Ensure proper fiber routing to maintain bend radius and avoid signal loss. Suitable for both single-mode and multi-mode fiber networks.
