Výstupná skrinka do racku helos LWL 254640 — LC multimódové x6, 1U

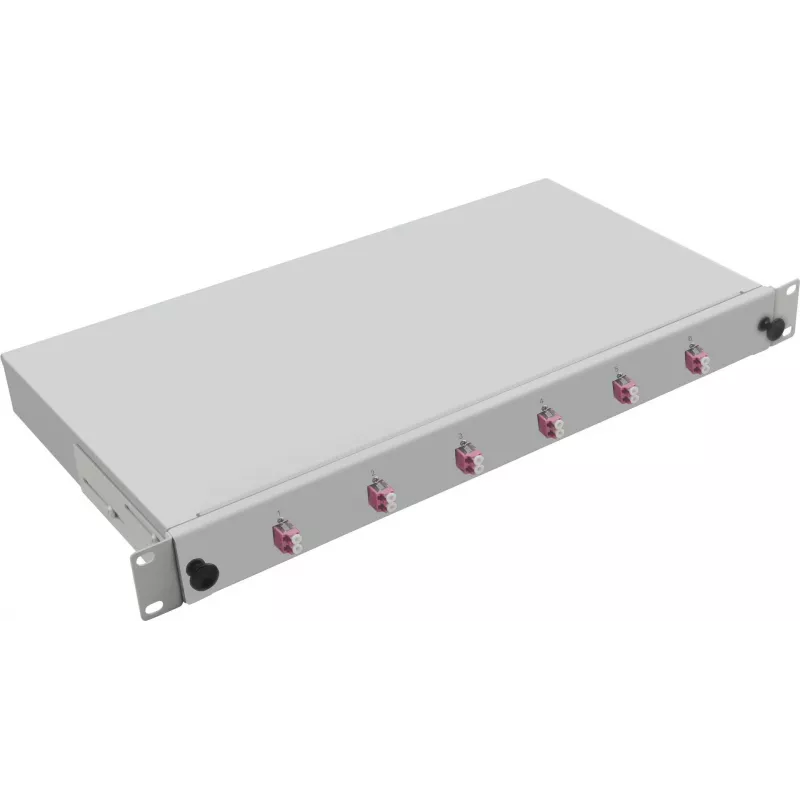

The helos Rack-mountable Breakout Box LWL 254640 is a 1U fiber distribution module that provides six LC multimode (MM) ports for structured patching in server rooms and network racks. The compact panel accepts multimode LC connectors and routes fibers to clearly accessible ports, helping to organize links and simplify patching operations. Its 1U format fits standard 19-inch racks and is intended for use where multiple short-reach multimode connections need tidy termination and easy access for technicians.

Advantages

The module offers six LC multimode ports in a single 1U housing, enabling dense yet orderly distribution of multimode fiber links. The metal housing provides stable mounting in rack environments and protects terminations from accidental strain. A front-facing arrangement of LC ports facilitates quick access for patching and maintenance while reducing cable congestion. The unit is compatible with common multimode patch cords and standard rack infrastructure.

Suitable for

• Fiber-optic patching and distribution in server rooms and data cabinets
• Multimode link consolidation for short-reach connections (e.g., within building or between adjacent racks)
• Organizing and labeling multiple LC multimode terminations for easy maintenance
• Temporary test setups and network reconfiguration tasks

Key specifications

• Form factor: 1U rack-mount module suitable for 19-inch racks
• Connector type: LC duplex multimode interfaces, total of six ports
• Fiber type: Multimode (MM) support for short-reach optical links
• Housing: Metal front panel designed for secure mounting and protection of terminations
• Front access: Ports arranged for convenient front-side connection and visual identification

How to use

Install the breakout box into a 1U space in a standard 19-inch rack using the provided mounting points or compatible rack screws. Route multimode patch cords to the front LC ports, ensuring connectors are fully inserted and latched. Keep fiber bends above the minimum bend radius and avoid placing heavy cable bundles directly on the module to prevent strain. Label ports as required to reflect your network topology and to simplify future maintenance or reconfiguration.

Recommendations

Use short multimode patch cords of appropriate grade (e.g., OM3/OM4 if applicable) for best performance in short-reach applications, and maintain proper cable management to avoid excess bend and strain near the LC terminations. Periodic inspection and cleaning of LC connectors will help maintain reliable optical performance.
