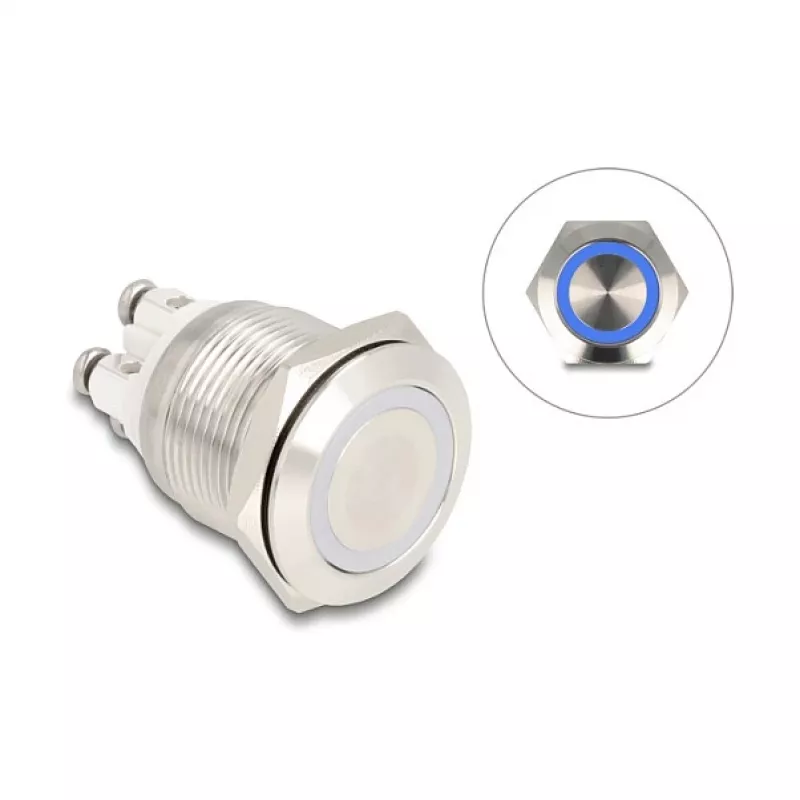

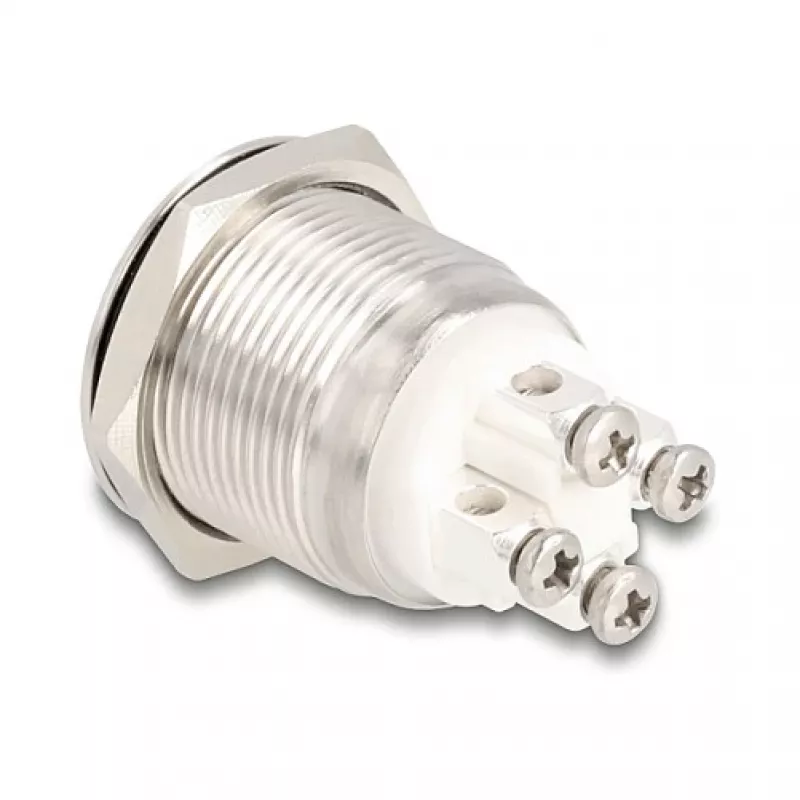

Panel s tlačidlami DeLOCK 20980 strieborný 230V 3A

The DeLOCK 20980 push-button panel is a silver push button made of nickel and stainless steel, designed for installation in control panels and other applications. It operates at 230 V with a maximum switching current of 3 A and has compact dimensions (30 mm wide, 25 mm deep), making it suitable for use in industrial control and regulation technology, automotive applications or consumer devices such as doorbells and timed lighting controls.

Advantages

The push button features a durable nickel and stainless steel construction that resists wear and provides a neat appearance. It supports both normally open (NO, closer) and normally closed (NC, opener) contact functions, allowing flexible wiring for different control schemes. Its rated voltage of 230 V and 3 A current capacity suit a variety of low-power control circuits, while the compact footprint simplifies panel integration.

Suitable for

• Control panels in industry and automation
• Regulation and control technology
• Automotive applications requiring a momentary switch
• Consumer devices such as doorbells or timed corridor lighting

Key specifications

• Model: DeLOCK 20980
• Colour/finish: Silver (nickel and stainless steel)
• Rated voltage: 230 V
• Max switching current: 3 A
• Dimensions: 30 mm (width) x 25 mm (depth)
• Contacts: NO (closer) and NC (opener)
• Brand: DELOCK
• MPN: 20980
• EAN: 4043619209804

How to use

Mount the push button into an appropriately sized panel cut-out and secure it according to the panel manufacturer’s instructions. Wire the NO (closer) and NC (opener) contacts to the control circuit terminals as required: the NO contact closes when the button is pressed, and the NC contact opens when pressed. Ensure that the connected circuit does not exceed the rated 230 V and 3 A. After wiring, verify proper operation by pressing the button and checking the response of the connected device.

Recommendations

Use the push button in environments and circuits compatible with its 230 V / 3 A rating; avoid exposure to corrosive chemicals and excessive moisture. For safety, disconnect power before installation or maintenance and follow applicable electrical codes.
