Panel ventilátorov EFB Elektronik 691659TSV3

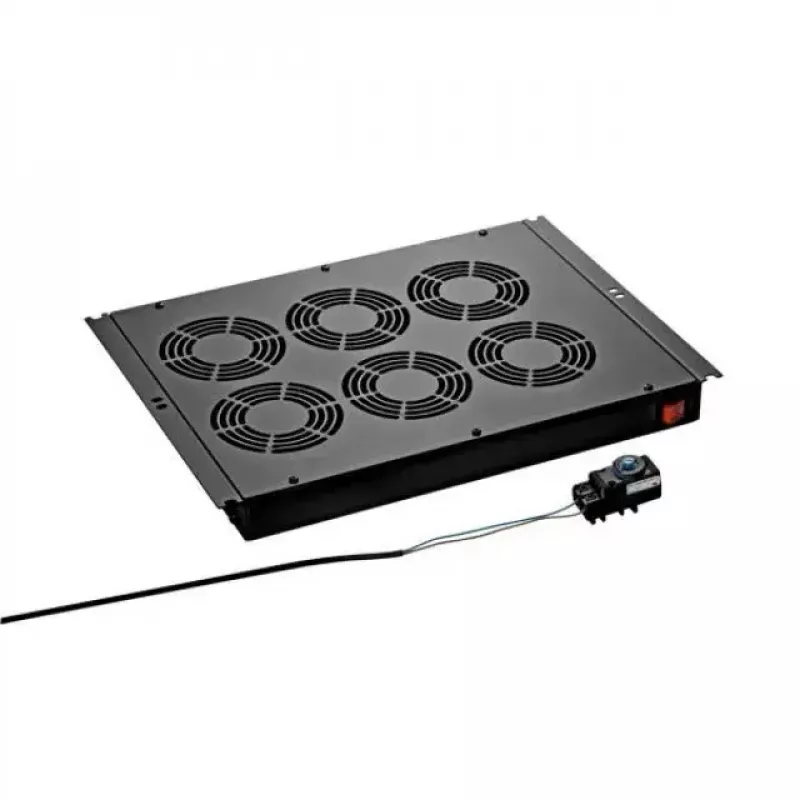

The EFB Elektronik 691659TSV3 fan panel is a 19" cooling panel for installation in the roof of networking and server cabinets. Constructed from steel sheet with a light grey (RAL7035) or jet black (RAL9005) paint finish, the panel measures 482 mm in width and 352 mm in depth, and is designed for efficient airflow in standard 19" racks. It operates from AC mains at a rated voltage of 230 V and 50 Hz and includes a thermostat and mounting material.

Advantages

The fan panel provides reliable cooling in rack systems with a robust steel housing and rear-sided power and earth connections. It includes an illuminated ON/OFF switch and a thermostat for controlled operation. 19" mounting is possible with the optional mounting set, and the design supports rear-sided IEC C14 power connection for easy cabling.

Suitable for

• Cooling networking cabinets
• Cooling server cabinets
• Use in 19" rack systems with roof installation

Key specifications

• Model: EFB Elektronik 691659TSV3
• Type: Fan panel
• Width: 482 mm (19")
• Depth: 352 mm
• Rated voltage: 230 V, 50 Hz
• Power connection: IEC C14 (power cable not included)
• Includes: thermostat and mounting material
• Housing material: steel sheet
• Finish: RAL7035 light grey / RAL9005 jet black
• Weight: 7.9 kg

How to use

Install the fan panel in the roof of the networking or server cabinet and secure it using the included mounting material or the optional 19" mounting set (Art.-No. 691654MS / 691654MSTS) when required. Connect mains power to the rear IEC C14 socket using a suitable power cable and attach the earth connection via the rear earth jack. Configure the connected thermostat (Art.-No. 691642) to the desired temperature setpoint and operate the unit using the illuminated ON/OFF switch. Ensure the unit is mounted so that airflow is not obstructed.

Recommendations

Use an appropriate mains cable compatible with the IEC C14 inlet and ensure the thermostat is installed and adjusted according to the cabinet's thermal requirements. Regularly check filters and clearances to maintain airflow and cooling performance.
