Patch kábel CAT6 U-UTP 1,5 m, DIGITUS, tenký, čierny

DIGITUS CAT6 U-UTP slim patch cable, 1.5 m, black is an unshielded twisted-pair Ethernet patch lead designed for CAT6 performance up to 250 MHz and transmission speeds up to 1 Gbit/s. The cable features a reduced outer diameter and a flexible jacket for easy routing in patch panels, wall sockets and tight spaces between devices. Stranded AWG 32/7 bare copper conductors and standardized manufacturing in accordance with ISO/IEC 11801 and EN 50173 ensure reliable signal transmission and compatibility with structured cabling installations in homes and offices.

Advantages

The slim 2.7 mm diameter and flexible LSZH jacket allow space-saving installation in high-density cabling environments while maintaining PoE and PoE+ capability thanks to pure copper conductors. Molded anti-kink sleeves with strain relief and locking lever protection reduce the risk of connector damage and improve durability. The cable complies with international cabling standards, offering predictable electrical characteristics and a service life sufficient for frequent reconnects.

Suitable for

• Connecting routers, switches and network devices in home and office LANs
• Use in patch panels and rack-mounted equipment with limited space
• Cable runs behind furniture, in wall sockets and media cabinets
• PoE and PoE+ powered devices such as IP phones, access points and cameras

Key specifications

• Cable category: CAT6 U-UTP (unshielded twisted pair)
• Length: 1.5 m
• Outer jacket: LSZH (Low Smoke Zero Halogen)
• Total diameter: 2.7 mm ± 0.15 mm
• Conductor type: stranded bare copper AWG 32/7
• Insulation: HD-PE (high-density polyethylene)
• Frequency range: up to 250 MHz
• Supported speed: up to 1 Gbit/s (1000BASE-T)
• Bending radius: 15 × outer diameter

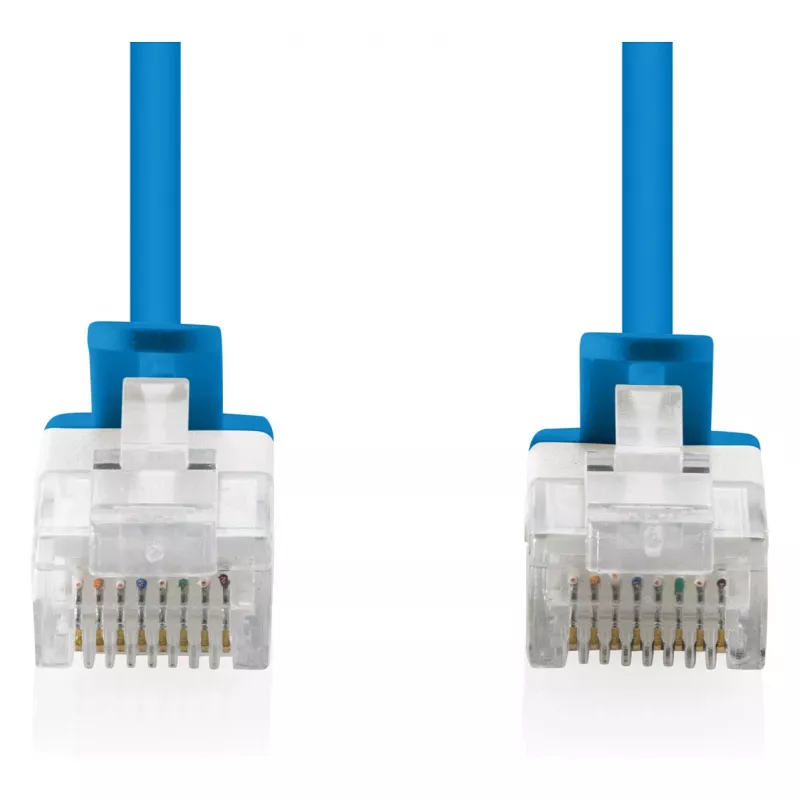

• Connector: RJ45 plug with molded strain relief and locking lever protection
• Operating temperature: -20 °C to +60 °C
• Flame and smoke standards: IEC 60332-1, IEC 61034
• Typical applications: 10BASE-T, 100BASE-T, 1000BASE-T
• Service life: 750 mating cycles

How to use

Insert the RJ45 plug into the device or patch panel port until the locking tab clicks. Route the slim cable through cable ducts, behind furniture or in patch panels as required, observing the recommended bending radius to avoid sharp bends. For PoE-powered devices, connect the cable to a PoE-capable switch or injector and the powered device; the cable's copper conductors support PoE and PoE+ applications. Avoid stretching the cable or applying excessive force to the connector to maintain service life.

Recommendations

Maintain the specified bending radius (minimum 15× outer diameter) and avoid tight kinks near the connector. For long-term installations in conduit or trunking, ensure cables are not tightly bundled with heat sources and allow ventilation. Use the slim DIGITUS CAT6 U-UTP patch cable for short runs and high-density areas where reduced cable diameter facilitates easier routing and cleaner installations.
