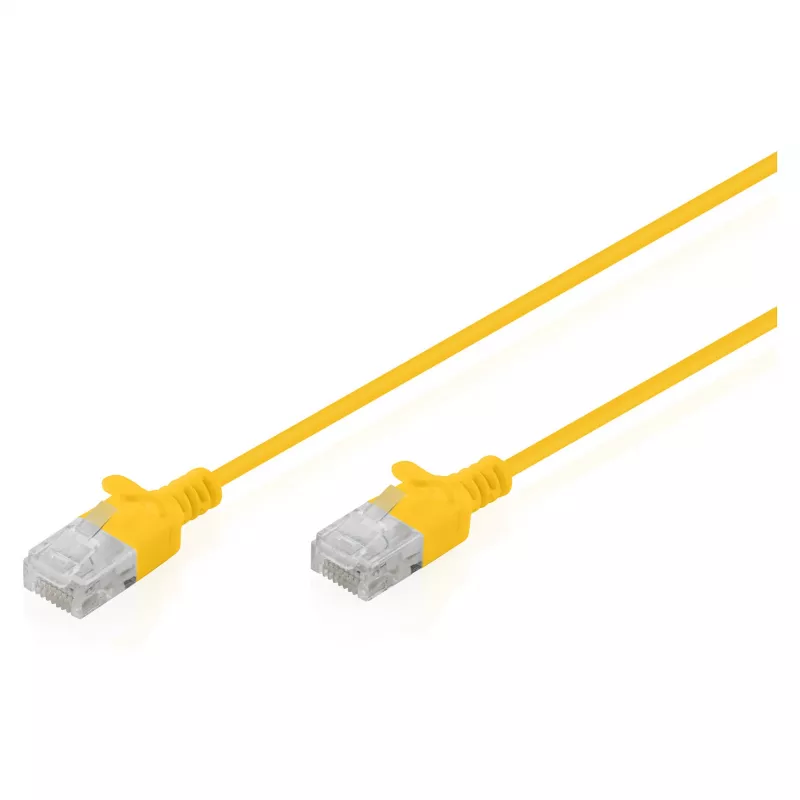

Patch kábel CAT6 U-UTP tenký, DIGITUS DK-1618-010S-Y, 1 m, žltý

DIGITUS CAT6 U-UTP slim patch cable, 1 m, yellow. This unshielded twisted-pair (U-UTP) RJ45 patch lead supports CAT6 performance up to 1 Gbit/s and 250 MHz, designed for space-saving installations in offices, data cabinets and home networks. The cable features a slim outer diameter and a flexible jacket combined with stranded copper conductors to balance routing convenience and reliable signal transmission. Molded strain relief and a locking lever protector reduce the risk of connector damage and unlocking during regular use.

Advantages

The slim 2.7 mm diameter and flexible LSZH jacket enable easy routing in confined spaces and high-density patching environments while maintaining CAT6 electrical characteristics for gigabit Ethernet. Stranded AWG 32/7 bare copper conductors provide flexibility for frequent handling, and the cable supports PoE and PoE+ thanks to pure copper conductors. Compliance with ISO/IEC 11801 and EN 50173 standards ensures compatibility with structured cabling systems.

Suitable for

• Office patch panels and wall outlets in structured cabling installations
• Home networks and connecting routers, switches and PCs
• High-density cable channels and cable management ducts
• PoE and PoE+ powered devices such as IP phones and access points

Key specifications

• Cable category: CAT6 (U-UTP)
• Length: 1 m
• Conductor: stranded copper AWG 32/7
• Outer jacket material: LSZH (Low Smoke Zero Halogen)
• Total diameter: approx. 2.7 mm ± 0.15 mm
• Insulation: HD-PE (high-density polyethylene)
• Rated frequency: up to 250 MHz
• Maximum transmission speed: up to 1 Gbit/s (1000BASE-T)

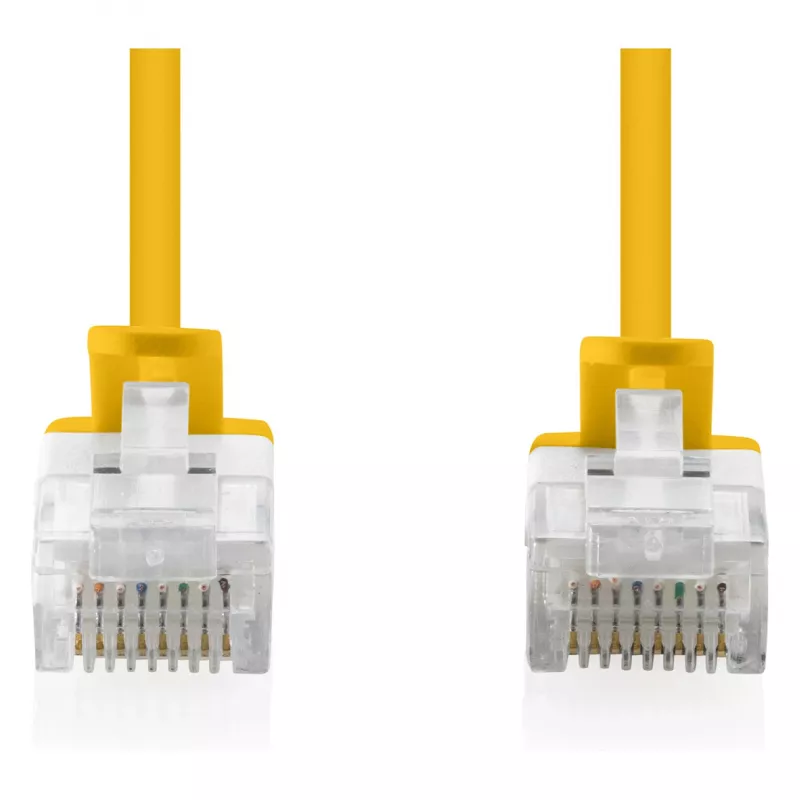

• Plug type: RJ45 with molded strain relief and locking lever protection
• Bending radius: 15 × outer diameter
• Operating temperature range: -20 °C to +60 °C
• Flame and smoke: IEC 60332-1 flame retardancy, IEC 61034 smoke emission
• Service life: approximately 750 mating cycles

How to use

Connect one RJ45 plug to the network device (switch, router or patch panel) and the other plug to the target device (PC, access point, IP phone). Ensure the locking clip engages to secure the connection and avoid excessive bend radii near the connector. For installations in cabinets or ducts, route the slim cable along cable guides and secure with appropriate cable ties or management accessories that do not compress the jacket.

Recommendations

Use this slim CAT6 U-UTP patch cable where space is limited or high-density cabling is required. Avoid running the cable in parallel and close proximity to high-voltage power lines to reduce potential interference. For permanent horizontal or backbone cabling, consider using solid-core cabling designed for installation; this stranded patch cable is intended for patching and device connections.
