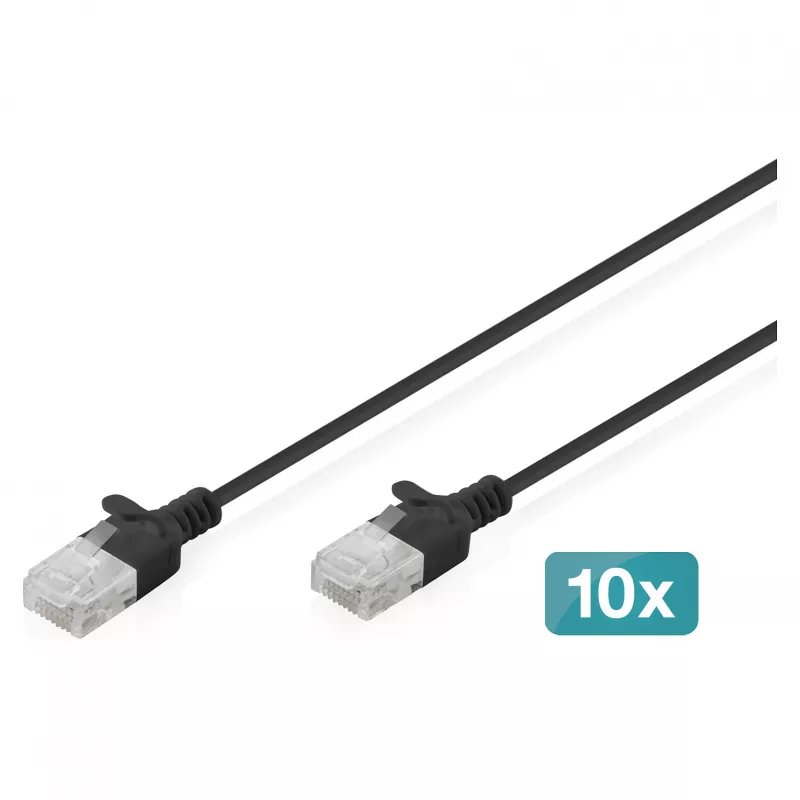

Patch kábel DIGITUS CAT6 U-UTP tenký 1,5 m, čierny — balenie 10 ks

DIGITUS CAT6 U-UTP Slim 1.5 m patch cable set contains ten slim black unshielded twisted-pair Ethernet patch cords designed for Gigabit Ethernet networks. Each 1.5 m cable meets CAT6 performance parameters with a transmission frequency up to 250 MHz and supports speeds up to 1 Gbit/s. The reduced outer diameter and flexible LSZH jacket make these cables suitable for dense patch panels, switches and installations where space and neat cable management are required. Cables use stranded bare copper conductors and molded RJ45 plugs with strain relief and locking lever protection for reliable connections and extended service life.

Advantages

The slim 2.7 mm cable diameter and flexible jacket enable neat routing in confined spaces and high-density environments without sacrificing CAT6 performance. Compliance with ISO/IEC 11801 and EN 50173 standards ensures predictable electrical characteristics and interoperability in structured cabling systems. Stranded AWG 32/7 bare copper conductors provide required flexibility for frequent moves or patching, while molded anti-kink sleeves and locking lever protection reduce the risk of connector damage. LSZH outer sheath offers low smoke and halogen-free properties for installations in offices and data cabinets.

Suitable for

• Office patch panels and switch interconnections
• Home network wiring and desktop connections
• High-density racks and cable trays where space is limited
• PoE and PoE+ device connections (supported by pure copper conductors)

Key specifications

• Cable type: Unshielded twisted pair (U-UTP), slim design
• Length: 1.5 m per cable
• Conductor: Stranded bare copper AWG 32/7
• Outer diameter: approx. 2.7 mm ± 0.15 mm
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Insulation: High-density polyethylene (HD-PE)
• Frequency: up to 250 MHz
• Maximum data rate: up to 1 Gbit/s (1000BASE-T)

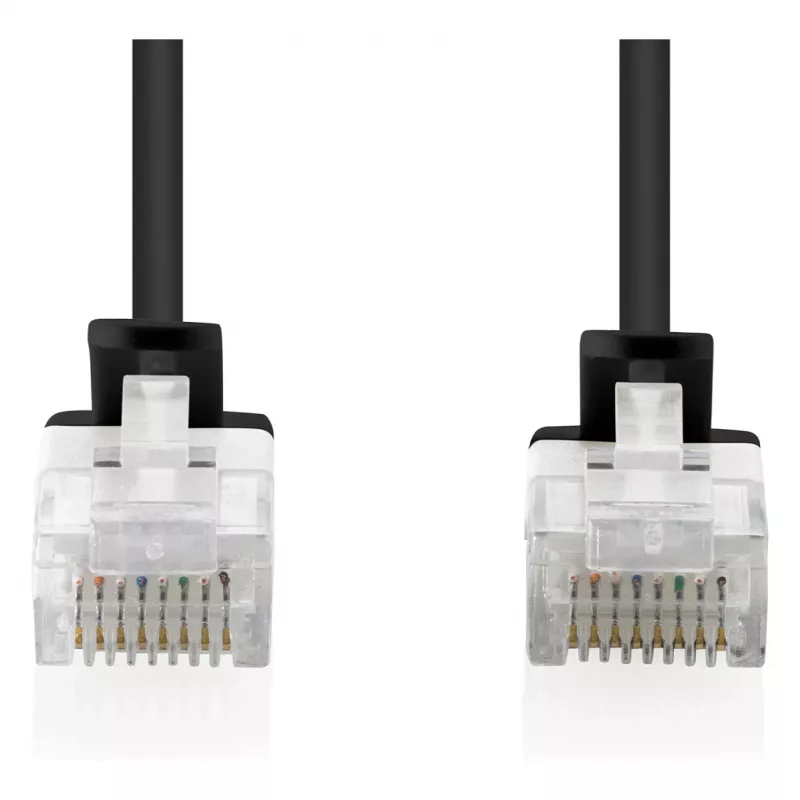

• Plug: RJ45 with molded strain relief and locking lever protection
• Bending radius: 15 × outer diameter
• Operating temperature range: -20 °C to +60 °C
• Flame and smoke: IEC 60332-1 and IEC 61034 compliant
• Typical applications: 10BASE-T, 100BASE-T, 1000BASE-T
• Service life: approx. 750 mating cycles
• Pack quantity: 10 cables

How to use

Connect each DIGITUS CAT6 U-UTP Slim patch cable between RJ45 ports on switches, patch panels, routers or network devices. Route the slim cables through cable management channels or around equipment to maintain tidy runs and respect the minimum bending radius to avoid impairing signal quality. When plugging or unplugging, hold the molded strain relief rather than pulling the cable jacket to reduce stress on the connector and locking lever protection. These cables are ready for immediate use in standard Ethernet installations supporting CAT6 wiring practices.

Recommendations

For best performance, avoid tight bends and prolonged compression in cable bundles; maintain separation from high-voltage power cables where possible and follow EIA/TIA 568B pin assignment for consistent termination. These slim cables are suitable for PoE/PoE+ applications but verify device power requirements and aggregation of heat in dense bundles to ensure reliable operation.
