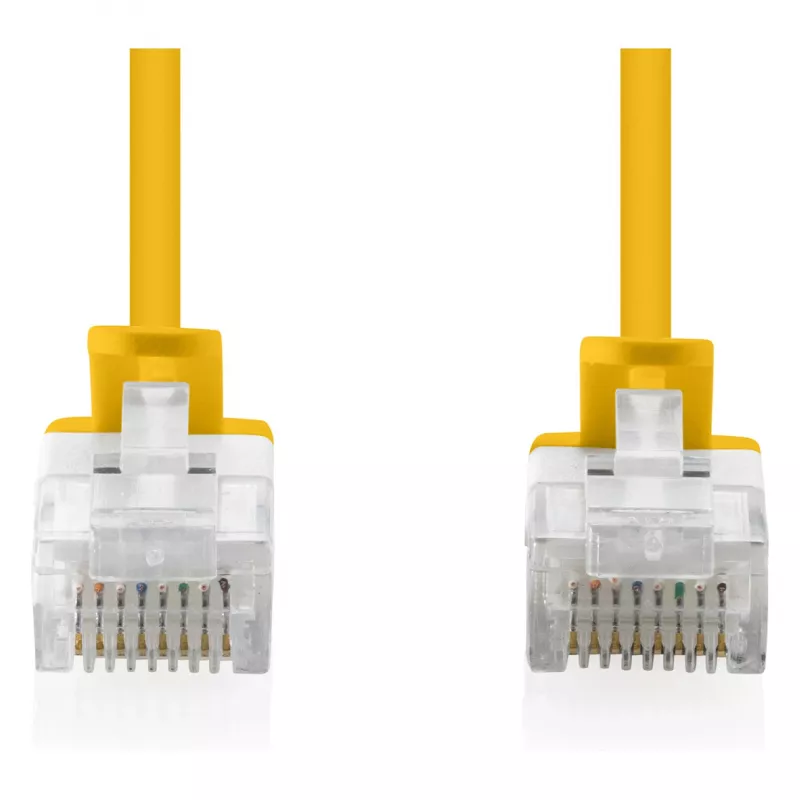

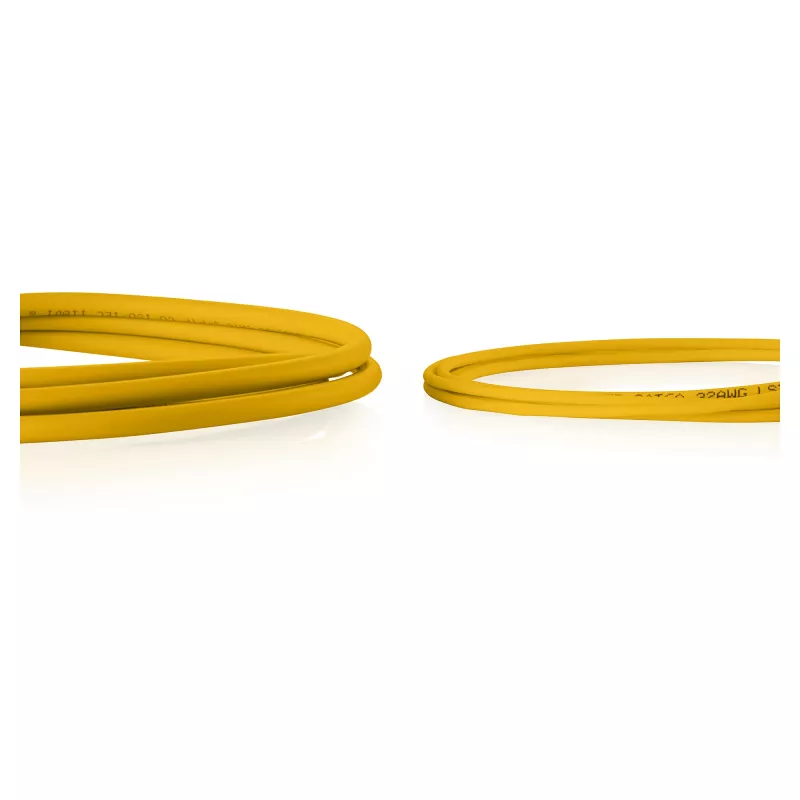

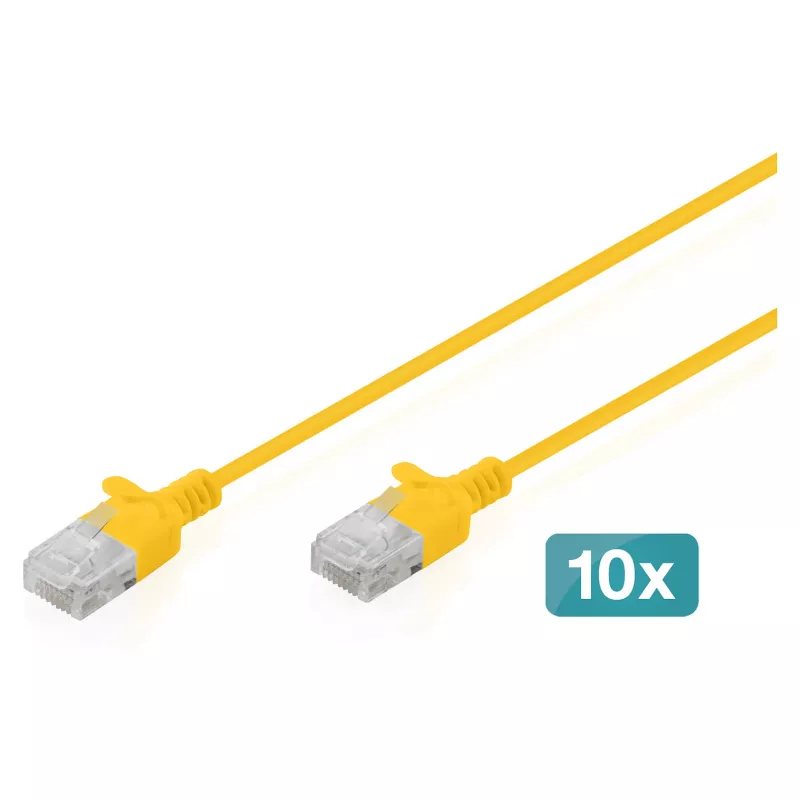

Patch kábel DIGITUS CAT6 U-UTP tenký, 3 m, žltý — balenie 10 ks

DIGITUS CAT6 U-UTP Slim patch cable, 3 m, yellow — pack of 10. These unshielded twisted-pair Ethernet patch leads deliver CAT6 performance for Gigabit networks with a slim flat design that saves space and simplifies cable routing. Each cable features RJ45 terminations and a molded anti-kink sleeve with strain relief to protect the connector and locking tab. The cables use stranded AWG 32/7 bare copper conductors and an HD-PE insulation, meeting ISO/IEC 11801 and EN 50173 CAT6 specifications for consistent transmission up to 250 MHz and data rates up to 1 Gbit/s. Supplied in DIGITUS hangtag packaging, the set of ten yellow cables is intended for structured cabling in homes, offices and high-density rack or patch-panel environments.

Advantages

The slim outer diameter of 2.7 mm and a flexible jacket enable space-saving installation in cable ducts, under carpets or behind furniture while maintaining mechanical durability. Unshielded twisted pair construction combined with stranded copper conductors provides flexibility for frequent reconnections and routing in confined spaces. The cables support PoE and PoE+ applications and comply with industry cabling standards, ensuring compatibility with standard switches, routers and patch panels. Built-in strain relief and locking lever protection reduce the risk of connector damage during handling.

Suitable for

• Office network connections between switches, patch panels and workstations
• Home networking for routers, NAS devices and media players
• High-density cabling in data cabinets, racks and shelving
• PoE and PoE+ powered devices such as IP phones, cameras and Wi-Fi access points

Key specifications

• Cable category: CAT6 (U-UTP)
• Nominal length: 3 m
• Transmission frequency: up to 250 MHz
• Maximum data rate: up to 1 Gbit/s (1000BASE-T)
• Conductor type: stranded bare copper AWG 32/7
• Insulation: HD-PE (high-density polyethylene)
• Outer jacket: LSZH (Low Smoke Zero Halogen)
• Total diameter: approx. 2.7 mm
• Bending radius: 15 × outer diameter
• Connector: RJ45 with molded strain relief and locking lever protection
• Cabling standard: EIA/TIA 568B
• Operating temperature range: -20 °C to +60 °C
• Flame and smoke: IEC 60332-1 / IEC 61034 compliant
• Dielectric strength test: 500 V AC for 1 minute without breakdown
• Service life (mating cycles): typically 750 mating cycles
• Quantity in pack: 10 pieces

How to use

Connect one end of the RJ45 patch cable to the network port of a switch, router, patch panel or network device and the other end to the target device. Ensure the locking tab engages with the port to secure the connector. Route the slim cable through ducts, under flooring or along cable channels to minimize visible wiring and avoid tight bends that violate the specified bending radius. For PoE devices, verify that the power sourcing equipment supports the required PoE class and that cables are fully seated in the connectors.

Recommendations

For reliable performance, avoid kinking or sharply bending the cable and keep separation from high-voltage power lines to reduce potential interference. Use appropriate cable management (labels, ties or clips) in patch panels and racks to maintain bend radius and facilitate maintenance. When installing in environments requiring low smoke and halogen-free materials, the LSZH jacket matches those requirements. Store unused cables in original packaging to protect connectors and maintain service life.
