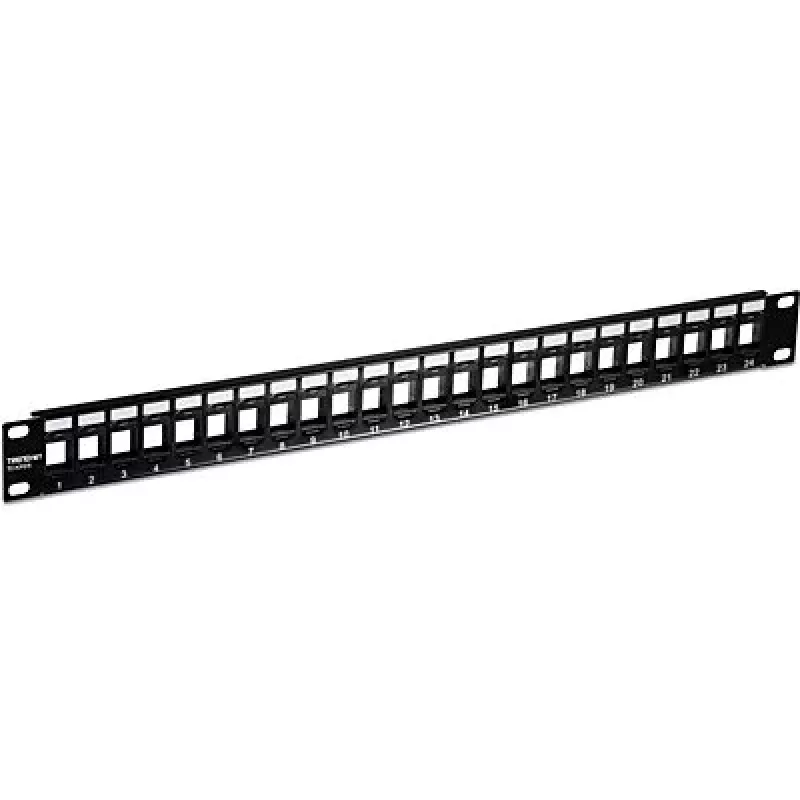

Patch Panel 1U Trendnet TC-KP24

The Trendnet TC-KP24 is a 1U rack-mountable patch panel designed to organize and present network cabling in professional IT environments. Constructed from durable ABS and SPCC materials, the panel offers a slim profile with a width of 483 mm, height of 45 mm and depth of 10 mm. Its black finish provides a consistent aesthetic in server rooms and network cabinets while supporting tidy cable routing for up to 24 ports.

Advantages

The TC-KP24 combines a compact 1U form factor with robust materials to deliver a low-profile, long-lasting mounting point for network terminations. Its 24-port capacity allows consolidated cable management while the black colour and slim depth minimise visual clutter and take up minimal rack space. The panel’s construction balances weight and durability for easy installation and stable mounting in standard 19-inch racks.

Key specifications

• Form factor: 1U rack-mount panel compatible with standard 19-inch racks
• Ports quantity: 24
• Materials: ABS and SPCC for body and structural elements
• Color: Black
• Dimensions (W×H×D): 483 mm × 45 mm × 10 mm
• Weight: 0.26 kg

How to use

Mount the patch panel into a standard 19-inch rack or cabinet using appropriate rack screws and cage nuts. Route individual network cables to the rear termination area and terminate according to the chosen connector type and wiring standard. Use cable management practices such as labeling, bundling and service loops to maintain order and ease of maintenance. Ensure the panel is secured and that cable strain relief is applied where necessary.

Recommendations

Install the panel at an accessible height within the rack and maintain clear labeling for each port to simplify troubleshooting and future moves. Pair with compatible keystone jacks, cable ties and horizontal cable managers to optimize cable layout and preserve signal integrity.
