Patch panel DeLOCK 43297

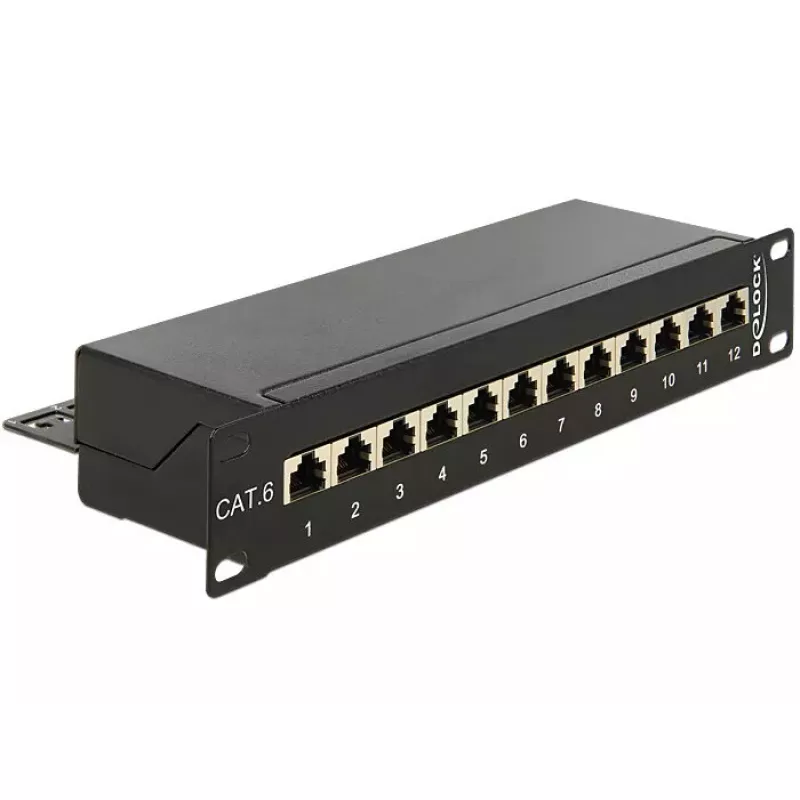

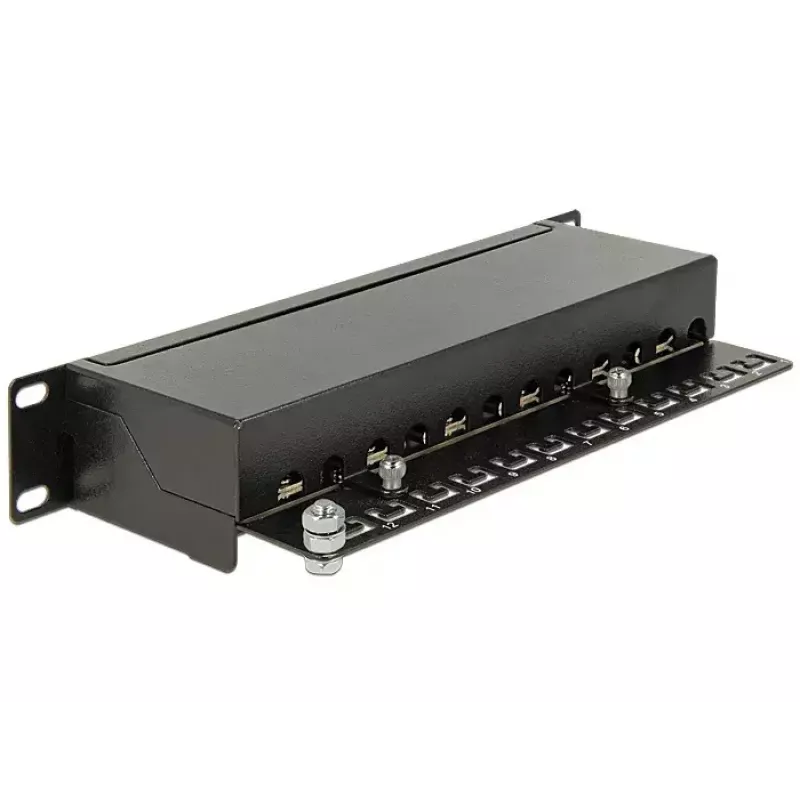

The DeLOCK 43297 patch panel is a 1U rack-mounted unit designed for RJ-45 network connections. It measures 254 mm wide, 44 mm high and 109 mm deep, and is finished in black. The panel accommodates up to 12 network cables terminated on LSA (punch-down) blocks, providing a compact solution for cable organization in a 10" rack.

Advantages

The panel supports 12 ports in a slim 1U form factor, allowing dense cable management in standard 10" racks. Its LSA punch-down blocks simplify termination without additional connectors. The metal construction and standard dimensions ensure compatibility with common rack systems and stable mounting.

Suitable for

• Small server rooms and network closets
• Structured cabling installations requiring up to 12 RJ-45 terminations
• Equipment racks where a 1U, 10" patch panel is needed

Key specifications

• Brand: DELOCK
• Model: 43297
• Ports quantity: 12
• Connector type: RJ-45 (terminated on LSA blocks)
• Form factor: 1U rack mount for 10" racks
• Dimensions (W×H×D): 254 × 44 × 109 mm
• Colour: Black
• EAN: 4043619432974

How to use

Mount the patch panel into a 10" rack using suitable rack screws and cage nuts. Prepare each network cable, insert individual conductors into the corresponding LSA punch-down slots and terminate them with a punch-down tool. Verify correct wiring order and test each link with a network tester after termination.

Recommendations

For reliable performance, use a proper punch-down tool and follow the T568A or T568B wiring standard consistently across all terminations. Label ports after installation to simplify maintenance and troubleshooting.
