Patch panel EFB Elektronik 37595.2

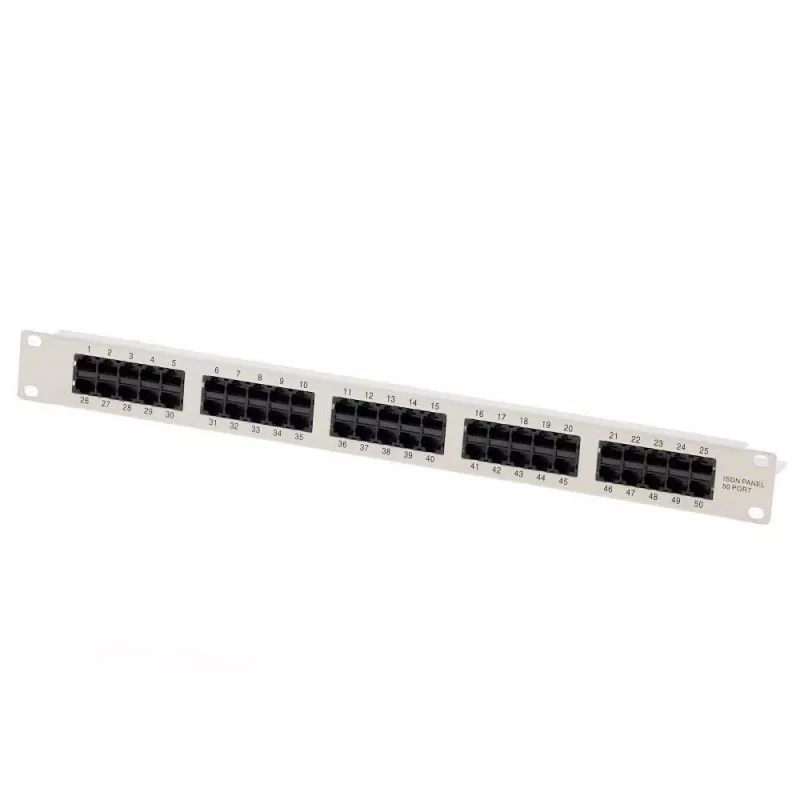

The EFB Elektronik 37595.2 patch panel is a 1U, Category 3 rack-mounted panel with 50 unshielded RJ45 8(4) jacks arranged for high packing density. Designed for standard 19-inch racks (482.6 mm width, 44.5 mm height), the grey metal housing provides a durable mounting solution for structured cabling and simple network terminations. The panel uses 4-pole LSA IDC terminals with assignment 3-6/4-5 and includes strain relief provision via cable ties.

Advantages

The panel offers compact 1U form factor with a high port count of 50, enabling efficient use of rack space. Unshielded RJ45 jacks and 4-pole LSA IDC terminals simplify terminations and maintenance. Its standardized dimensions ensure compatibility with common racks, and built-in strain relief points help secure cabling for reliable connections.

Suitable for

• Patching and terminating Category 3 voice/data cabling
• Small to medium office network distribution
• High-density rack installations where space is limited

Key specifications

• Form factor: 1U, rack-mounted
• Category: Category 3
• Ports: 50 × unshielded RJ45 8(4) jacks
• Termination: 4-pole LSA IDC, assignment 3-6/4-5
• Dimensions (W×H): 482.6 mm × 44.5 mm
• Color: Grey

How to use

Mount the panel in a standard 19-inch rack using appropriate screws. Terminate incoming wires into the LSA IDC terminals following the 3-6/4-5 assignment. Connect patch cables to the RJ45 jacks for network devices. Use cable ties through the provided strain relief points to secure cabling and reduce mechanical stress on terminations.

Recommendations

For reliable performance, use the patch panel with Category 3 cabling and ensure correct pair assignment during termination. Avoid excessive bending of cables at the termination points and fasten cable ties without over-tightening to prevent conductor damage.
