Patch panel Lanberg FOP1-12SS-LDS sivý ABS oceľ 19 palcov

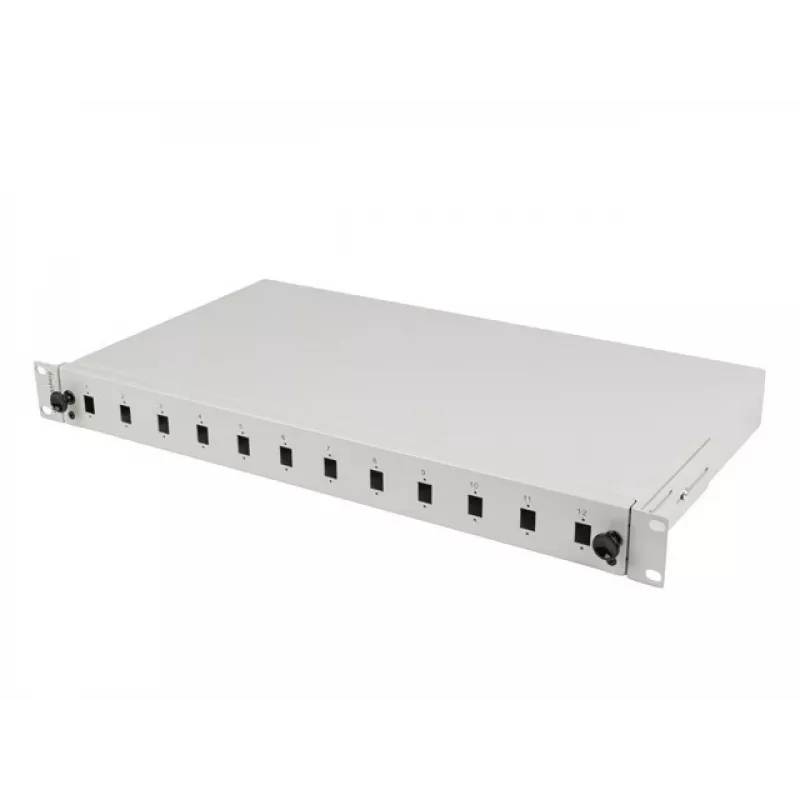

The Lanberg FOP1-12SS-LDS is a 1U high, 19-inch pull-out fiber optic patch panel made of powder-coated steel with ABS elements. Designed for installation in standard 19" data communication cabinets, the unit includes a front panel with port numbering and screw holes for securing adapters, a sliding drawer for organized cable routing and a rear drawer panel with five cable entry points. Adjustable rack ears and included mounting accessories support straightforward installation and stable fixation in racks.

Advantages

The front panel with printed port numbers and adapter screw holes improves adapter alignment and identification. The pull-out drawer enables easy access for installation and maintenance of fiber optic connectors and cables. Durable powder-coated steel construction combined with ABS components provides mechanical protection and long-term reliability. Adjustable handles (rack ears) allow adaptation to varying cabinet depths and secure mounting.

Suitable for

• Fiber optic cable termination and distribution in 19" server/network racks
• Data centers and telecom cabinets requiring organized patching
• Server rooms and network closets where pull-out access is needed for maintenance
• Small and medium enterprise network installations

Key specifications

• Form factor: 1U, 19" rack mount
• Material: powder-coated steel with ABS elements
• Model: Lanberg FOP1-12SS-LDS (MPN: FOP1-12SS-LDS, EAN: 5901969430608)

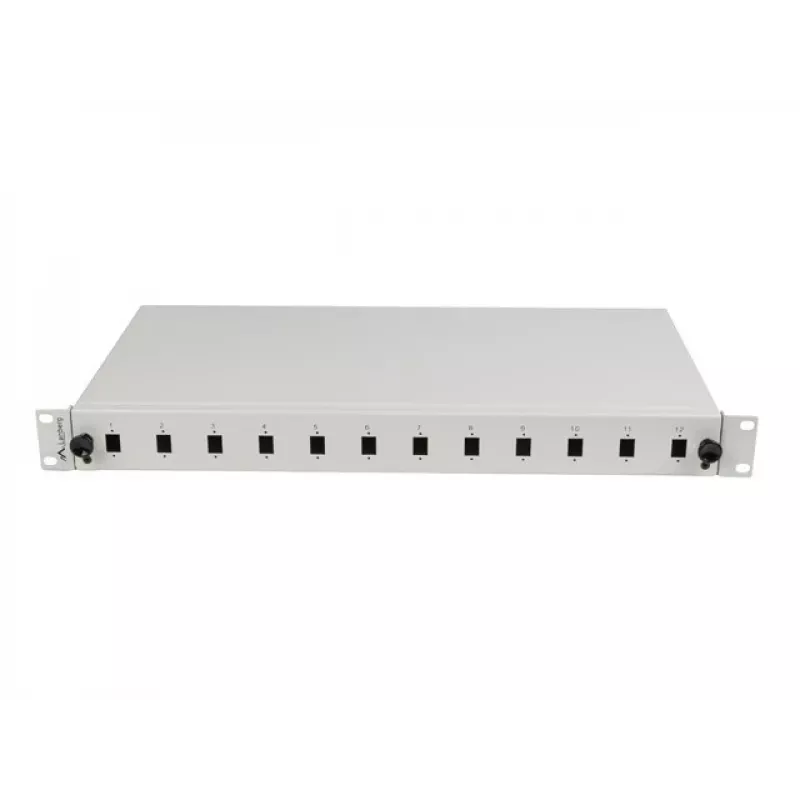

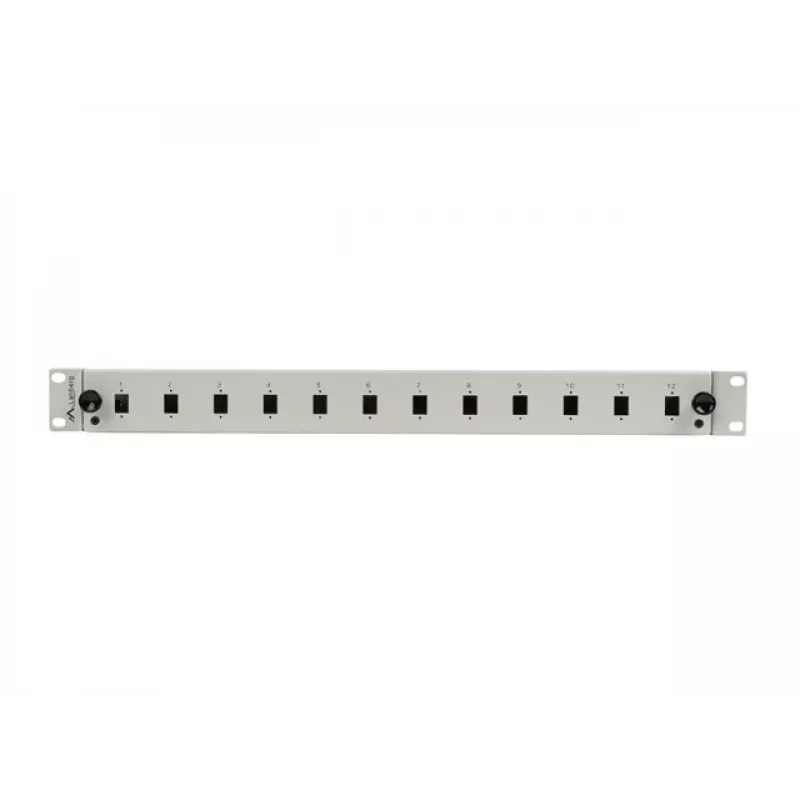

• Front panel: numbered ports and screw holes for adapters

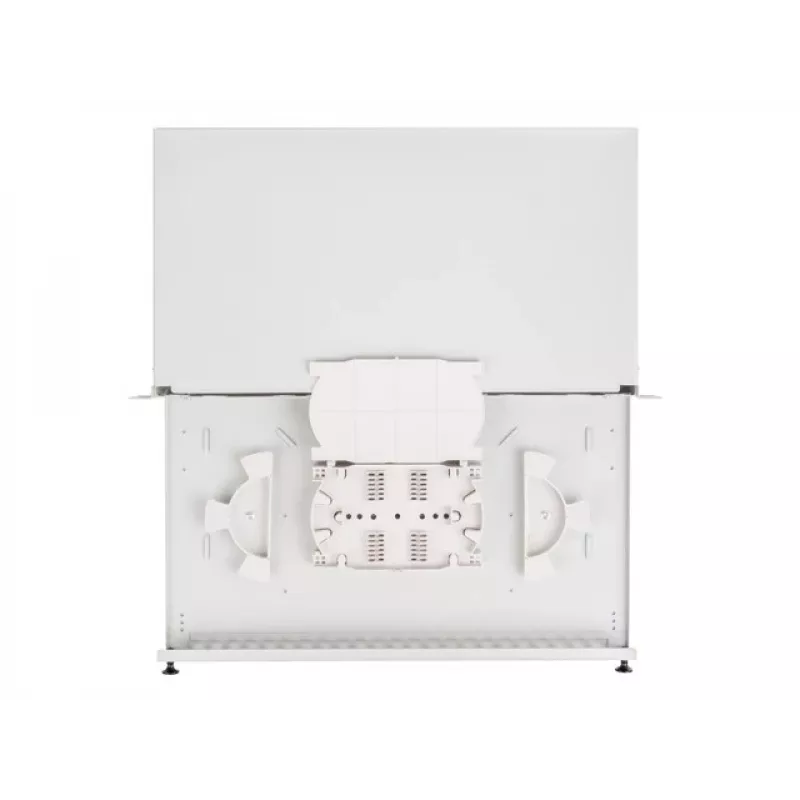

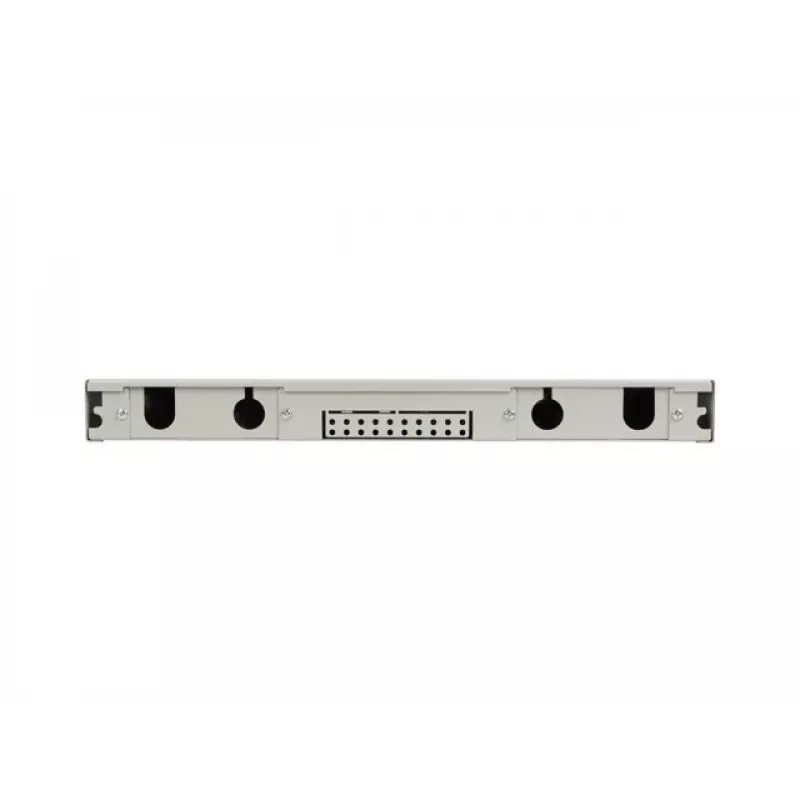

• Drawer: pull-out sliding drawer with rear panel providing 5 cable entries
• Color: Grey

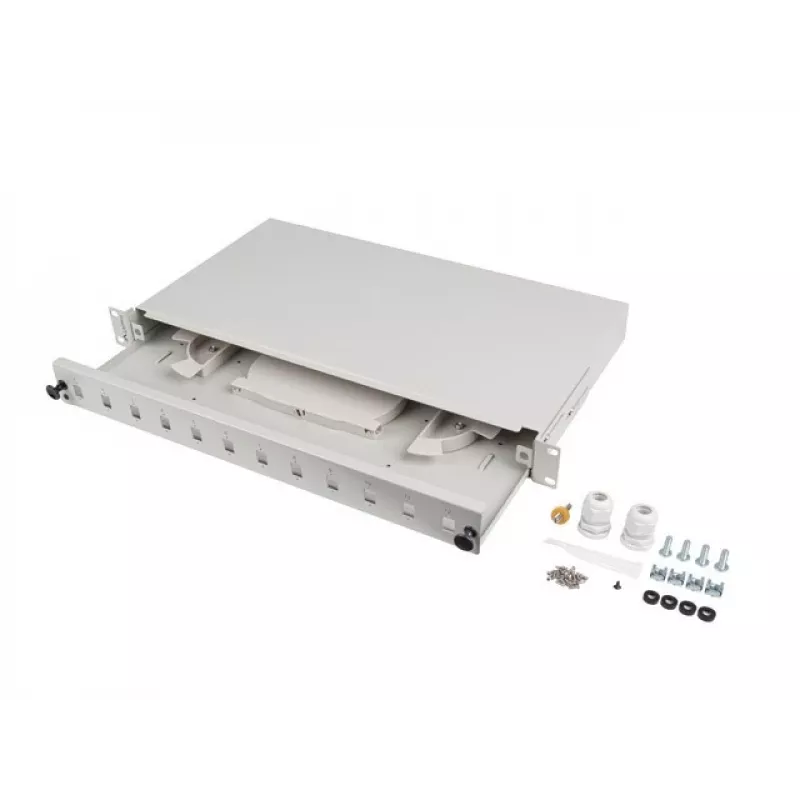

• Includes mounting accessories: glands, cable ties, screws

How to use

Mount the patch panel into a standard 19" rack using the adjustable rack ears and supplied screws. Secure the rack ears to match the cabinet depth, then push the unit into the rack and fasten it. Route fiber cables through the five cable entry points at the rear of the drawer, secure adapters to the front panel using the provided screw holes and connect fiber connectors. Slide the drawer out to access internal connections for installation or maintenance, then slide it back and lock in place.

Recommendations

When installing, ensure fiber bend radius limits are respected and use provided cable glands and ties to prevent strain on connectors. Verify adapter types and port numbering before connecting fibers to avoid mispatching. For environments with high humidity or dust, install the panel inside an enclosed cabinet and perform periodic inspections of connections.
