PATCHBOX Plus+ Kazeta s optickým vláknom C60SMAOS211X1Y, OS2 LC-LC, 1,8 m

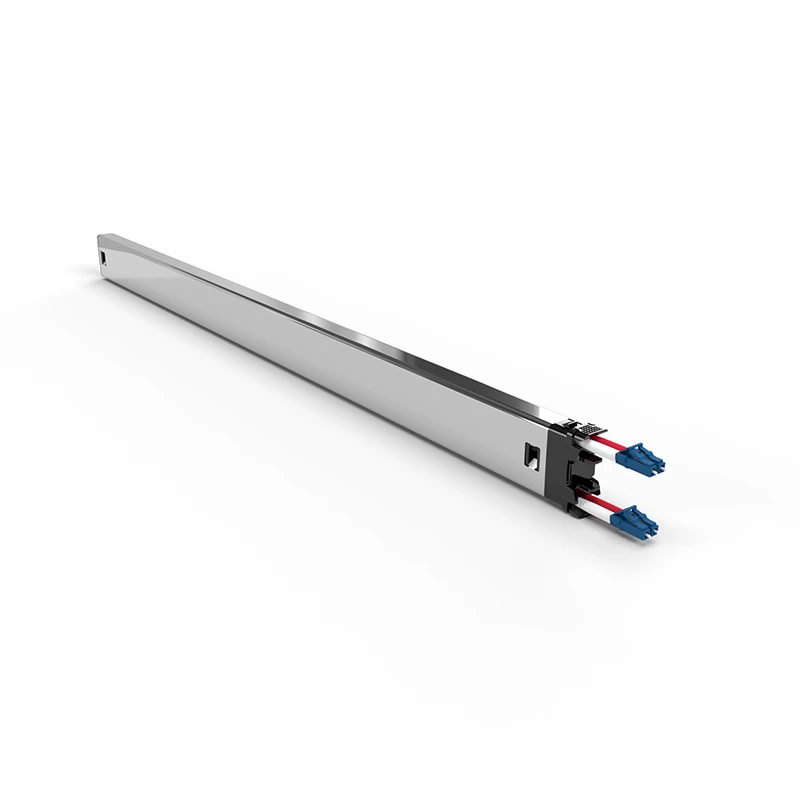

The PATCHBOX Plus+ Fibre Optic Cassette C60SMAOS211X1Y is a modular cassette for the PATCHBOX system, featuring a 1.8 m OS2 singlemode fibre optic cable with LC-LC connectors. It supports full duplex transmission and is designed for use with the appropriate PATCHBOX frame (Plus+ or 365).

Key features

• Modular cassette for PATCHBOX
• OS2 singlemode fibre optic cable
• LC-LC connectors, male/male
• Full duplex
• 10/40/100 Gigabit Ethernet support
• Data transfer rate up to 100 Gbit/s
• Low smoke zero halogen (LSZH) jacket
• Ceramic connector material
• RoHS compliant
• CE certified

Specifications

• Brand: Patchbox
• MPN: C60SMAOS211X1Y
• Product colour: Black
• Ethernet LAN: Yes
• Cable length: 1.8 m
• Cable type: OFC
• Fibre type: OS2
• Connector 1: LC
• Connector 2: LC
• Connector 1 gender: Male
• Connector 2 gender: Male
• Polish type: PC
• Core diameter: 9 µm
• Cladding diameter: 125 µm
• Cable mode structure: Singlemode
• Supported wavelengths: 1310, 1550 nm
• Ethernet interface type: 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
• Data transfer rate: 100 Gbit/s
• Insertion loss: 0.1 dB
• Jacket material: Low smoke zero halogen (LSZH)
• Connector material: Ceramic
• Certification: CE
• Operating temperature: 10 - 45 °C
• Material: Polyoxymethylene (POM), stainless steel
• Quantity per pack: 1 piece(s)
