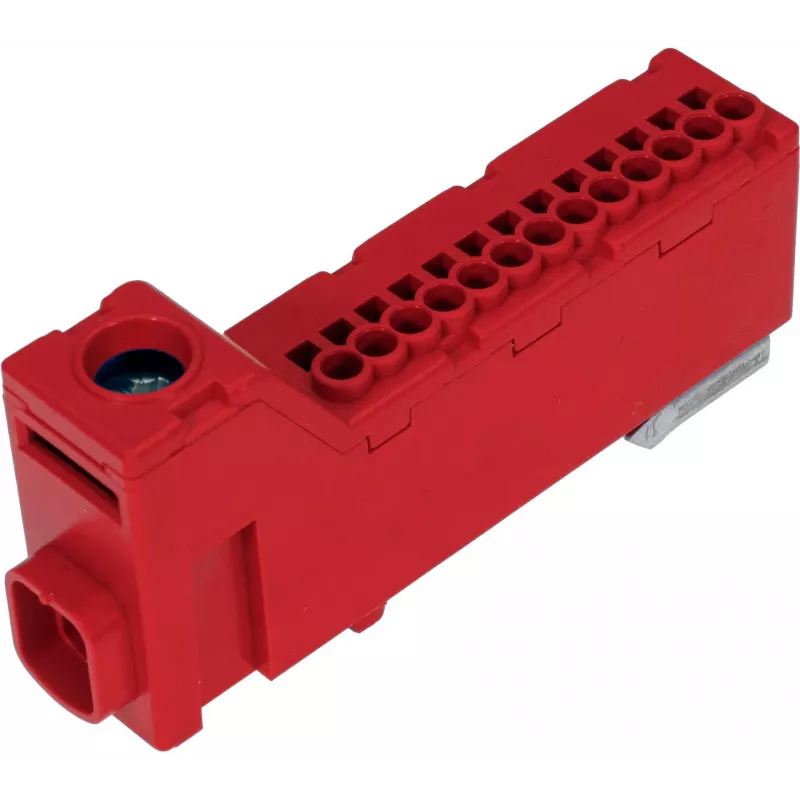

PAWBOL LZB E.4136CZ Bezskrutková radová svorka 12-pólová červená 450V 24A

The PAWBOL LZB E.4136CZ is a high-quality screwless terminal strip designed for reliable and fast electrical connections. With 12 poles and a rated voltage of 450V and current of 24A, it is ideal for a wide range of wiring applications. The push-in connection technology allows for tool-free installation, saving time and effort.

Advantages

Tool-free push-in connection reduces installation time. Compact design with 12 poles saves space. High-quality materials ensure long-lasting performance and safety.

Suitable for

• Electrical installations in distribution boards
• Wiring of control cabinets
• Lighting and power circuits
• DIY and professional electrical projects

Key specifications

• Number of Poles: 12
• Rated Voltage: 450 V
• Rated Current: 24 A
• Conductor Cross-Section (Flexible): 0.5 - 2.5 mm²
• Conductor Cross-Section (Rigid): 1.0 - 2.5 mm²
• Connection Type: Push-in / Screwless
• Housing Material: Polyamide (PA6)
• Contact Material: Copper
• Operating Temperature: -25°C to +85°C
• Mounting Type: Free-hanging / Panel Mount
• Insulation Type: Fully Insulated
• Flammability Rating: UL94 V-2
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with appropriate wire strippers and ensure conductors are fully inserted. Suitable for both flexible and rigid wires within the specified cross-sections.
