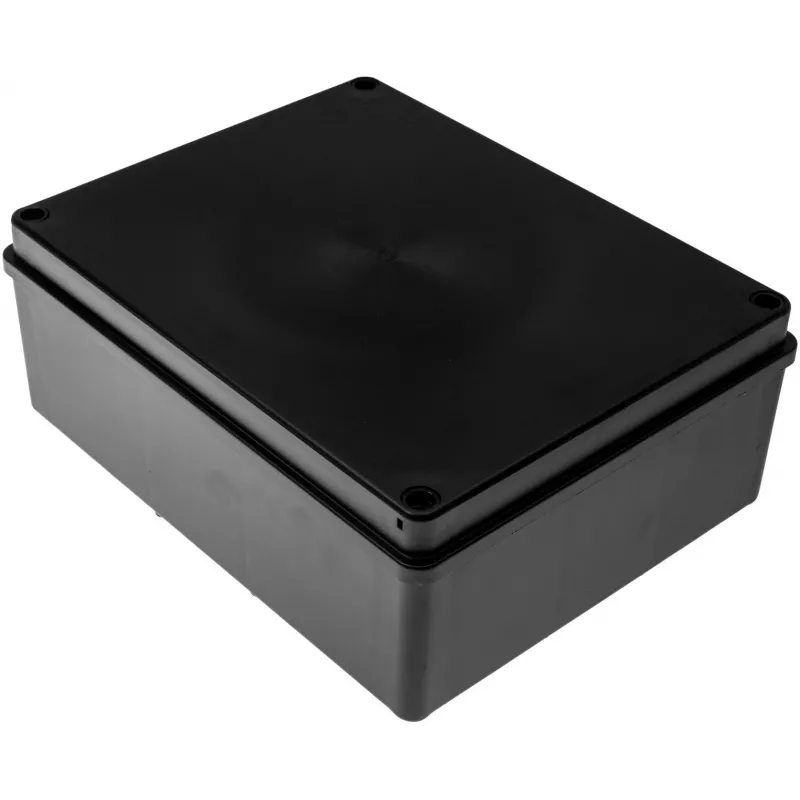

PAWBOL S-BOX 516CZ inštalačná odbočná krabica 240x190x90 mm, bez káblových priechodiek, IP65, čierna

The PAWBOL S-BOX 516CZ is a robust electrical junction box designed for demanding outdoor and industrial environments. With IP65 ingress protection and IK08 impact resistance, it ensures reliable performance in harsh conditions. The box features a screw-on lid and user-drillable entries for cable glands (not included), offering flexibility for various installation needs.

Advantages

High-impact thermoplastic construction provides excellent durability and UV resistance. The self-extinguishing material (UL94-V2 equivalent) enhances safety. Integrated internal bosses allow for mounting plates or DIN rails, simplifying internal component installation.

Suitable for

• Outdoor electrical connections
• Industrial control systems
• Telecommunications and network enclosures
• Harsh environment applications

Key specifications

• Dimensions (L x W x H): 240 x 190 x 90 mm
• Ingress Protection: IP65
• Impact Resistance: IK08
• Material: High-impact thermoplastic, halogen-free
• Colour: Black
• Operating Temperature: -25°C to +70°C
• Certifications: CE, RoHS compliant

Recommendations

For complete installation, select appropriate cable glands (not included) to maintain IP65 rating. Suitable for surface mounting in outdoor or industrial settings.
