PAWBOL A.0035 povrchová hermetická rozvodná krabica PG16, IP67 (5x4mm²), sivá

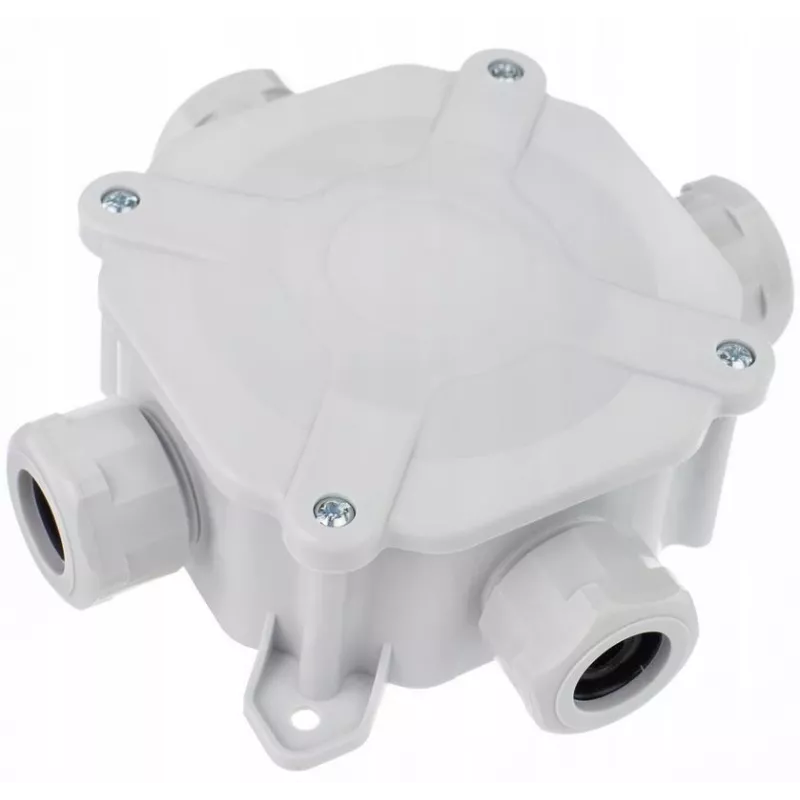

The PAWBOL A.0035 is a high-quality surface-mounted hermetic junction box designed for demanding electrical installations. With an IP67 rating, it offers complete protection against dust and temporary immersion in water, making it ideal for outdoor, industrial, and harsh environments. The box features a pre-threaded PG16 cable entry and includes a 5-pole internal terminal block for secure connections.

Advantages

This junction box provides reliable and safe electrical connections in wet or dusty conditions. Its robust polypropylene construction ensures durability and resistance to UV radiation. The screw-on lid with EPDM gasket guarantees a tight seal, while the integrated terminal block simplifies wiring without additional accessories.

Suitable for

• Outdoor lighting and power installations
• Industrial automation and control systems
• Telecommunications and network infrastructure
• Agricultural and horticultural electrical systems
• Marine and offshore applications

Key specifications

• Product Type: Electrical Junction Box
• Mounting Type: Surface-mounted
• Ingress Protection: IP67
• Cable Entry: Pre-threaded PG16
• Number of Cable Entries: 7 (4x side, 2x end, 1x bottom)

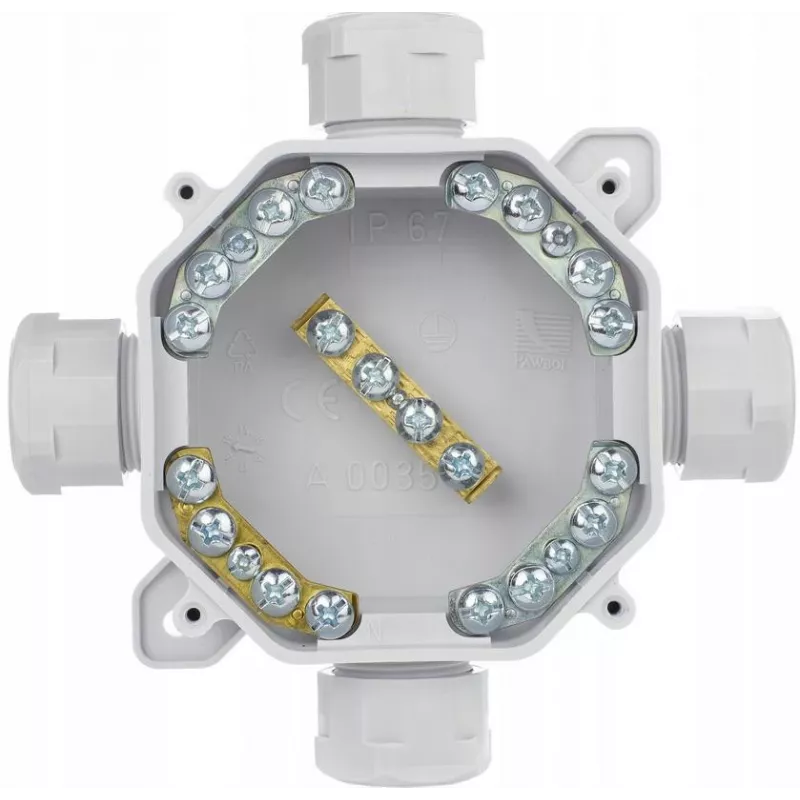

• Internal Terminal Block: Yes, 5-pole
• Max Conductor Cross-section: 4 mm²
• Material: Polypropylene (PP)
• Colour: Grey
• Rated Voltage: 400 V AC
• Rated Current: 24 A
• Operating Temperature: -25°C to +60°C
• Impact Resistance: IK07
• Halogen-Free: Yes
• UV Resistance: Yes
• Lid Fastening: Screw-on
• Gasket Material: EPDM
• Certifications: CE

Recommendations

For optimal performance, ensure the cable gland is properly tightened and the lid screws are evenly torqued. This box is suitable for use with cables up to 4 mm² cross-section. Always follow local electrical codes and regulations during installation.
