PC skriňa DeepCool CH260 Micro Tower čierna — Micro-ATX/Mini-ITX, tvrdené sklo, USB-C, max. GPU 413 mm

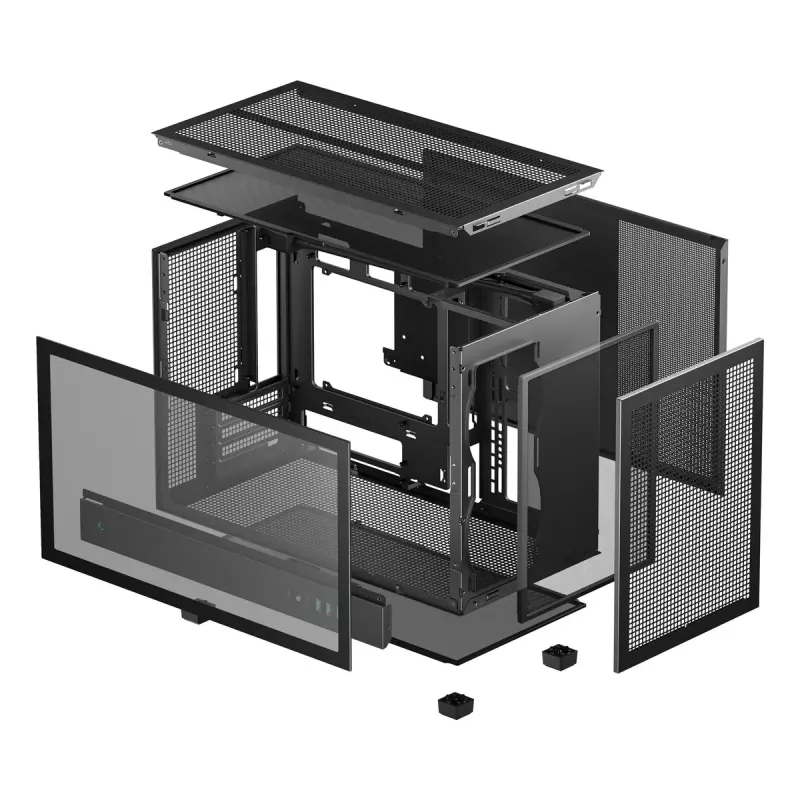

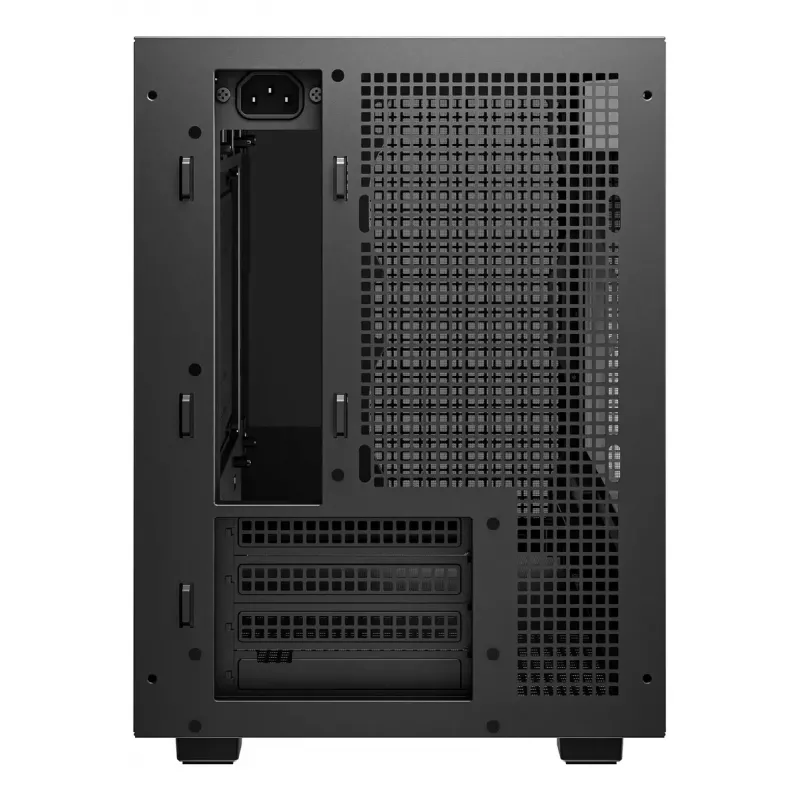

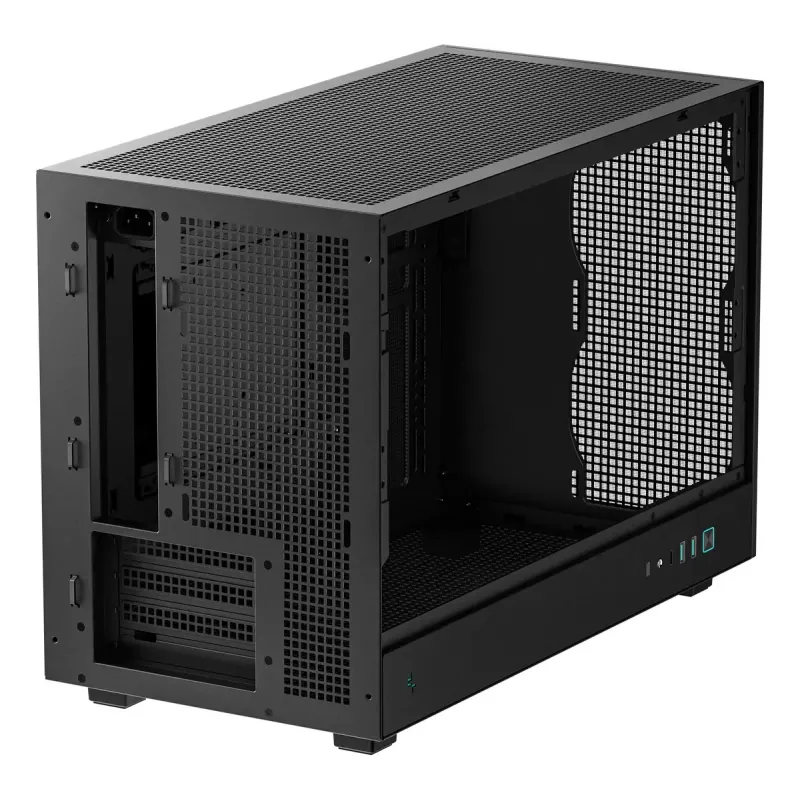

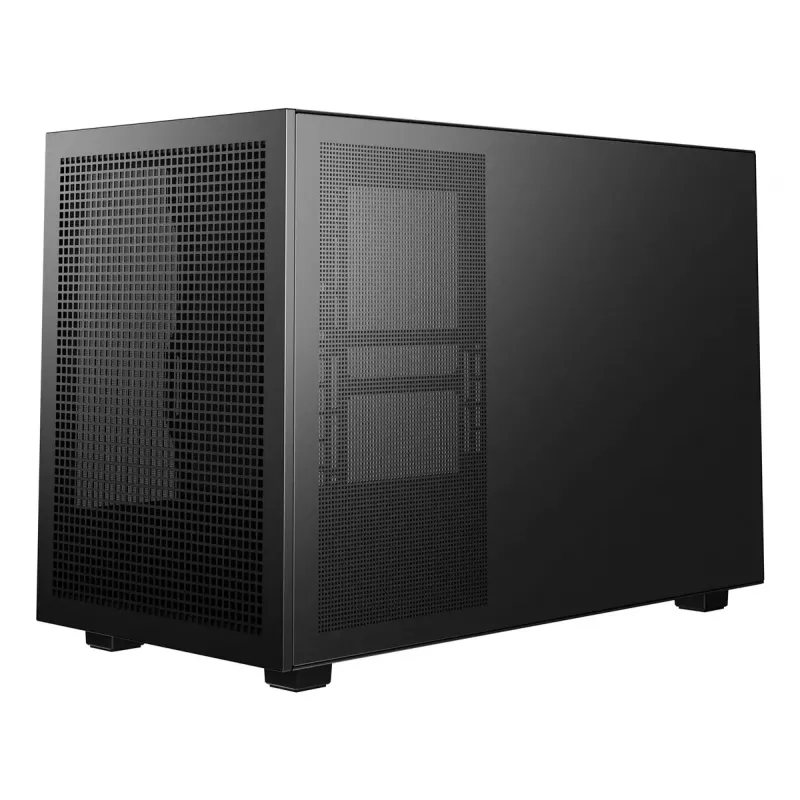

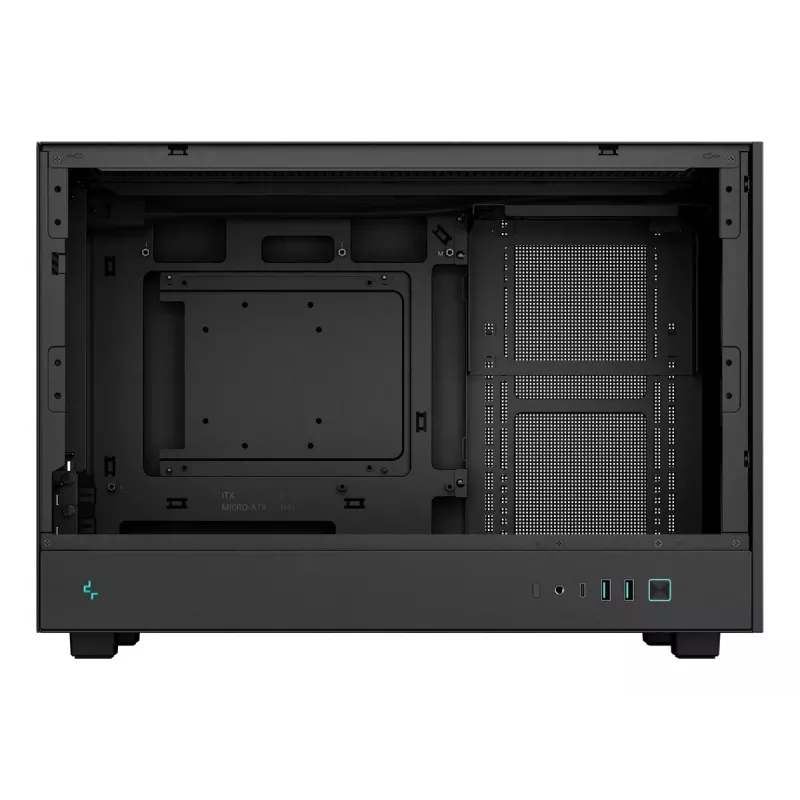

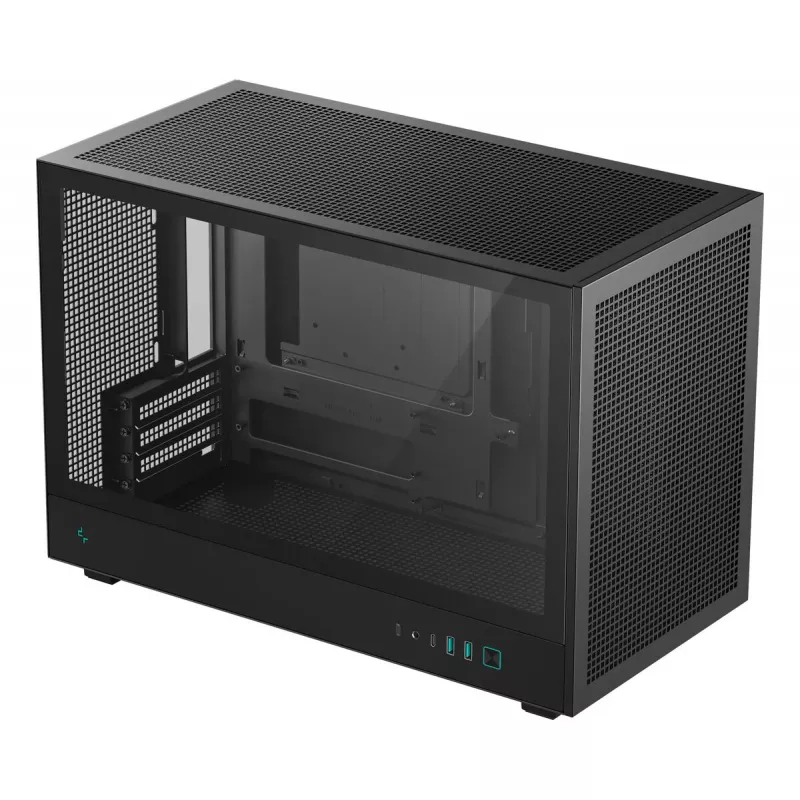

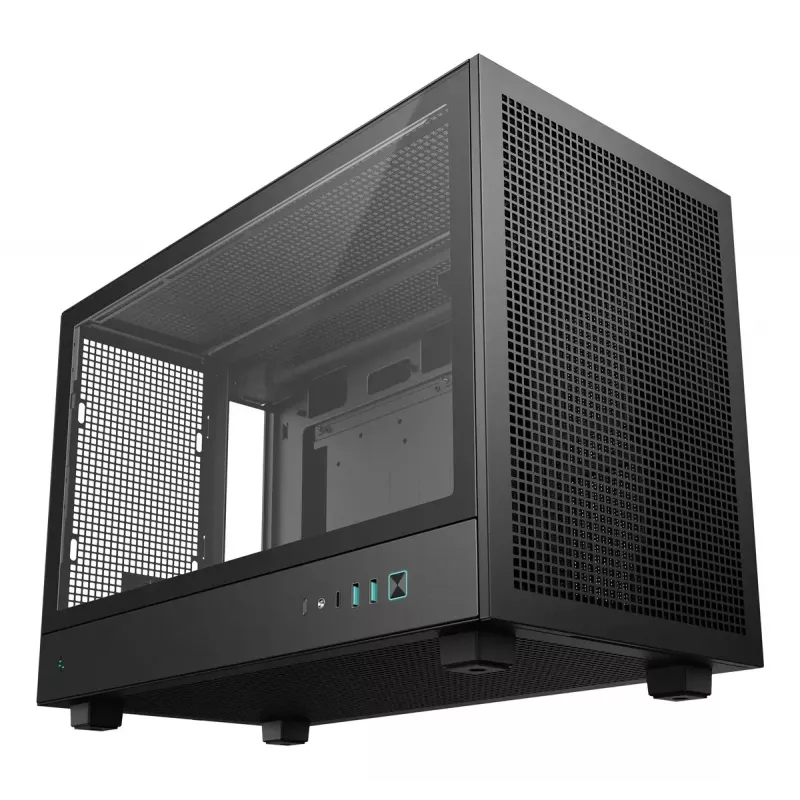

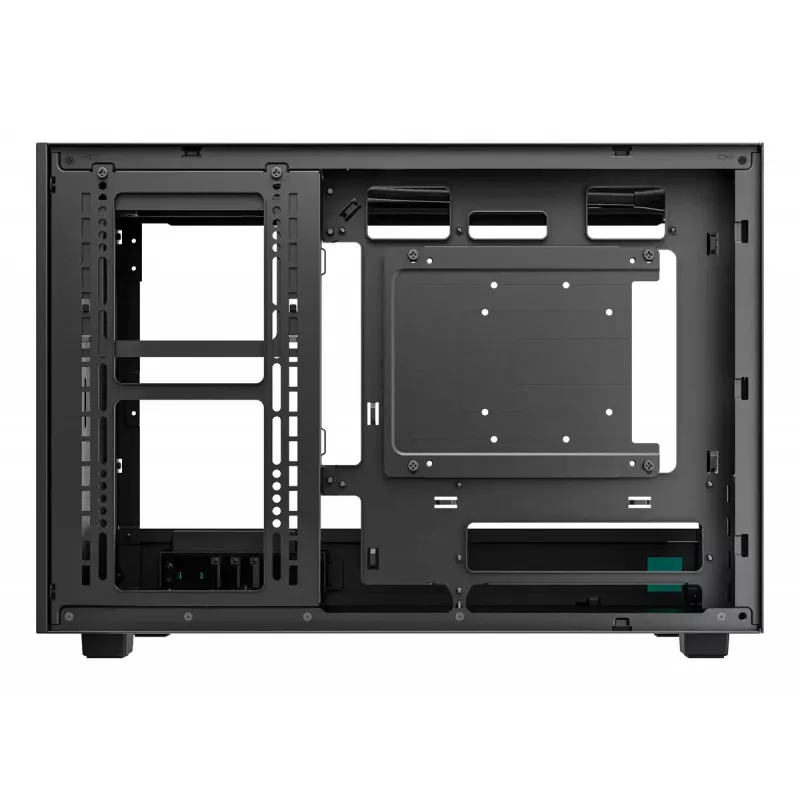

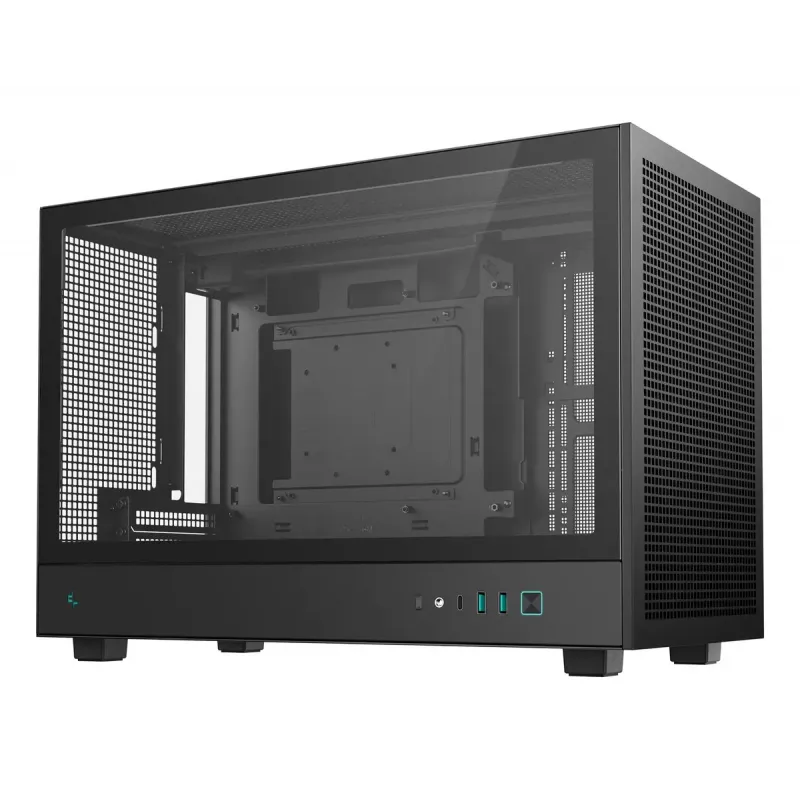

The DeepCool CH260 is a micro-form-factor PC case that expands on the CH160 design to accommodate M-ATX motherboards while retaining strong airflow thanks to full steel mesh panels. It features a tempered glass side panel, perforated top and front panels with optional PIXEL rubber accents, and a widened rear clearance of 29.6 mm to support motherboards with larger rear connectors.

Advantages

The CH260 offers compact external dimensions with room for full-size components, supporting GPUs up to 388 mm with front fans installed or up to 413 mm without front fans. It accepts an ATX PS2 power supply using a removable mounting bracket to simplify cable routing. Extensive mesh ventilation and support for up to six 120 mm fans promote effective airflow, and the case can house a 360 mm AIO radiator on top or a CPU air cooler up to 174 mm tall.

Key specifications

• Form factor: Micro ATX compatible
• Side panel: Tempered glass

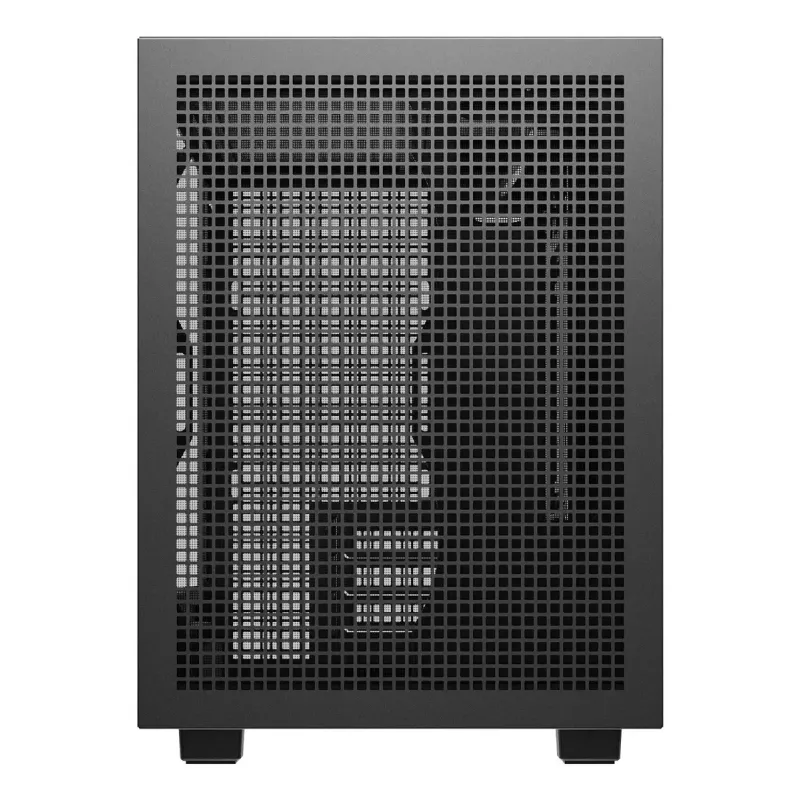

• Front/top panels: Full steel mesh
• Rear clearance: 29.6 mm for rear connectors
• GPU clearance: Up to 388 mm (413 mm without front fans)
• PSU: Supports ATX PS2 with removable bracket
• Cooling: Up to six 120 mm fan positions
• Radiator support: Up to 360 mm top AIO
• CPU cooler height: Up to 174 mm

How to use

Install an M-ATX motherboard on the provided standoffs and route power and data cables through the available openings. Fit the power supply using the removable bracket to optimize internal space and cable management. Mount front, top and rear fans as needed — the perforated mesh panels allow for multiple 120 mm fan positions. When installing a long GPU, check front fan placement and remove front fans if longer clearance (up to 413 mm) is required. For liquid cooling, install a 360 mm AIO radiator on the top mounting points; for air cooling, ensure the CPU cooler does not exceed 174 mm in height.

Recommendations

For best cooling performance, combine mesh front and top panels with multiple 120 mm intake and exhaust fans and use the removable PSU bracket to improve cable routing and internal airflow.
