PC skriňa THERMALTAKE Core P3 TG Pro Midi Tower čierna — ATX/EATX…

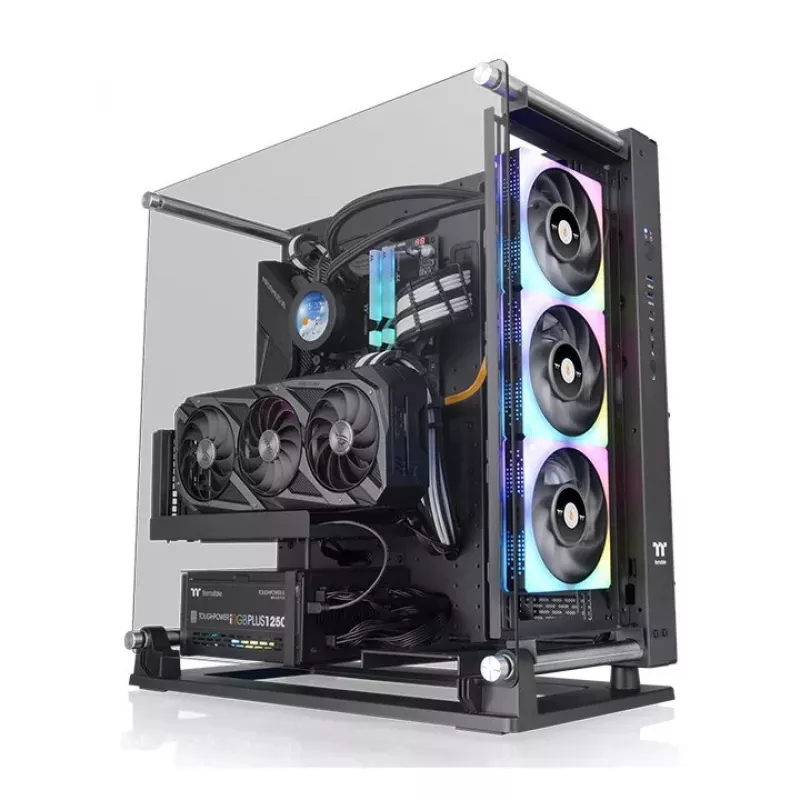

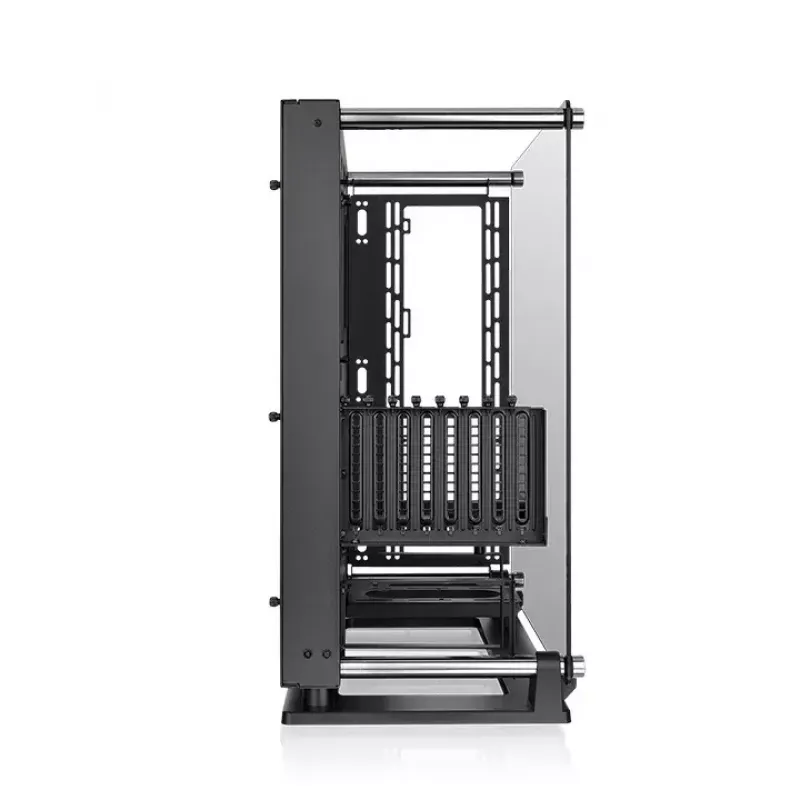

Core P3 TG Pro is an open-frame PC chassis from the Core P series designed for advanced hardware and flexible cooling configurations. This upgraded version adds an interchangeable fan bracket, updated front I/O including USB Type-C, a redesigned recessed compartment on the motherboard's right side for easier GPU installation, rotational PCI‑E slots and a modular layout that supports multiple orientations and display options. The tempered glass panel provides clear visibility of internal components while the redesigned base improves overall stability.

Advantages

The revised motherboard-side compartment simplifies installation of large graphics cards and enables simultaneous use of high-end GPUs and advanced cooling. An extra fan bracket can be mounted at the front or on top to accept three 120/140 mm fans, a 360/420 mm radiator or a distro plate, giving flexibility for AIO or custom liquid cooling. Rotational PCI‑E slots and an included GPU holder allow vertical or horizontal GPU display and prevent GPU sag. The fully modular, dismantlable design and three-way placement (wall-mounted, vertical, horizontal) support extensive customization and easy access for modifications.

Key specifications

• Motherboard support: up to E-ATX (12" x 10.5")
• GPU support: up to 450 mm (two-way placement, without reservoir)
• CPU cooler clearance: up to 180 mm
• PSU length support: up to 200 mm
• Storage: up to four 3.5" HDD or five 2.5" SSD
• Fan/radiator support (additional bracket): three 120/140 mm fans or 360/420 mm radiator or distro plate
• Front I/O: two USB 3.0, one USB 3.2 Gen 2 Type-C
• Side panel: 4 mm tempered glass
• Design features: rotational PCI‑E slots, extra GPU holder, dismantlable modular design

How to use

Choose the desired chassis orientation (wall-mounted, vertical, or horizontal) and assemble the modular panels and brackets as needed. Install the motherboard (up to E-ATX), fit the PSU and CPU cooler within the specified clearances, and mount GPUs using the rotational PCI‑E slots and the included GPU holder to prevent sag. Mount the additional fan bracket at the front or top when you plan to install three 120/140 mm fans, a 360/420 mm radiator or a distro plate. Route cables and install storage drives according to the provided mounting points; the case supports up to four 3.5" HDD or five 2.5" SSD. Use the front I/O for convenient access to high-speed USB ports.

Recommendations

For optimal cooling and compatibility, verify GPU length and reservoir dimensions before final installation, and choose fan or radiator placement based on your preferred airflow or liquid-loop layout. Use the modular design to plan component placement and 3D-print compatible accessories if needed.
