PCI Express karta DeLOCK 90500

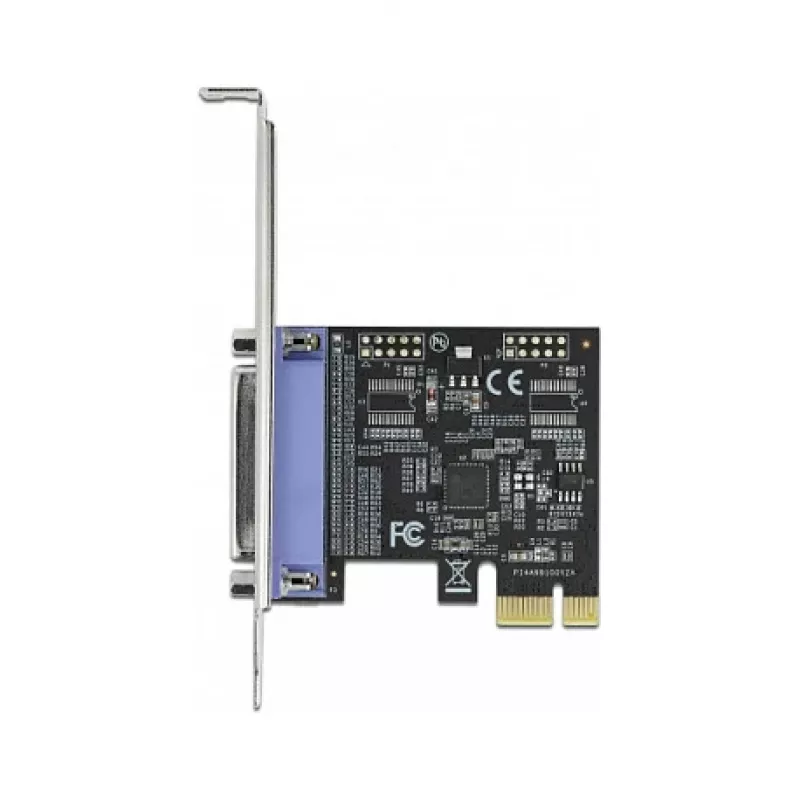

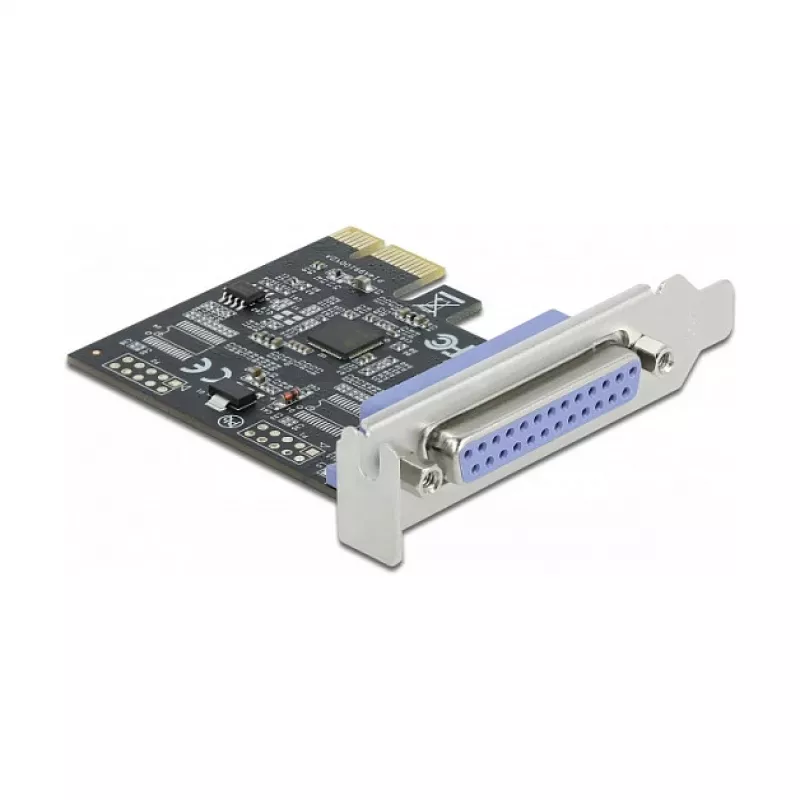

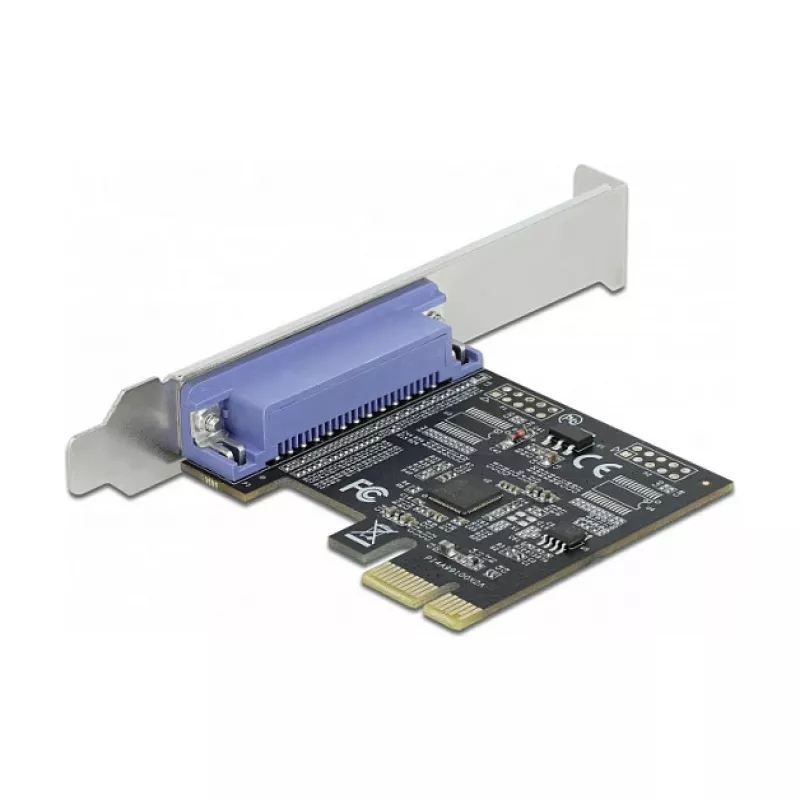

The DeLOCK PCI Express Card 90500 adds one external Parallel IEEE1284 port to a desktop or mini PC, enabling connection of legacy devices such as printers and scanners. The compact card uses a PCIe host interface and includes a low profile bracket for installation in small form factor systems. It is compatible with Windows 10 and Windows 8.1 and measures 54 mm in width and 65.5 mm in depth.

Advantages

This PCI Express card provides a single standard IEEE1284 parallel port for reliable communication with legacy peripherals. The included low profile bracket allows installation in both full-size and mini PCs. Its compact dimensions suit space-constrained systems, while PCIe connectivity ensures direct motherboard integration without external adapters.

Suitable for

Key specifications

How to use

Power off the PC and unplug it from mains. Open the case, insert the PCI Express card into an available PCIe slot on the motherboard and secure it with the bracket screw. If required, replace the standard bracket with the included low profile bracket for mini PCs. Close the case and reconnect power. Install the appropriate drivers on Windows 10 or 8.1 if the operating system does not automatically recognise the device. After driver installation, connect the parallel peripheral to the external IEEE1284 port and configure the device in the operating system as needed.

Recommendations

Use a shielded parallel cable of appropriate length to reduce interference. For reliable operation, install the latest drivers provided by the system or device manufacturer and ensure the PCIe slot is compatible with the card before installation.
