PCI Express x1 karta DeLOCK 90046

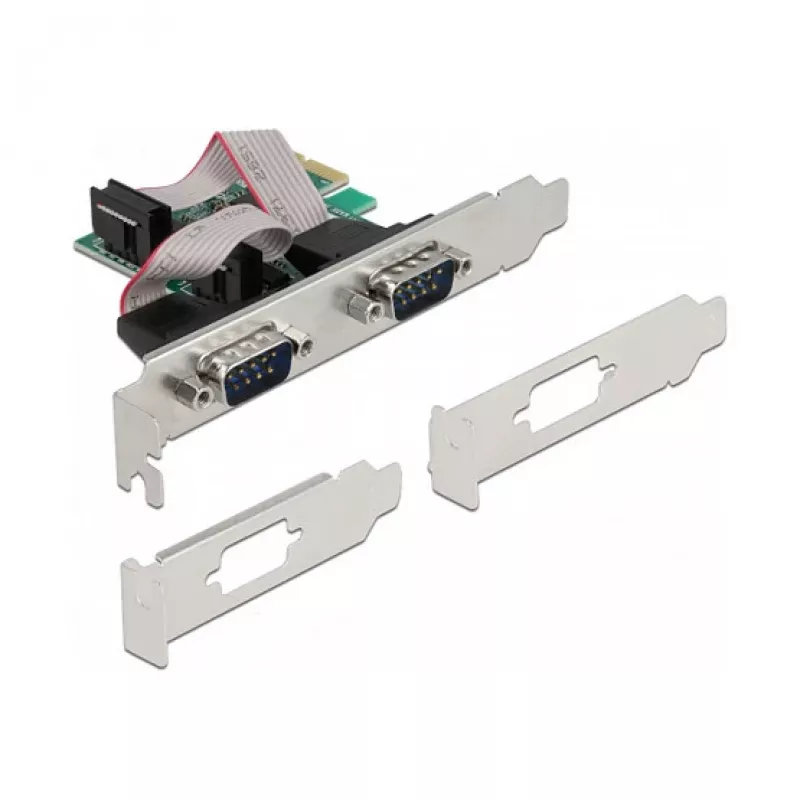

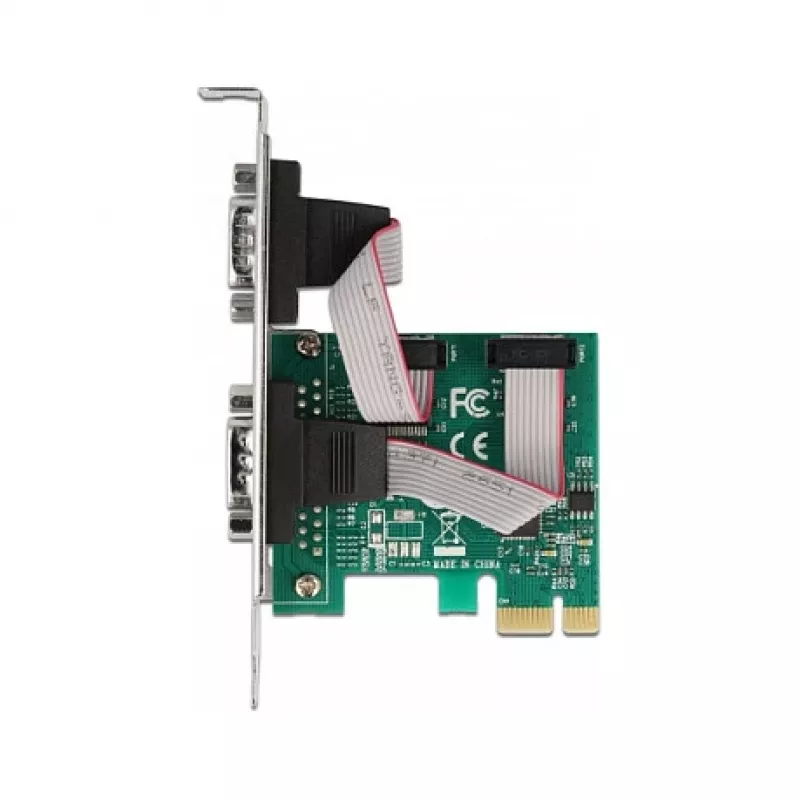

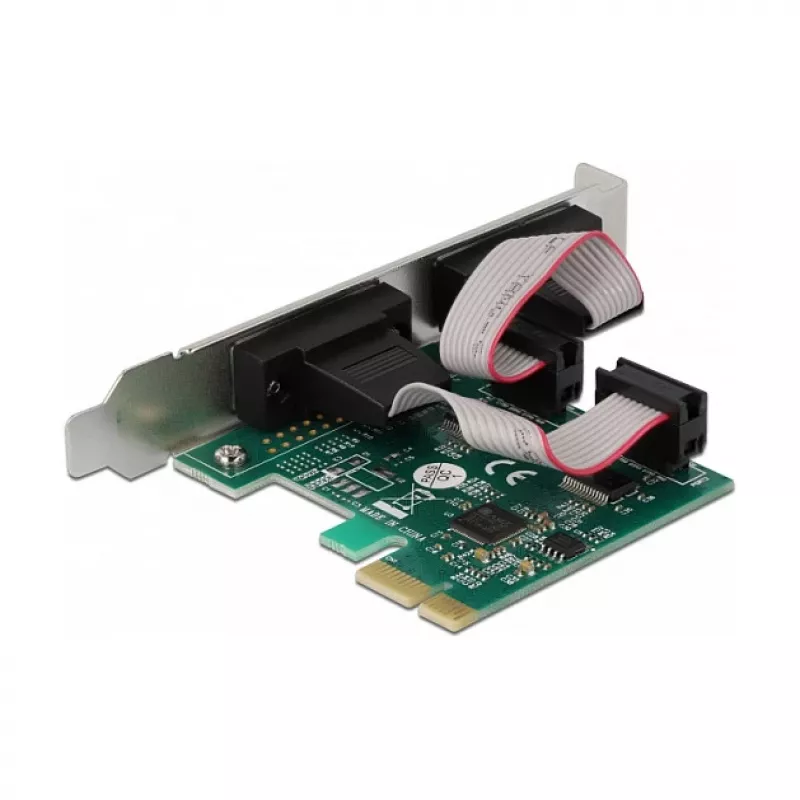

The DeLOCK PCI Express x1 Card 90046 adds two external RS-232 serial ports to a PC, allowing connection of devices such as scanners, protocol converters and IoT devices. The card uses a PCIe 2.0 x1 interface and includes a low profile bracket for installation in small form factor systems.

Advantages

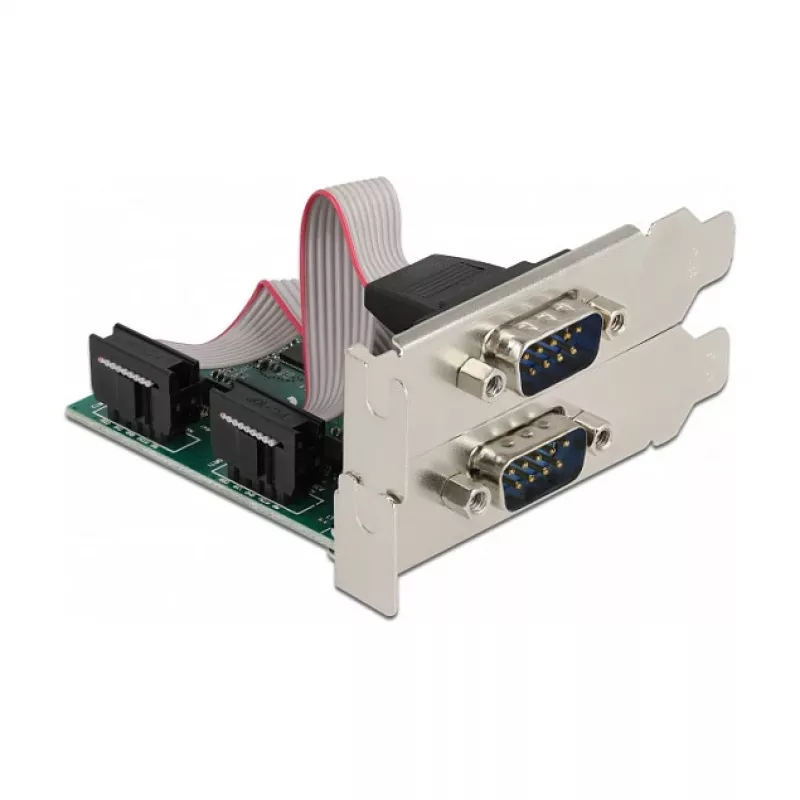

This PCI Express card provides two RS-232 ports with a 256 B FIFO buffer for stable and efficient data handling. It supports a range of data bit lengths (5–9) and data rates up to 0.0009216 Gbit/s, ensuring compatibility with legacy serial equipment. The supplied low profile bracket allows installation in Mini-PCs while the standard bracket fits regular desktop cases.

Suitable for

Key specifications

How to use

Install the card into an available PCIe x1 slot on the motherboard or into a larger PCIe slot if necessary. Choose and attach the appropriate bracket (standard or low profile) to fit the PC case. Secure the card with a retaining screw, boot the system and install any required drivers for your operating system (supported: Windows 10, 8, 8.1). Connect RS-232 serial devices to the external ports using standard serial cables and configure serial communication parameters (baud rate, parity, data bits, stop bits) in the device manager or your application.

Recommendations

Use shielded serial cables and avoid routing them alongside high-power cables to minimize interference; verify COM port assignments after driver installation to ensure correct device mapping.
