PCI Express x4 karta DeLOCK 89035 USB 3.2 Gen 2x2 Type-C 20 Gbit/s

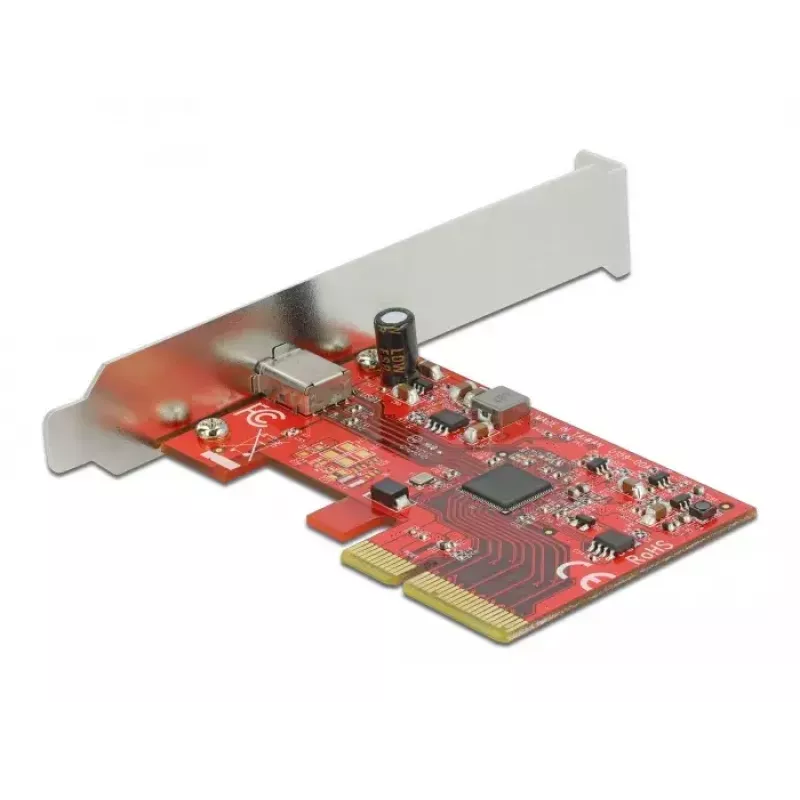

The DeLOCK PCI Express x4 Card provides one external SuperSpeed USB 3.2 Gen 2x2 Type-C port with a maximum data transfer rate of 20 Gbps. Designed as a low-profile expansion card, it connects to a PCIe slot and supports a range of USB devices such as docking stations, card readers and external enclosures. The card is compatible with Windows 10 and Windows 8.1 and supplies up to 3 A for connected devices.

Advantages

The card delivers SuperSpeed USB performance up to 20 Gbps via a USB-C port and fits into a PCI Express x4 slot in a low-profile form factor. It supports a range of external USB devices and provides up to 3 A power output for connected peripherals, enabling high-speed data transfers and reliable device operation.

Suitable for

Key specifications

How to use

Install the card into an available PCI Express x4 (or compatible x8/x16) slot on the motherboard, secure it with the bracket, and connect the external USB-C cable or device to the female Type-C port. Install any required drivers on Windows 10 or Windows 8.1 if prompted. Once installed, connect compatible USB devices to use high-speed transfers; ensure the device and cable support USB 3.2 Gen 2x2 to achieve the full 20 Gbps rate.

Recommendations

Use certified USB-C cables and compatible devices that support USB 3.2 Gen 2x2 to reach maximum throughput. Verify available PCIe slot bandwidth and system drivers before installation. For compact systems, confirm the low-profile bracket fits the chassis.
