Peerless SA771PU držiak TV/stojan 2,29 m (90 palcov) čierny

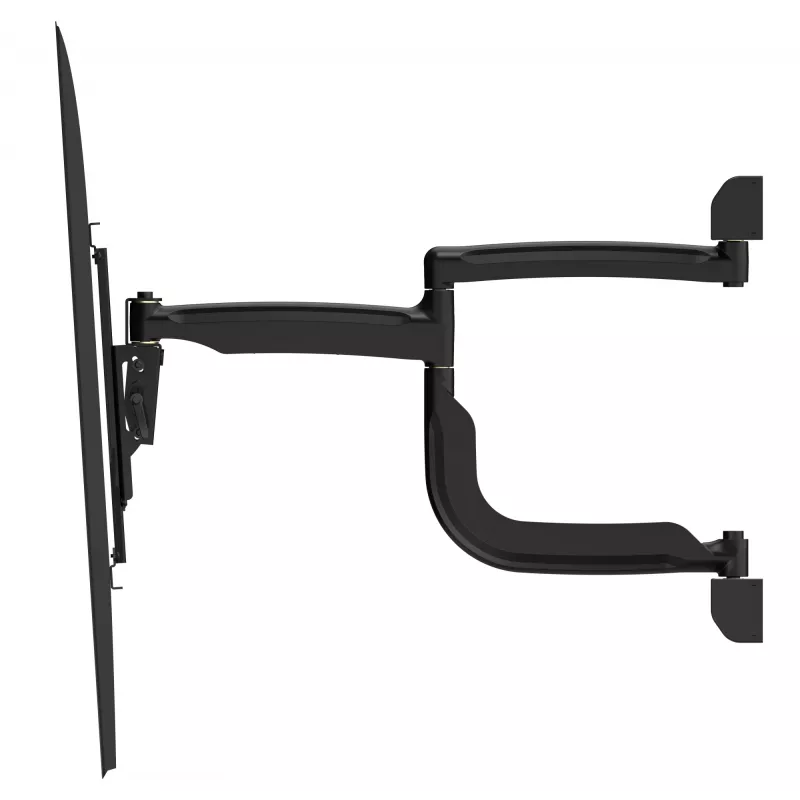

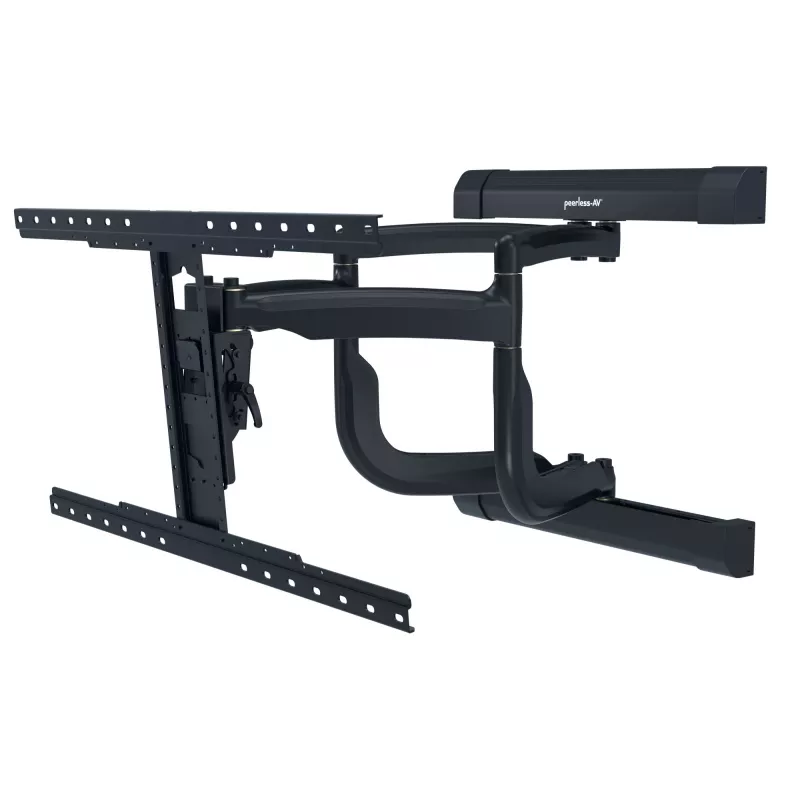

The Peerless SA771PU TV mount is an articulating wall arm designed for large displays. It supports screens from 46" to 90" with a maximum load of 68 kg and fits VESA patterns from 200 x 100 mm up to 800 x 400 mm. The arm extends from 3.1" (79 mm) to 26.6" (676 mm) from the wall, offers vertical adjustment after installation, and includes integrated cable management for a neat setup.

Advantages

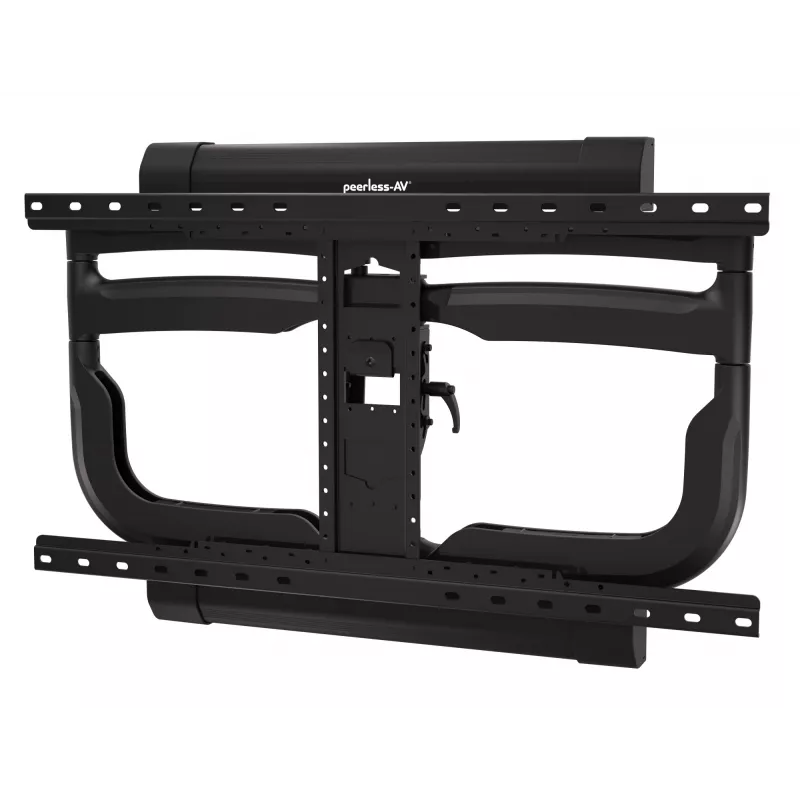

The I-shaped adaptor plate reduces the risk of blocking connections on the back of the display while allowing secure attachment. The Hook-and-Hang™ system enables single-person installation by holding the display in place during mounting. One-Touch™ tilt provides quick vertical tilt adjustment of +15°/-5°, and the articulating arm allows full extension and retraction to position the display at the desired distance from the wall.

Suitable for

• Mounting large TVs and commercial displays (46"–90")
• Rooms where flexible viewing angles and screen extension are needed
• Installations requiring VESA compatibility up to 800 x 400 mm
• Single-person installation situations

Key specifications

• Model: Peerless SA771PU
• Suitable screen size: 46"–90"
• Max load: 68 kg
• VESA compatibility: 200 x 100 mm to 800 x 400 mm
• Tilt range: +15° / -5° (One-Touch™)
• Swivel/tilt range (product data): -75° to 75°
• Mounting distance from wall: 3.1" (79 mm) — 26.6" (676 mm)
• Finish: Black
• Manufacturer code (MPN): SA771PU
• EAN: 735029266624

How to use

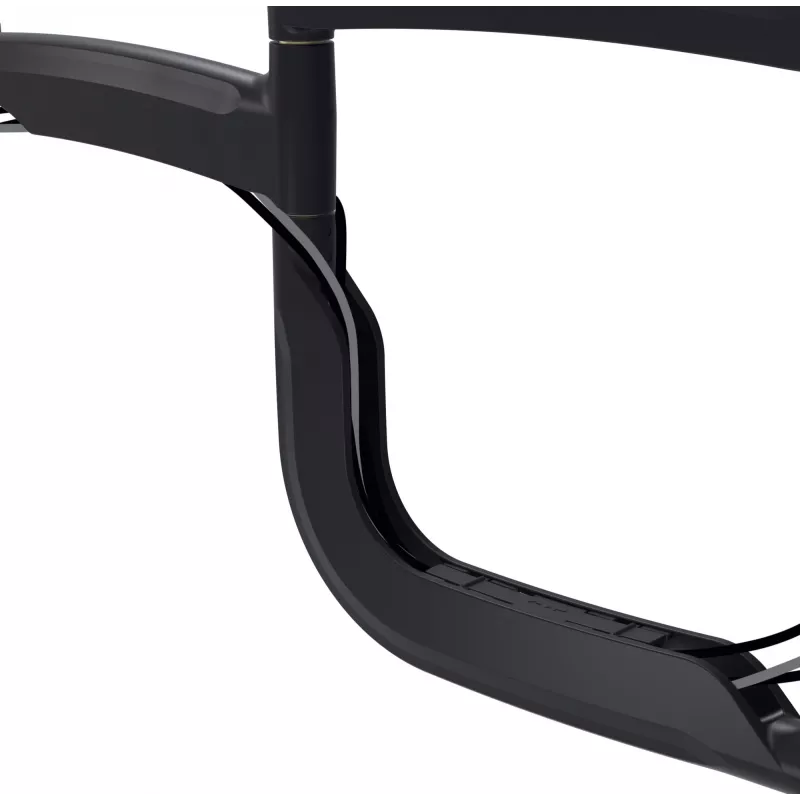

Attach the I-shaped adaptor plate to the display following the VESA pattern, then use the Hook-and-Hang™ feature to hang the screen on the wall arm for hands-free alignment. Adjust vertical level using the post-installation vertical adjustment, set the desired extension of the articulating arm, and fine-tune the viewing angle with One-Touch™ tilt. Route cables through the integrated cable management to conceal and protect them.

Recommendations

For safe installation, verify that wall structure and fasteners are rated for the combined weight of the mount and display. Do not exceed the 68 kg load capacity and confirm VESA compatibility before mounting.
