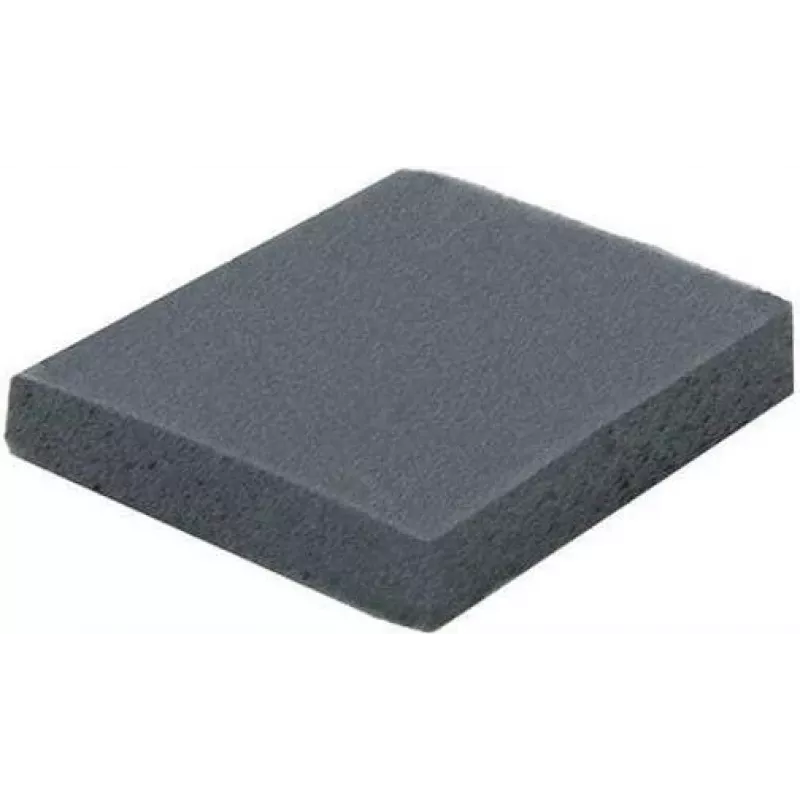

Phobya Ultra Thermal Pad 5W/mK 15x15x3mm (1 kus) 17077

Efficient heat transfer between components and heatsinks is critical for stable system performance, yet uneven surfaces and microscopic air gaps can severely impede thermal conduction. The Phobya Ultra Thermal Pad addresses this by providing a soft, compressible interface that conforms to surface irregularities, ensuring optimal contact and heat dissipation.

Who is it for

This pad is ideal for PC enthusiasts, system builders, and technicians who need a reliable thermal interface for CPUs, GPUs, chipsets, VRMs, memory modules, SSDs, and other power components. It is especially useful where traditional thermal paste is impractical or where a reusable, non-adhesive solution is preferred.

Main features

• High thermal conductivity of 5 W/mK for effective heat transfer.
• Pre-cut dimensions: 15 mm x 15 mm x 3 mm, suitable for a wide range of components.
• Electrically non-conductive, eliminating the risk of short circuits.
• Non-adhesive, pressure-fit design allows easy repositioning and reusability if undamaged.
• Silicone-based material offers excellent conformability and durability.
• Wide operating temperature range from -40°C to 200°C.

Specifications

• Product Type: Thermal Pad
• Series: Ultra
• Thermal Conductivity: 5 W/mK
• Length: 15 mm
• Width: 15 mm
• Thickness: 3 mm
• Quantity per Pack: 1 Piece
• Colour: Blue
• Material: Silicone-based
• Electrical Conductivity: Non-conductive
• Operating Temperature: -40°C to 200°C
• Density: ~2.5 g/cm³

Tips

For best results, ensure both contact surfaces are clean and dry before application. Cut the pad to size if necessary, then press firmly to achieve good contact. The pad can be reused if it remains intact and free of debris.
