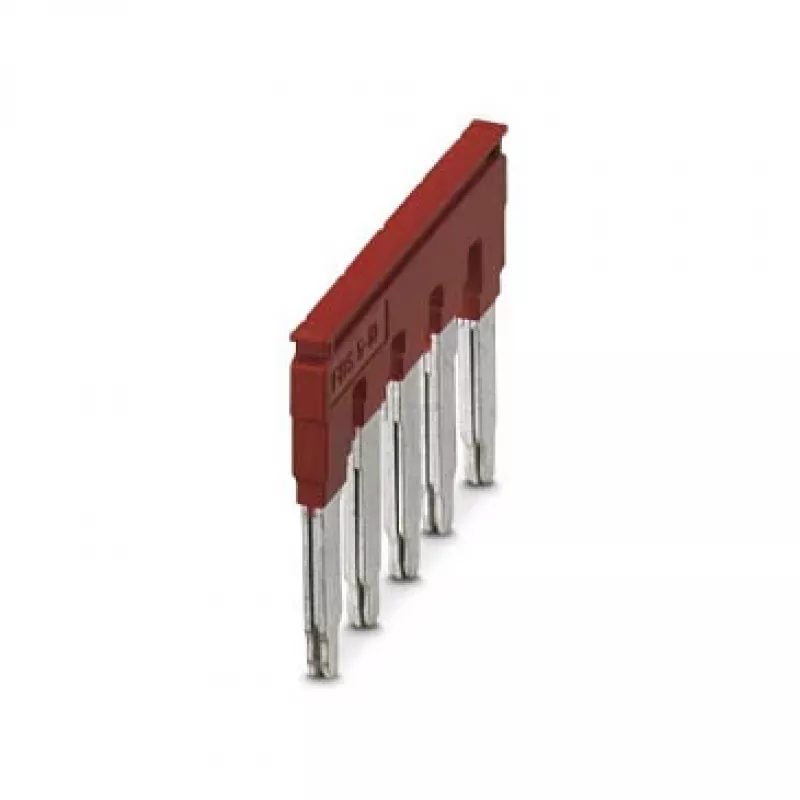

Phoenix Contact FBS 5-10 prepojka, 5-pólová, rozteč 10 mm, červená 3005948

The Phoenix Contact FBS 5-10 plug-in bridge stands out with its 5-position design and 10 mm pitch, enabling efficient potential distribution across multiple terminal blocks in a single step. Its red polyamide insulation provides clear visual identification in crowded control cabinets.

Highlights

• 5-position bridge for UT, ST, and PT series terminal blocks
• 10 mm pitch matches standard terminal spacing
• Rated for 41 A current and 1000 V voltage
• Robust polyamide insulation with UL 94 V0 flammability rating
• Wide operating temperature range from -60 °C to 105 °C

In daily use

Installation is straightforward: align the bridge with the terminal block slots and press into place. The copper conductor material ensures reliable conductivity, while the plug-in design allows quick reconfiguration without tools. This bridge is suitable for potential distribution in industrial control systems.

Full specifications

• Product Type: Plug-in Bridge
• Number of Positions: 5
• Pitch: 10 mm
• Colour: Red
• Insulation Material: Polyamide (PA)
• Conductor Material: Copper
• Rated Current: 41 A
• Rated Voltage: 1000 V
• Flammability Rating: UL 94 V0
• Operating Temperature: -60 °C to 105 °C
• Compatibility: Phoenix Contact UT, ST, PT series terminal blocks
• Mounting Type: Plug-in
• Pollution Degree: 3
• Overvoltage Category: III
• Insulation Resistance: > 1 MΩ
• Series: FBS
• Application: Potential Distribution

Final note

The FBS 5-10 is a reliable choice for bridging multiple terminal blocks in demanding industrial environments.
