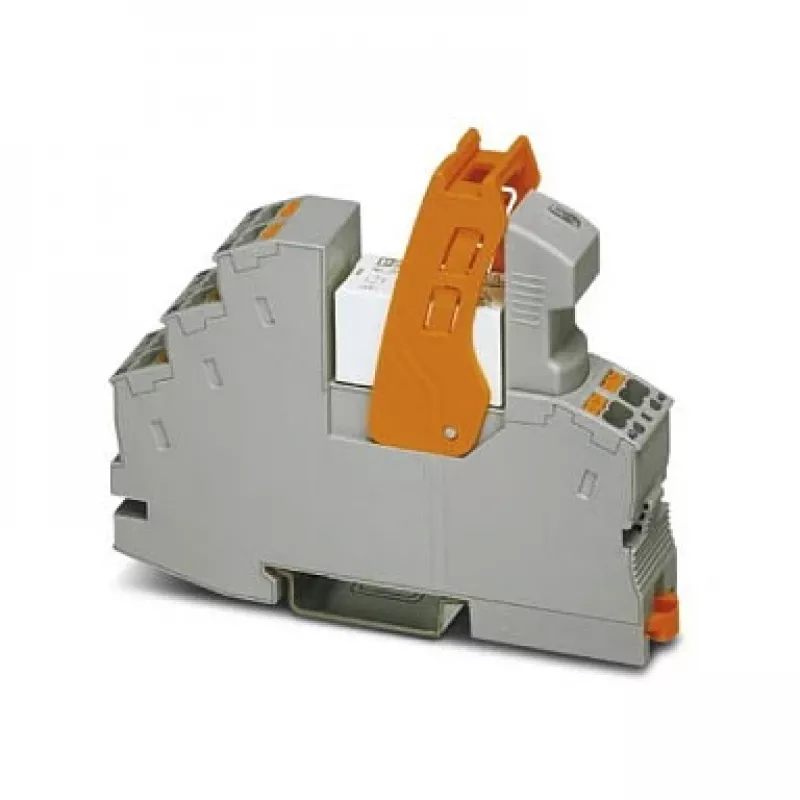

Phoenix Contact RIF-1-RPT-LV-230AC/2X21 modul rozhrania relé, 2PDT, 230 V AC, Push-in, DIN lišta

The Phoenix Contact RIF-1-RPT-LV-230AC/2X21 is a compact interface relay module that brings reliable switching to control cabinets and industrial automation. With its slim 16mm width and push-in connection technology, it simplifies wiring while offering robust performance for demanding applications.

Highlights

• 2 changeover contacts (2PDT) with power contact rating up to 8 A
• 230 V AC coil voltage with low power consumption of only 2.5 VA
• Push-in connection technology for fast, tool-free wiring
• Green LED status indicator and lockable test button for easy commissioning
• DIN rail mounting for space-saving installation
• Wide operating temperature range from -40 °C to 70 °C

In daily use

This relay module is ideal for isolating control signals, switching loads, and interfacing between different voltage levels. The integrated test button allows manual actuation during setup, while the LED confirms coil status at a glance. Its compact design enables high-density mounting on DIN rails, saving valuable cabinet space.

Full specifications

• Product Type: Interface Relay Module
• Input Voltage: 230 V AC
• Number of Contacts: 2 changeover contacts (2PDT)
• Contact Type: Power contacts
• Connection Technology: Push-in connection
• Rated Switching Voltage (max): 250 V AC/DC
• Rated Switching Current (max): 8 A (AC-1)
• Minimum Switching Power: 100 mW (at 10 V / 10 mA)
• Coil Power Consumption: 2.5 VA (at 230 V AC)
• Mounting Type: DIN rail
• Operating Temperature: -40 °C to 70 °C
• Protection Class: IP20
• Electrical Life: 100,000 cycles (at 8 A, 250 V AC, resistive load)
• Mechanical Life: 20 million cycles
• Status Indicator: Green LED
• Test Button: Yes (lockable)
• Housing Material: Polyamide (PA)
• Approvals: UL, cUL, GL, EAC, VDE

Final note

With its robust design, easy wiring, and comprehensive approvals, the Phoenix Contact RIF-1-RPT-LV-230AC/2X21 is a dependable choice for control systems requiring reliable switching and isolation.
