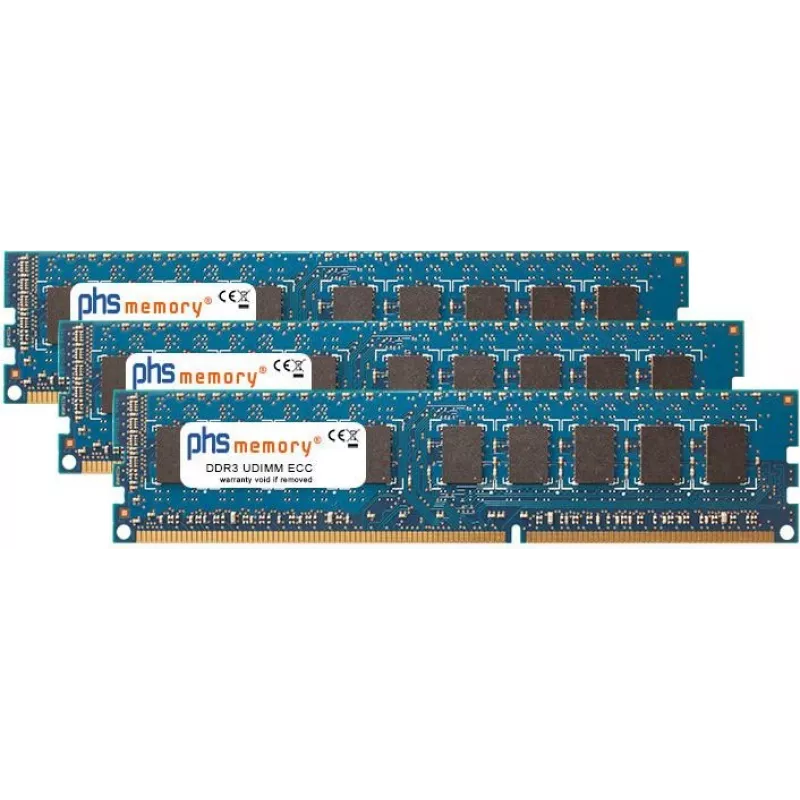

PHS-memory 24GB (3x8GB) DDR3 ECC UDIMM 1333MHz PC3-10600E RAM Kit pre Supermicro X8DTU-6TF+-LR SP580300

This 24GB DDR3 ECC UDIMM memory kit delivers triple-channel performance for Supermicro X8DTU-6TF+-LR servers and workstations. With three 8GB modules running at 1333MHz, it provides the bandwidth and error correction needed for demanding virtualisation, database, and compute tasks.

Advantages

Error-correcting code (ECC) detects and corrects single-bit memory errors, preventing data corruption and system crashes in critical environments. The unbuffered design reduces latency compared to registered modules, while the triple-channel configuration maximises throughput on compatible platforms. Each module operates at the standard 1.5V, ensuring compatibility with a wide range of server boards.

Suitable for

• Supermicro X8DTU-6TF+-LR server motherboards
• Dual-socket Intel Xeon 5500/5600 series systems
• Virtualisation hosts running VMware, Hyper-V, or KVM
• Database servers requiring high data integrity
• Workstations for CAD, rendering, or scientific computing

Key specifications

• Total capacity: 24GB (3 x 8GB modules)
• Memory type: DDR3 UDIMM (unbuffered)
• ECC: Yes
• Speed: 1333MHz (PC3-10600E)
• Pin count: 240-pin
• Voltage: 1.5V
• Form factor: UDIMM
• Application: Server, Workstation

Recommendations

Before installation, verify that your motherboard supports 8GB ECC UDIMMs and that all memory channels are populated according to the manual. For optimal performance, use identical modules in each channel. This kit is specifically validated for the Supermicro X8DTU-6TF+-LR, but may also work in other boards with similar specifications.
